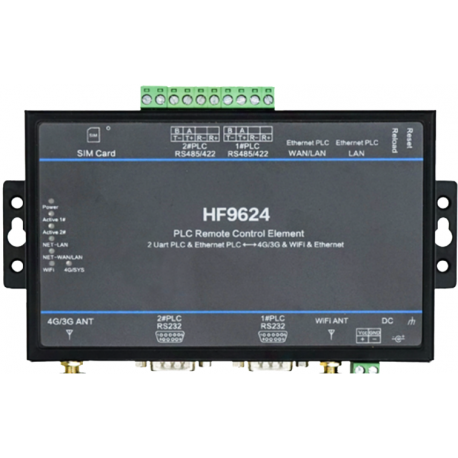

4G PLC For Remote Monitor HF9624

4G PLC For Remote Monitor HF9624

  • ASHF9624
  • Hi-Flying

Basic Frequency

580MHz

Flash

16MB

Operating System

Support Windows 7 / Windows 8 / 10 / Linux

Interface Standard

RS232: DB9 RS485/RS422: 5.08mm connector Support one type of RS232/RS422/RS485 at the same time

Protection

Anti-reverse Power Static: 8KV Contact Discharge, 15KV Air Discharge Surge: Difference-mode 4KV, Common-mode 6KV

Transmit Power

Class 4(33dBm±2dB) for GSM900 Class 1(30dBm±2dB) for DCS1800 Class E2(27dBm±3dB) for GSM900 8-PSK Class E2(26dBm±3dB) for DCS1800 8-PSK Class 3(24dBm+3/-1dB) for CDMA BC0 Class 3(24dBm+1/-3dB) for WCDMA Class 2(24dBm+1/-3dB) for TD-SCDMA Class 3(23dBm±2dB) for LTE FDD Class 3(23dBm±2dB) for LTE FDD

Receive Sensitivity

Wi-Fi: 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm

Port Number

2 RJ45 1 WAN/LAN switchable 1 LAN

Stop Bit

1,2

Check Bit

None,Even,Odd

Baud Rate

TTL:300 bps~230400 bps

Flow Control

No Flow control Hardware RTS/CTS、DSR/DTR(RS232) Software Xon/ Xoff flow control

Size

178mm x 95mm x 26mm

Input Voltage

5~36VDC

Warranty

1 year

Resource-RAM

64MB RAM

Work Temp.

-25 ~ 85°C

Storage Temp.

-45 ~ 105°C, 5 ~ 95% RH(no condensation)

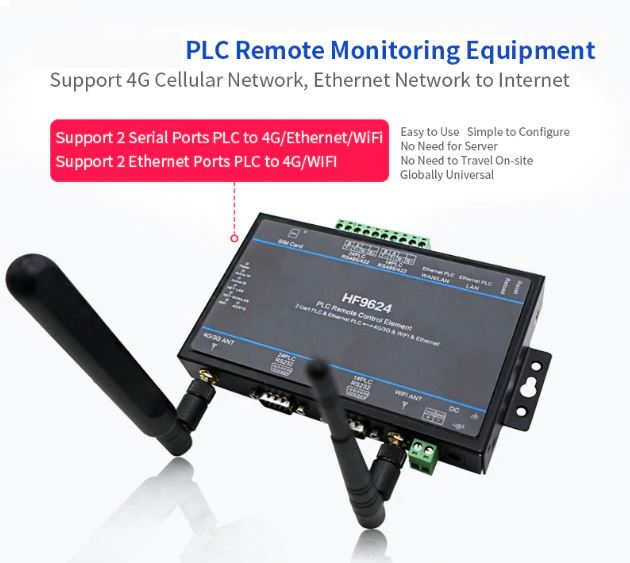

MIPS MCU with 16MB Flash and 64MB SRAM. Run with Linux OpenWrt
Support 4G/3G/GPRS, FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, CDMA2000, CDMA 1X/EVDO, GSM900/1800
Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor
Two RS232/RS485/RS422 interface to 4G/3G/2G
Two Ethernet to 4G/3G/GPRS
Support 802.11bgn Wi-Fi to 4G/3G/GPRS
Support APN network
Support VPN(PPTP, L2TP, L2TP+IPSEC)
Support TCP/IP/Telnet/Modbus TCP Protocol, support TLS/AES/DES3 enrtyption
Support Router or Bridge Network Working Mode.
Support 10/100M Ethernet Auto-Negotiation
Support Easy Configuration Through a Web Interface or PC IOTService Tool locally or remotely
Support IOTBridge Management
Support Web OTA Wirelss Upgrade
Support Wide DC Input 9~36VDC
Size: 178mm x 95mm x 26mm

Model : 4G PLC For Remote Monitor HF9624
Nhập khẩu và phân phối: An Sinh Automation Company
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
