Cảm biến tín hiệu van

Cảm biến tín hiệu van (13 Sản phẩm)

HOT

IG7107

777,317 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

300

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

8 ± 10 %

Operating distance [mm]

0...6.48

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

114.8

Mounting

non-flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

IG7104

777,317 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

400

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

5 ± 10 %

Operating distance [mm]

0...4.05

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

117

Mounting

flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

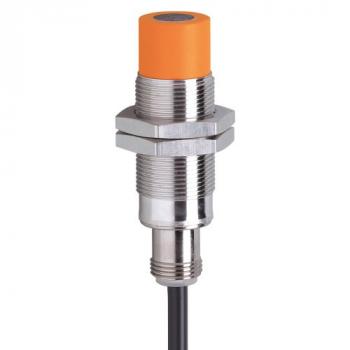

IG7105

777,317 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

300

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

8 ± 10 %

Operating distance [mm]

0...6.48

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

113.8

Mounting

non-flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

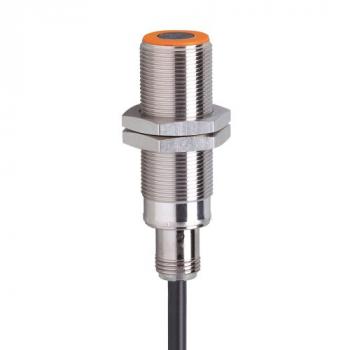

IG7106

Liên Hệ

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

400

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

5 ± 10 %

Operating distance [mm]

0...4.05

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

118.7

Mounting

flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

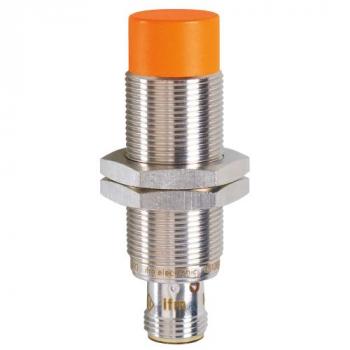

IG7101

737,522 ₫

Electrical data

Operating voltage [V]

10...30 DC

Current consumption [mA]

< 10

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

300

Short-circuit protection

yes

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

8 ± 10 %

Operating distance [mm]

0...6.48

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

Mounting

non-flush mountable

Dimensions [mm]

M18 x 1 / L = 60

Materials

brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection - plug

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

IF7107

634,057 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

800

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

4 ± 10 %

Operating distance [mm]

0...3.25

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

93.2

Mounting

non-flush mountable

Dimensions [mm]

M12 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

HOT

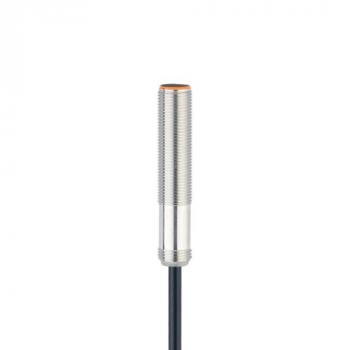

IF7104

634,057 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

800

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

2 ± 10 %

Operating distance [mm]

0...1.62

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

94.7

Mounting

flush mountable

Dimensions [mm]

M12 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

IF7106

634,057 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

800

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

2 ± 10 %

Operating distance [mm]

0...1.62

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

Mounting

flush mountable

Dimensions [mm]

M12 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

HOT

IF7100

596,915 ₫

Electrical data

Operating voltage [V]

10...30 DC

Current consumption [mA]

< 10

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

800

Short-circuit protection

yes

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

2 ± 10 %

Operating distance [mm]

0...1.62

Accuracy / deviations

Correction factor

steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3

Hysteresis [% of Sr]

3...15

Switch point drift [% of Sr]

-10...10

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

Mounting

flush mountable

Dimensions [mm]

M12 x 1 / L = 60

Materials

brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection - plug

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

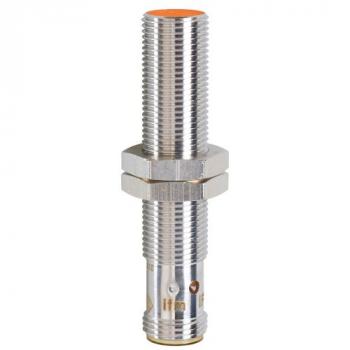

IF7102

596,915 ₫

Electrical data

Operating voltage [V]

10...30 DC

Current consumption [mA]

< 10

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

700

Short-circuit protection

yes

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

2 ± 10 %

Operating distance [mm]

0...1.62

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

Mounting

flush mountable

Dimensions [mm]

M12 x 1 / L = 60

Materials

brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection - plug

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

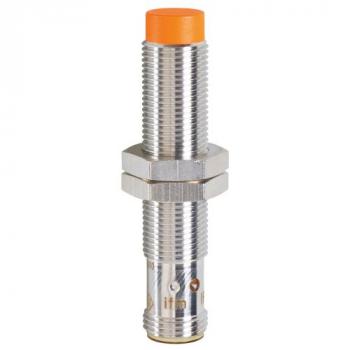

IF7101

596,915 ₫

Product characteristics

Electrical design

PNP

Output function

normally open

Sensing range [mm]

Housing

threaded type

Dimensions [mm]

M12 x 1 / L = 60

Electrical data

Operating voltage [V]

10...30 DC

Current consumption [mA]

< 10

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

700

Short-circuit protection

yes

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

4 ± 10 %

Operating distance [mm]

0...3.24

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

27.2

Housing

threaded type

Mounting

non-flush mountable

Dimensions [mm]

M12 x 1 / L = 60

Thread designation

M12 x 1

Materials

brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection - plug

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

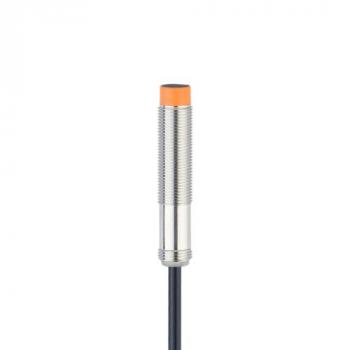

IF7105

634,057 ₫

Product characteristics

Electrical design

PNP

Output function

normally open

Sensing range [mm]

Housing

threaded type

Dimensions [mm]

M12 x 1 / L = 61

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

800

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

4 ± 10 %

Operating distance [mm]

0...3.25

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

93.8

Mounting

non-flush mountable

Dimensions [mm]

M12 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng
