Cảm biến mức liên tục

PM1717

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

15000 mbar

215 psi

1500 kPa

Min. bursting pressure

40000 mbar

580 psi

4000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

15

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

1

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

1

Output signal

analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.1...1.6 bar

-100...1600 mbar

-1.45...23.21 psi

-10...160 kPa

Analogue start point

-100...1280 mbar

-1.45...18.56 psi

-10...128 kPa

Analogue end point

220...1600 mbar

3.19...23.21 psi

22...160 kPa

In steps of

1 mbar

0.01 psi

0.1 kPa

Factory setting

ASP = 0.0 mbar

AEP = 1600 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

30

3-wire

Step response time analogue output [ms]

7

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

280.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1709

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-1...1 bar

-1000...1000 mbar

-14.5...14.5 psi

-100...100 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

10000 mbar

145 psi

1000 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

10

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

1

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

1

Output signal

analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...1 bar

-1000...1000 mbar

-14.5...14.5 psi

-100...100 kPa

Analogue start point

-1000...600 mbar

-14.5...8.7 psi

-100...60 kPa

Analogue end point

-600...1000 mbar

-8.7...14.5 psi

-60...100 kPa

In steps of

1 mbar

0.01 psi

0.1 kPa

Factory setting

ASP = -1000 mbar

AEP = 1000 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

30

3-wire

Step response time analogue output [ms]

7

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1789

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-0.005...0.1 bar

-5...100 mbar

-0.073...1.45 psi

-0.5...10 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

4000 mbar

58 psi

400 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

4

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

1

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

1

Output signal

analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.005...0.1 bar

-5...100 mbar

-0.073...1.45 psi

-0.5...10 kPa

Analogue start point

-5...80 mbar

-0.073...1.16 psi

-0.5...8 kPa

Analogue end point

15...100 mbar

0.218...1.45 psi

1.5...10 kPa

In steps of

0.05 mbar

0.001 psi

0.005 kPa

Factory setting

ASP = 0.0 mbar

AEP = 100 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

30

3-wire

Step response time analogue output [ms]

7

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

279.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mmWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1708

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-0.0125...0.25 bar

-12.5...250 mbar

-0.182...3.626 psi

-1.25...25 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

6000 mbar

84 psi

600 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

10

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

1

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

1

Output signal

analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.0125...0.25 bar

-12.5...250 mbar

-0.182...3.626 psi

-1.25...25 kPa

Analogue start point

-12.5...200 mbar

-0.182...2.9 psi

-1.25...20 kPa

Analogue end point

37.5...250 mbar

0.544...3.626 psi

3.75...25 kPa

In steps of

0.1 mbar

0.002 psi

0.01 kPa

Factory setting

ASP = 0.0 mbar

AEP = 250 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

30

3-wire

Step response time analogue output [ms]

7

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mmWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

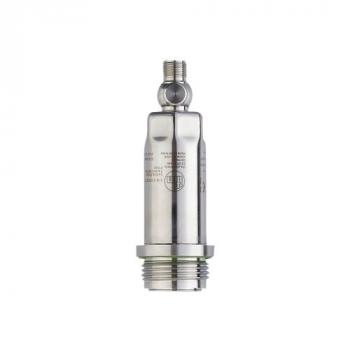

PM1707

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-0.05...1 bar

-50...1000 mbar

-0.73...14.5 psi

-5...100 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

10000 mbar

145 psi

1000 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

10

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

1

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

1

Output signal

analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.05...1 bar

-50...1000 mbar

-0.73...14.5 psi

-5...100 kPa

Analogue start point

-50...800 mbar

-0.73...11.6 psi

-5...80 kPa

Analogue end point

150...1000 mbar

2.18...14.5 psi

15...100 kPa

In steps of

0.5 mbar

0.01 psi

0.05 kPa

Factory setting

ASP = 0.0 mbar

AEP = 1000 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

30

3-wire

Step response time analogue output [ms]

7

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

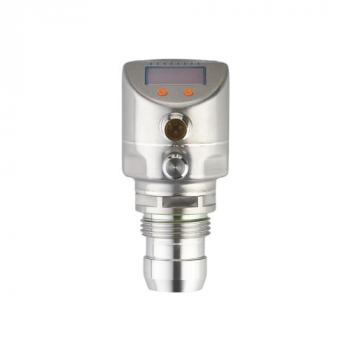

PI2898

16,952,468 ₫

Output signal			Switching signal; analogue signal; IO-Link; (configurable)
Measuring range			-0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O
Process connection			Threaded connection G 1 external thread sealing cone
Application			Hygienic systems
Media			Viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]			-25...125; (145 max. 1h)
Pressure rating			6000 mbar 2400 inH2O
Min. bursting pressure			30000 mbar 12044 inH2O
Vacuum resistance [mbar]			-1000
Type of pressure			Relative pressure
Min. insulation resistance [MΩ]			100; (500 V DC)
Protection class			III
Reverse polarity protection			Yes
Integrated watchdog			Yes
2-wire	Operating voltage [V]		20...32 DC
	Current consumption [mA]		3.6...21
	Power-on delay time [s]		1
	Max. load [Ω]		300
3-wire	Operating voltage [V]		18...32 DC
	Current consumption [mA]		< 45
	Power-on delay time [s]		0.5
	Max. voltage drop switching output DC [V]		2
	Permanent current rating of switching output DC [mA]		250
	Switching frequency DC [Hz]		125
	Max. load [Ω]		(Ub - 10 V) / 20 mA
Output signal			Switching signal; analogue signal; IO-Link; (configurable)
Electrical design			PNP/NPN
Number of digital outputs			2
Output function			Normally open / normally closed; (parameterisable)
Number of analogue outputs			1
Analogue current output [mA]			4...20, invertible; (scalable)
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Measuring range			-0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O
Damping for the switching output dAP [s]			0...30
Damping for the analogue output dAA [s]			0.01...99.99
Ambient temperature [°C]			-25...80
Storage temperature [°C]			-40...100
Protection			IP 67; IP 68; IP 69K
Weight [g]			1329.5
Materials			Stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)			Ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connection			Threaded connection G 1 external thread sealing cone
Display		Display unit	LED, green
		Switching status	LED, yellow
		Function display	Alphanumeric display, 4-digit
		Measured values	Alphanumeric display, 4-digit
		Display unit	mbar; kPa; inH2O; mmWS; % of the span
Connection			Connector: 1 x M12; Contacts: gold-plated

Attention: The unit must only be installed in a process connection for G1 sealing cone.

The G1A sealing cone of the unit is only suited for adapters with metal end stop.

Mua hàng

PI2789

16,952,468 ₫

Output signal			Switching signal; analogue signal; IO-Link; (configurable)
Electrical design			PNP/NPN
Number of digital outputs			2
Output function			Normally open / normally closed; (parameterisable)
Number of analogue outputs			1
Analogue current output [mA]			4...20, invertible; (scalable)
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Process connection			Threaded connection G 1 external thread Aseptoflex Vario
Media			Hygienic systems ;viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]			-25...125; (145 max. 1h)
Pressure rating			4000 mbar 1606 inH2O
Min. bursting pressure			30000 mbar 12044 inH2O
Vacuum resistance [mbar]			-1000
Type of pressure			Relative pressure
No dead space			Yes
Min. insulation resistance [MΩ]			100; (500 V DC)
Protection class			III
Reverse polarity protection			Yes
Integrated watchdog			Yes
2-wire	Operating voltage [V]		20...32 DC
	Current consumption [mA]		3.6...21
	Power-on delay time [s]		1
	Max. load [Ω]		300
	Step response time analogue output [ms]		45
3-wire	Operating voltage [V]		18...32 DC
	Current consumption [mA]		< 45
	Power-on delay time [s]		0.5
	Max. voltage drop switching output DC [V]		2
	Permanent current rating of switching output DC [mA]		250
	Switching frequency DC [Hz]		125
	Max. load [Ω]		(Ub - 10 V) / 20 mA
	Min. response time of switching output (dAP) [ms]		3
	Step response time analogue output [ms]		7
Measuring range			-0.005...0.1 bar -5...100 mbar -2...40.16 inH2O
Damping for the switching output dAP [s]				0...30
Damping for the analogue output dAA [s]				0.01...99.99
Ambient temperature [°C]			-25...80
Storage temperature [°C]			-40...100
Protection			IP 67; IP 68; IP 69K
Weight [g]			357.5
Materials			Stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)			Ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Display		Display unit	LED, green
		Switching status	LED, yellow
		Function display	Alphanumeric display, 4-digit
		Measured values	Alphanumeric display, 4-digit
		Display unit	mbar; kPa; inH2O; mmWS; % of the span
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

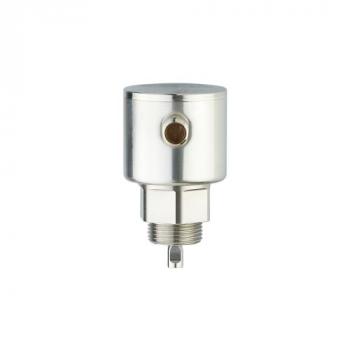

LR9020

9,225,920 ₫

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Process connection	G 3/4 external thread
Media	Hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the medium	≥ 2; (for media with a dielectric constant of 2...20 (e.g. oils), a coaxial pipe is needed for operation)
Medium temperature [°C]	0...80; (90 < 1 h)
Tank pressure [bar]	-1...16
Operating voltage [V]	18...30 DC
Current consumption [mA]	< 80
Protection class	III
Reverse polarity protection	Yes
Power-on delay time [s]	< 3
Output signal	Analogue signal; IO-Link
Number of digital outputs	1
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	2000
Overload protection	Yes
Probe length L [mm]	100...1600
Ambient temperature [°C]	0...60
Storage temperature [°C]	-25...80
Protection	IP 68; IP 69K
Weight [g]	430
Materials	Stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PEI
Materials (wetted parts)	Stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre
Connection	Connector: 1 x M12; Contacts: gold-plated

Mua hàng

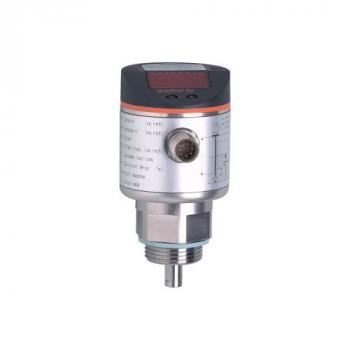

LR8000

11,231,556 ₫

Notes: For 8-pole sockets the core colours are not standardised.; Please note the wiring of the sensor and the sockets (see data sheet).Number of inputs and outputs

Number of digital outputs		4
Probe length L [mm]		100...1600
Process connection		G 3/4 external thread
Media		Hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the medium		≥ 2; (for media with a dielectric constant of 2...20 (e.g. oils), a coaxial pipe is needed for operation)
Cannot be used for		Greases; granulates; bulk material; acids; alkali; heavily foaming media
Medium temperature [°C]		0...80; (90 < 1 h)
Tank pressure [bar]		-1...16
Operating voltage [V]		18...30 DC
Current consumption [mA]		< 80
Protection class		III
Reverse polarity protection		Yes
Power-on delay time [s]		< 3
Output signal		Switching signal; IO-Link
Electrical design		PNP
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		200
Short-circuit protection		Yes
Type of short-circuit protection		Thermal, pulsed
Probe length L [mm]		100...1600
Active range A [mm]		L-40 (L-60); (when set to oil and oil based media)
Ambient temperature [°C]		0...60
Storage temperature [°C]		-25...80
Protection		IP 67
Weight [g]		396.5
Materials		Stainless steel (1.4301 / 304); FKM; PBT; PC; PEI; TPE-V; PTFE
Materials (wetted parts)		Stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR-PPTA 20
Display	Display unit	3 x LED, green
	Switching status	4 x LED, yellow
	Level	Alphanumeric display, 4-digit
	Parameter setting	Alphanumeric display, 4-digit
Accessories (optional)		Probe:, E43203...E43205 / E43207...E43210 Coaxial pipe:, E43211...E43221, E43223, E43224
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

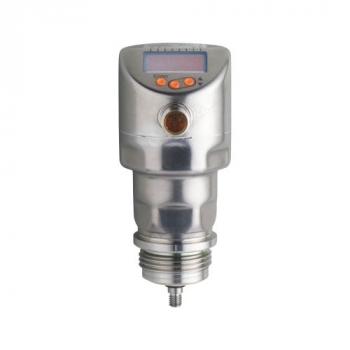

LR2750

22,042,883 ₫

Number of inputs and outputs		Number of digital outputs: 1; Number of analogue outputs: 1
Media		Liquids
Output signal		Switching signal; analogue signal; IO-Link
Electrical design		PNP/NPN
Number of digital outputs		1
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		150; (200 (...60 °C))
Number of analogue outputs		1
Analogue current output [mA]		4...20, invertible; (scalable)
Short-circuit protection		Yes
Type of short-circuit protection		Pulsed
Overload protection		Yes
Probe length L [mm]		150...2000
Recommended media		Water; hydrous media
Medium temperature [°C]		-40...150; (For 3-A applications, the medium temperature is limited to 121 °C and COP cleaning is required.)
Tank pressure [bar]		-1...40
Operating voltage [V]		18...30 DC
Current consumption [mA]		< 50
Protection class		III
Reverse polarity protection		Yes
Power-on delay time [s]		< 3
Ambient temperature [°C]		-40...80
Storage temperature [°C]		-40...100
Protection		IP 68; IP 69K
Weight [g]		401.5
Materials		Stainless steel (1.4404 / 316L); PEI; PFA; PBT; FKM
Materials (wetted parts)		Stainless steel (1.4404 / 316L); PEEK; EPDM
Process connection		G 1 Aseptoflex Vario
Display	Display unit	3 x LED, green
	Switching status	2 x LED, yellow
	Level	Alphanumeric display, 4-digit
	Parameter setting	Alphanumeric display, 4-digit
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

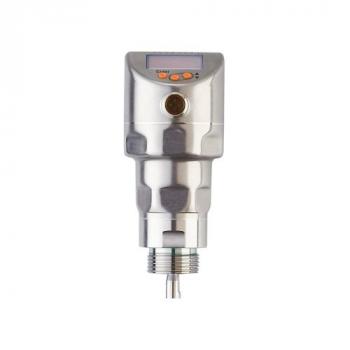

LR2050

15,140,952 ₫

Number of inputs and outputs		Number of digital outputs: 1; Number of analogue outputs: 1
Media		Liquids; oil-based media; hydrous media
Dielectric constant of the medium		≥ 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation)
Recommended media		Water; hydrous media; oils; oil-based media
Medium temperature [°C]		-20...100
Tank pressure [bar]		-1...16
Operating voltage [V]		18...30 DC
Current consumption [mA]		< 50
Protection class		III
Reverse polarity protection		Yes
Power-on delay time [s]		< 3
Output signal		Switching signal; analogue signal; IO-Link
Electrical design		PNP/NPN
Number of digital outputs		1
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		150; (200 (...60 °C))
Number of analogue outputs		1
Analogue current output [mA]		4...20, invertible; (scalable)
Short-circuit protection		Yes
Type of short-circuit protection		Pulsed
Overload protection		Yes
Probe length L [mm]		150...2000
Hysteresis [mm]		> 5
Ambient temperature [°C]		-40...80
Storage temperature [°C]		-40...100
Protection		IP 68; IP 69K
Weight [g]		447.5
Materials		Stainless steel (1.4404 / 316L); PEI; PFA; PBT; FKM
Materials (wetted parts)		Stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L); PTFE; FKM
Display	Display unit	3 x LED, green
	Switching status	2 x LED, yellow
	Level	Alphanumeric display, 4-digit
	Parameter setting	Alphanumeric display, 4-digit
Process connection		G 3/4 external thread
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

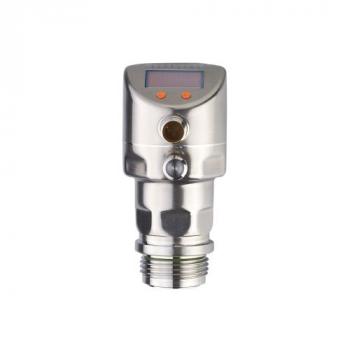

PI2797

16,952,468 ₫

Number of inputs and outputs				Number of digital outputs: 2; Number of analogue outputs: 1
Output signal				Switching signal; analogue signal; IO-Link; (configurable)
Electrical design				PNP/NPN
Number of digital outputs				2
Output function				Normally open / normally closed; (parameterisable)
Number of analogue outputs				1
Analogue current output [mA]				4...20, invertible; (scalable)
Short-circuit protection				Yes
Type of short-circuit protection				Pulsed
Overload protection				Yes
Measuring range				-0.05...1 bar -50...1000 mbar -0.73...14.5 psi
Application				Hygienic systems
Media				Viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]				-25...125; (145 max. 1h)
Pressure rating				10000 mbar 145 psi
Min. bursting pressure				30000 mbar 435 psi
Vacuum resistance [mbar]				-1000
Type of pressure				Relative pressure
No dead space				Yes
Min. insulation resistance [MΩ]				100; (500 V DC)
Protection class				III
Reverse polarity protection				Yes
Integrated watchdog				Yes
2-wire	Operating voltage [V]			20...32 DC
	Current consumption [mA]			3.6...21
	Power-on delay time [s]			1
	Max. load [Ω]			300
	Step response time analogue output [ms]			45
3-wire	Operating voltage [V]			18...32 DC
	Current consumption [mA]			< 45
	Power-on delay time [s]			0.5
	Max. voltage drop switching output DC [V]			2
	Permanent current rating of switching output DC [mA]			250
	Switching frequency DC [Hz]			125
	Max. load [Ω]			(Ub - 10 V) / 20 mA
	Min. response time of switching output (dAP) [ms]			3
	Step response time analogue output [ms]			7
Measuring range				-0.05...1 bar -50...1000 mbar -0.73...14.5 psi
Set point SP				-48...1000 mbar -0.7...14.5 psi
Reset point rP				-50...998 mbar -0.73...14.47 psi
Analogue start point				-50...750 mbar -0.73...10.88 psi
Analogue end point				200...1000 mbar 2.9...14.5 psi
In steps of				1 mbar 0.01 psi
Response times			Damping for the switching output dAP [s]	0...30
			Damping for the analogue output dAA [s]	0.01...99.99
Ambient temperature [°C]				-25...80
Storage temperature [°C]				-40...100
Protection				IP 67; IP 68; IP 69K
Weight [g]				356
Materials				Stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)				Ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Display		Display unit		LED, green
		Switching status		LED, yellow
		Function display		Alphanumeric display, 4-digit
		Measured values		Alphanumeric display, 4-digit
Display unit				mbar; kPa; psi; inH2O; mWS; % of the span
Process connection				Threaded connection G 1 external thread Aseptoflex Vario
Connection				Connector: 1 x M12; Contacts: gold-plated

Mua hàng

Cảm biến mức liên tục

Cảm biến mức liên tục (14 Sản phẩm)
