Cảm biến lưu lượng

Cảm biến lưu lượng (24 Sản phẩm)

HOT

SV7200

9,701,946 ₫

Application

for industrial applications

Media

water

Medium temperature [°C]

-10...90

Pressure rating [bar]

Note on pressure rating

up to 40 °C

MAWP (for applications according to CRN) [bar]

4.3

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 30

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

< 3

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Overload protection

yes

Measuring/setting range

Measuring range

5...100 l/min

0.3...6 m³/h

Display range

0...120 l/min

0...7.2 m³/h

Resolution

0.5 l/min

0.02 m³/h

Set point SP

6...100 l/min

0.36...6 m³/h

Reset point rP

5...99 l/min

0.3...5.94 m³/h

Frequency end point, FEP

20...100 l/min

1.2...6 m³/h

In steps of

0.5 l/min

0.02 m³/h

Frequency at the end point FRP [Hz]

100...1000

Measuring dynamics

1:20

Temperature monitoring

Measuring range [°C]

-10...90

Display range [°C]

-30...110

Resolution [°C]

0.5

Set point SP [°C]

-9...90

Reset point rP [°C]

-10...89

In steps of [°C]

0.5

Frequency start point, FSP [°C]

-10...70

Frequency end point, FEP [°C]

10...90

Frequency at the end point FRP [Hz]

100...1000

Software / programming

Parameter setting options

hysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit

Operating conditions

Ambient temperature [°C]

0...60

Note on ambient temperature

medium temperature < 80 °C

medium temperature < 90 °C: 0...50 °C

Storage temperature [°C]

-20...80

Protection

IP 65; IP 67

Mechanical data

Weight [g]

483.5

Materials

stainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM

Tightening torque [Nm]

Process connection

threaded connection G 3/4 DN20

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SU7000

20,441,375 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

water; glycol solutions; coolants; oil

Note on media

low-viscosity oils with viscosity: 7...40 mm²/s (40 °C)

high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)

Medium temperature [°C]

-10...80

Pressure rating [bar]

Electrical data

Operating voltage [V]

19...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

100

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range

0...50 l/min

0...3 m³/h

Display range

0...60 l/min

0...3.6 m³/h

Resolution

0.1 l/min

0.005 m³/h

Set point SP

0.1...50 l/min

0.005...3 m³/h

Reset point rP

0...49.9 l/min

0...2.995 m³/h

Analogue start point ASP

0...40 l/min

0...2.4 m³/h

Analogue end point AEP

10...50 l/min

0.6...3 m³/h

Max. flow rate

60 l/min

3.6 m³/h

In steps of

0.1 l/min

0.005 m³/h

Volumetric flow quantity monitoring

Pulse value

0.1 l...1 000 000 m³

Pulse length [s]

0,05...2

Temperature monitoring

Measuring range [°C]

-10...80

Resolution [°C]

0.2

Set point SP [°C]

-9.8...80

Reset point rP [°C]

-10...79.8

Analogue start point [°C]

-10...62

Analogue end point [°C]

8...80

In steps of [°C]

0.2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 67

Mechanical data

Weight [g]

1551.5

Materials

housing: AlMgSi0,5 anodised; Sealing: FKM; connector housing: brass Optalloy-plated; PA 6.6; cover film: PA

Materials (wetted parts)

stainless steel (1.4404 / 316L); FKM; PES; Centellen 200

Process connection

threaded connection G 3/4 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Moulded body: brass, Optalloy-plated; Contacts: gold-plated

Mua hàng

HOT

SA4100

9,224,704 ₫

Application

Media

water; glycol solutions; air; oils

Note on media

low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)

high-viscosity oils with viscosity: > 40 mm²/s (40 °C)

Medium temperature [°C]

-20...100

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 100

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

350

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0...1000

Measuring/setting range

Probe length L [mm]

100

Operating mode

relative; absolutely liquid; absolutely gaseous

Note on setting range

Operating mode: relative

Liquids

Measuring range [m/s]

0.04...3

Setting range [m/s]

0...6

Gases

Measuring range [m/s]

2...100

Setting range [m/s]

0...200

Temperature monitoring

Measuring range [°C]

-20...100

Resolution [°C]

0.2

Software / programming

Parameter setting options

hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour

Operating conditions

Ambient temperature [°C]

-40...80

Storage temperature [°C]

-40...100

Protection

IP 65; IP 67

Mechanical data

Weight [g]

299.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30

Materials (wetted parts)

stainless steel (1.4404 / 316L)

Process connection

diameter Ø 8 mm

Displays / operating elements

Display

Display unit	6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SA5000

8,898,638 ₫

Application

Media

water; glycol solutions; air; oils

Note on media

low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)

high-viscosity oils with viscosity: > 40 mm²/s (40 °C)

Medium temperature [°C]

-20...90

Pressure rating [bar]

100

MAWP (for applications according to CRN) [bar]

100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 100

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

350

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0...1000

Measuring/setting range

Probe length L [mm]

Operating mode

relative; absolutely liquid; absolutely gaseous

Note on setting range

Operating mode: relative

Liquids

Measuring range [m/s]

0.04...3

Setting range [m/s]

0...6

Gases

Measuring range [m/s]

2...100

Setting range [m/s]

0...200

Temperature monitoring

Measuring range [°C]

-20...90

Resolution [°C]

0.2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°C]

-40...80

Storage temperature [°C]

-40...100

Protection

IP 65; IP 67

Mechanical data

Weight [g]

311.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30

Materials (wetted parts)

stainless steel (1.4404 / 316L); Gasket: FKM

Process connection

threaded connection M18 x 1,5 internal thread

Displays / operating elements

Display

Display unit	6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

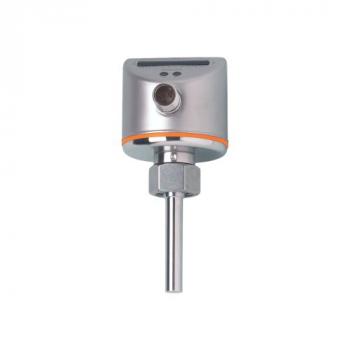

SI5004

8,498,466 ₫

Application

Media

Liquids

Medium temperature [°C]

-25...80

Pressure rating [bar]

300

MAWP (for applications according to CRN) [bar]

208

Electrical data

Operating voltage [V]

19...36 DC

Current consumption [mA]

< 60

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

500

Overload protection

yes

Measuring/setting range

Liquids

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...100

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...100

Protection

IP 67

Mechanical data

Weight [g]

248

Dimensions [mm]

M18 x 1.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X

Materials (wetted parts)

stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A

Process connection

M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

SM0510

29,491,189 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

5...900 l/min

0.3...54 m³/h

Display range

-920...920 l/min

-55.2...55.2 m³/h

Resolution

1 l/min

0.05 m³/h

Set point SP

10...900 l/min

0.55...54 m³/h

Reset point rP

5...896 l/min

0.3...53.75 m³/h

Analogue start point ASP

0...720 l/min

0...43.2 m³/h

Analogue end point AEP

180...900 l/min

10.8...54 m³/h

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

In steps of

1 l/min

0.05 m³/h

Measuring dynamics

1:180

Volumetric flow quantity monitoring

Pulse value

0.1 l...600 x 10³ m³

In steps of

0.1 l

Pulse length [s]

0,003...2

Temperature monitoring

Measuring range [°C]

-20...80

Display range [°C]

-40...100

Resolution [°C]

0.2

Set point SP [°C]

-19.2...80

Reset point rP [°C]

-19.6...79.6

Analogue start point [°C]

-20...60

Analogue end point [°C]

0...80

In steps of [°C]

0.2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/frequency/pulse output; start-up delay; display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3212

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PC; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Hastelloy C-4 (2.4610); Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

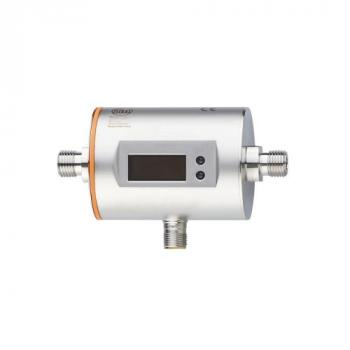

SM4000

16,226,231 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

0...60

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

7.3

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 80

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range [ml/min]

5...3000

Display range [ml/min]

-1999...3600

Resolution [ml/min]

Set point SP [ml/min]

20...3000

Reset point rP [ml/min]

5...2984

Analogue start point ASP [ml/min]

0...2400

Analogue end point AEP [ml/min]

600...3000

Low flow cut-off LFC [ml/min]

< 60

Volumetric flow quantity monitoring

Pulse value

0.001...3000 l

Pulse length [s]

0,008...2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 67

Mechanical data

Weight [g]

536.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1/4 DN6 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (ml/min, l/h, l, m³, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM6001

15,375,494 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

17.7

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

95; (24 V)

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range

1.5...396 gph

0.03...6.6 gpm

Display range

-475.5...475.5 gph

-7.925...7.925 gpm

Resolution

0.5 gph

0.01 gpm

Set point SP

3.5...396.5 gph

0.06...6.6 gpm

Reset point rP

1.5...394 gph

0.03...6.57 gpm

Analogue start point ASP

0...318 gph

0...5.3 gpm

Analogue end point AEP

78...396 gph

1.3...6.6 gpm

In steps of

0.5 gph

0.01 gpm

Volumetric flow quantity monitoring

Pulse value

0.01...30 000 000 gal

Pulse length [s]

0,01...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 67

Mechanical data

Weight [g]

546

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1/2 DN15 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SM8001

20,441,375 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

11.2

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

95; (24 V)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range

6...1584 gph

0.1...26.4 gpm

Display range

-1902...1902 gph

-31.7...31.7 gpm

Resolution

2 gph

0.05 gpm

Set point SP

14...1586 gph

0.25...26.4 gpm

Reset point rP

6...1578 gph

0.1...26.25 gpm

Analogue start point ASP

0...1272 gph

0...21.2 gpm

Analogue end point AEP

312...1586 gph

5.2...26.4 gpm

In steps of

2 gph

0.05 gpm

Volumetric flow quantity monitoring

Pulse value

0.01...100 000 000 gal

Pulse length [s]

0,0025...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 67

Mechanical data

Weight [g]

645

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1 DN25 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

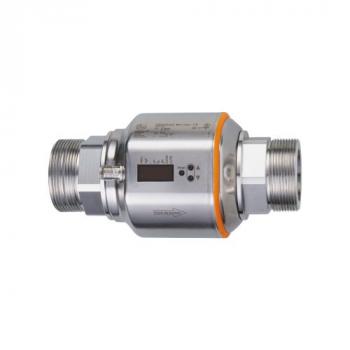

SM9100

24,932,193 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

5...300 l/min

0.3...18 m³/h

Display range

-360...360 l/min

-21.6...21.6 m³/h

Resolution

0.5 l/min

0.02 m³/h

Set point SP

6.5...300 l/min

0.4...18 m³/h

Reset point rP

5...298.5 l/min

0.3...17.9 m³/h

Analogue start point ASP

0...240 l/min

0...14.4 m³/h

Analogue end point AEP

60...300 l/min

3.6...18 m³/h

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

In steps of

0.5 l/min

0.02 m³/h

Measuring dynamics

1:60

Volumetric flow quantity monitoring

Pulse value

0.0001...300x10³ m³

In steps of

0.0001 m³

Pulse length [s]

0,016...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3214

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; EPDM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM2004

28,936,876 ₫

Application

empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature

-10...70 °C

14...158 °F

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 2

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (≤ 22 mA; scalable)

Max. load [Ω]

500

Measuring/setting range

Measuring range

5...600 l/min

0.3...36 m³/h

80...9510 gph

1.3...158.5 gpm

Display range

-720...720 l/min

-43.2...43.2 m³/h

-11410...11410 gph

-190.2...190.2 gpm

Resolution

0.5 l/min

0.02 m³/h

5 gph

0.1 gpm

Analogue start point ASP

0...480 l/min

0...28.8 m³/h

0...7610 gph

0...126.8 gpm

Analogue end point AEP

120...600 l/min

7.2...36 m³/h

1900...9510 gph

31.7...158.5 gpm

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

< 240 gph

< 4 gpm

In steps of

0.5 l/min

0.02 m³/h

5 gph

0.1 gpm

Measuring dynamics

1:120

Software / programming

Parameter setting options

display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature

-10...60 °C

14...140 °F

Storage temperature

-25...80 °C

-13...176 °F

Protection

IP 65; IP 67

Tests / approvals

EMC

DIN EN 60947-5-9

Shock resistance

DIN EN 60068-2-27

20 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

5 g (10...2000 Hz)

MTTF [years]

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]

3147

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
function display	1 x LED, yellow (10³)
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM7004

18,117,413 ₫

Application

for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

11.2

Electrical data

Operating voltage [V]

20...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

120; (24 V)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 2

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Overload protection

yes

Measuring/setting range

Measuring range

0.2...50 l/min

0.02...13.22 gpm

Display range

-60...60 l/min

-15.86...15.86 gpm

Resolution

0.1 l/min

0.02 gpm

Analogue start point ASP

0...40 l/min

0...10.58 gpm

Analogue end point AEP

10...50 l/min

2.64...13.22 gpm

In steps of

0.1 l/min

0.02 gpm

Temperature monitoring

Measuring range [°C]

-20...80

Resolution [°C]

0.2

Analogue start point [°C]

-20...60

Analogue end point [°C]

0...80

In steps of [°C]

0.2

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 67

Mechanical data

Weight [g]

559.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 3/4 DN20 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng
