Cảm biến áp suất

Cảm biến áp suất (30 Sản phẩm)

Sắp xếp
PU5400

PU5400

3,150,983 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]1000
Note on pressure rating
static
Min. bursting pressure [bar]1700
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]16...36 DC
Current consumption [mA]< 12
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue voltage output [V]0...10
Min. load resistance [Ω]2000
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...400
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
PU5415

PU5415

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]15
Note on pressure rating
static
Min. bursting pressure [bar]200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]16...36 DC
Current consumption [mA]< 12
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue voltage output [V]0...10
Min. load resistance [Ω]2000
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...6
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT
PU5401

PU5401

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]625
Note on pressure rating
static
Min. bursting pressure [bar]1200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]16...36 DC
Current consumption [mA]< 12
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue voltage output [V]0...10
Min. load resistance [Ω]2000
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...250
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
PT5504

PT5504

3,334,766 ₫

Application
Applicationfor mobile applications
Medialiquids and gases
Medium temperature [°C]-40...125
Pressure rating [bar]25
Note on pressure rating
static
Min. bursting pressure [bar]300
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8...32 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω](Ub - 8 V) / 20 mA
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...10
Response times
Step response time analogue output [ms]2
Operating conditions
Ambient temperature [°C]-40...100
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12; Maximum cable length: 30 m
Mua hàng
PT5301

PT5301

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]625
Note on pressure rating
static
Min. bursting pressure [bar]1200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8.5...36 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...250
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]60.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT
PU5404

PU5404

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]25
Note on pressure rating
static
Min. bursting pressure [bar]300
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]16...36 DC
Current consumption [mA]< 12
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue voltage output [V]0...10
Min. load resistance [Ω]2000
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...10
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
PT5501

PT5501

3,334,766 ₫

Application
Applicationfor mobile applications
Medialiquids and gases
Medium temperature [°C]-40...125
Pressure rating [bar]625
Note on pressure rating
static
Min. bursting pressure [bar]1200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8...32 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω](Ub - 8 V) / 20 mA
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...250
Response times
Step response time analogue output [ms]2
Operating conditions
Ambient temperature [°C]-40...100
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12; Maximum cable length: 30 m



Mua hàng
PT5560

PT5560

3,432,586 ₫

Application
Applicationfor mobile applications
Medialiquids and gases
Medium temperature [°C]-40...125
Pressure rating [bar]1500
Note on pressure rating
static
Min. bursting pressure [bar]2500
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8...32 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω](Ub - 8 V) / 20 mA
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...600
Response times
Step response time analogue output [ms]2
Operating conditions
Ambient temperature [°C]-40...100
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12; Maximum cable length: 30 m
Mua hàng
HOT

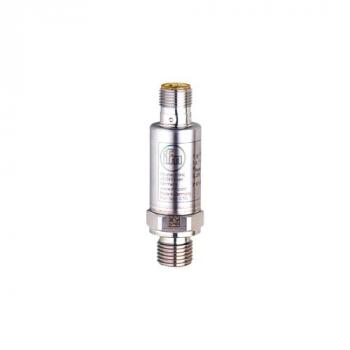

PT5414

PT5414

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]40
Note on pressure rating
static
Min. bursting pressure [bar]450
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8.5...36 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...16
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g]59
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
PT5415

PT5415

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]15
Note on pressure rating
static
Min. bursting pressure [bar]200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8.5...36 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...6
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
PT5402

PT5402

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]250
Note on pressure rating
static
Min. bursting pressure [bar]1000
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8.5...36 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...100
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12
Mua hàng
PT5403

PT5403

3,062,056 ₫

Application
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]65
Note on pressure rating
static
Min. bursting pressure [bar]600
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8.5...36 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Outputs
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...25
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
