Thiết bị IFM

Thiết bị IFM (140 Sản phẩm)

Sắp xếp
HOT

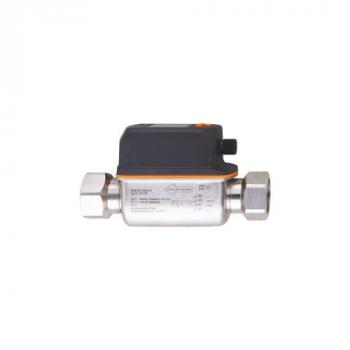

SV7200

SV7200

9,701,946 ₫

Application
Applicationfor industrial applications
Mediawater
Medium temperature [°C]-10...90
Pressure rating [bar]12
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]4.3
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 30
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]< 3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Short-circuit protectionyes
Overload protectionyes
Measuring/setting range
Measuring range
5...100 l/min0.3...6 m³/h
Display range
0...120 l/min0...7.2 m³/h
Resolution
0.5 l/min0.02 m³/h
Set point SP
6...100 l/min0.36...6 m³/h
Reset point rP
5...99 l/min0.3...5.94 m³/h
Frequency end point, FEP
20...100 l/min1.2...6 m³/h
In steps of
0.5 l/min0.02 m³/h
Frequency at the end point FRP [Hz]100...1000
Measuring dynamics1:20
Temperature monitoring
Measuring range [°C]-10...90
Display range [°C]-30...110
Resolution [°C]0.5
Set point SP [°C]-9...90
Reset point rP [°C]-10...89
In steps of [°C]0.5
Frequency start point, FSP [°C]-10...70
Frequency end point, FEP [°C]10...90
Frequency at the end point FRP [Hz]100...1000
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]0...60
Note on ambient temperature
medium temperature < 80 °C
medium temperature < 90 °C: 0...50 °C
Storage temperature [°C]-20...80
ProtectionIP 65; IP 67
Mechanical data
Weight [g]483.5
Materialsstainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U
Materials (wetted parts)stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]30
Process connectionthreaded connection G 3/4 DN20
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

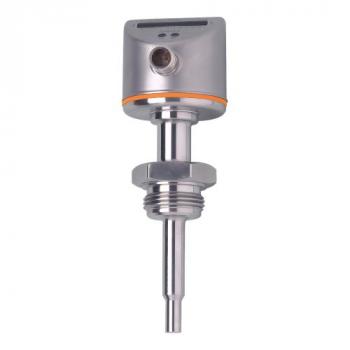

SI6000

SI6000

10,955,818 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]55
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]406
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; O-ring: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionAseptoflex
Installation length EL [mm]69.5
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

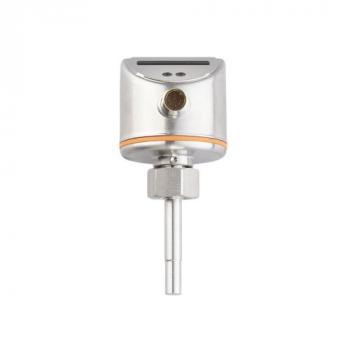

SI500A

SI500A

10,016,155 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...60
Pressure rating [bar]30
Liquids
Medium temperature [°C]-25...60
Gases
Medium temperature [°C]-25...60
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-20...60
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]268
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

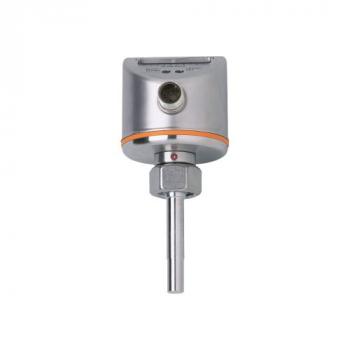

SI5001

SI5001

8,756,354 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]30
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designNPN
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]263
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

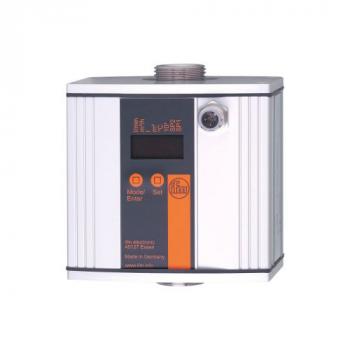

SU7000

SU7000

20,441,375 ₫

Application
Applicationtotaliser function; for industrial applications
Installationconnection to pipe by means of an adapter
Mediawater; glycol solutions; coolants; oil
Note on media
low-viscosity oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)
Medium temperature [°C]-10...80
Pressure rating [bar]16
Electrical data
Operating voltage [V]19...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA]100
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Inputs
Inputscounter reset
Outputs
Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2
Permanent current rating of switching output DC [mA]250; (per output)
Number of analogue outputs1
Analogue current output [mA]4...20; (scalable)
Max. load [Ω]500
Analogue voltage output [V]0...10; (scalable)
Min. load resistance [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Measuring range
0...50 l/min0...3 m³/h
Display range
0...60 l/min0...3.6 m³/h
Resolution
0.1 l/min0.005 m³/h
Set point SP
0.1...50 l/min0.005...3 m³/h
Reset point rP
0...49.9 l/min0...2.995 m³/h
Analogue start point ASP
0...40 l/min0...2.4 m³/h
Analogue end point AEP
10...50 l/min0.6...3 m³/h
Max. flow rate
60 l/min3.6 m³/h
In steps of
0.1 l/min0.005 m³/h
Volumetric flow quantity monitoring
Pulse value0.1 l...1 000 000 m³
Pulse length [s]0,05...2
Temperature monitoring
Measuring range [°C]-10...80
Resolution [°C]0.2
Set point SP [°C]-9.8...80
Reset point rP [°C]-10...79.8
Analogue start point [°C]-10...62
Analogue end point [°C]8...80
In steps of [°C]0.2
Software / programming
Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring
Operating conditions
Ambient temperature [°C]-10...60
Storage temperature [°C]-25...80
ProtectionIP 67
Mechanical data
Weight [g]1551.5
Materialshousing: AlMgSi0,5 anodised; Sealing: FKM; connector housing: brass Optalloy-plated; PA 6.6; cover film: PA
Materials (wetted parts)stainless steel (1.4404 / 316L); FKM; PES; Centellen 200
Process connectionthreaded connection G 3/4 flat seal
Displays / operating elements
Display
Display unit6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit
Electrical connection
ConnectionConnector: 1 x M12; Moulded body: brass, Optalloy-plated; Contacts: gold-plated



Mua hàng
HOT

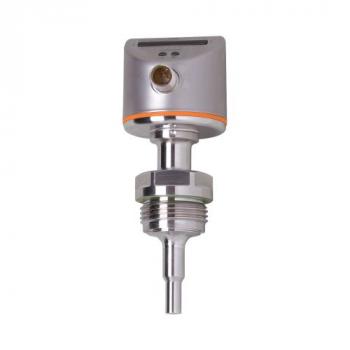

SI6700

SI6700

10,360,007 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]433.5
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionG 1 Aseptoflex Vario
Installation length EL [mm]54.8
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

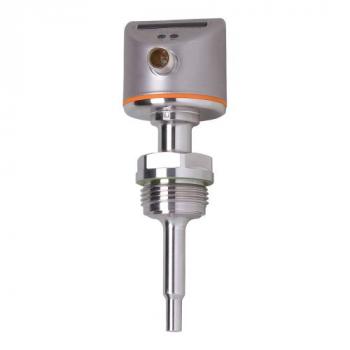

SI6800

SI6800

10,505,254 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
MAWP (for applications according to CRN) [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]440
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionG 1 Aseptoflex Vario
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT
SI5007

SI5007

8,857,139 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]18...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Temperature monitoring
Measuring range [°C]2...80
Resolution [°C]1
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]254
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

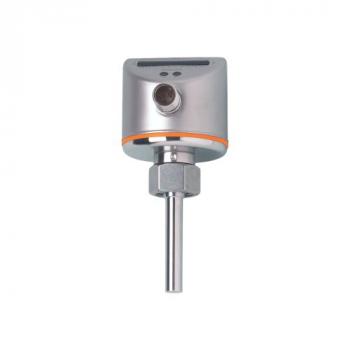

SI5002

SI5002

8,993,493 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]18...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]247.5
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12
Mua hàng
HOT

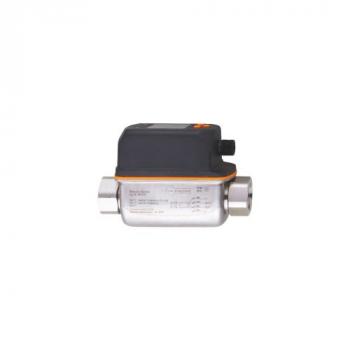

SV4200

SV4200

8,812,675 ₫

Application
Applicationfor industrial applications
Mediawater
Medium temperature [°C]-10...90
Pressure rating [bar]12
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]3.9
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 30
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]< 3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Short-circuit protectionyes
Overload protectionyes
Measuring/setting range
Measuring range
1...20 l/min0.06...1.2 m³/h
Display range
0...24 l/min0...1.44 m³/h
Resolution
0.1 l/min0.005 m³/h
Set point SP
1.2...20 l/min0.07...1.2 m³/h
Reset point rP
1...19.8 l/min0.06...1.19 m³/h
Frequency end point, FEP
4...20 l/min0.24...1.2 m³/h
In steps of
0.1 l/min0.005 m³/h
Frequency at the end point FRP [Hz]100...1000
Measuring dynamics1:20
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]0...60
Note on ambient temperature
medium temperature < 80 °C
medium temperature < 90 °C: 0...50 °C
Storage temperature [°C]-20...80
ProtectionIP 65; IP 67
Mechanical data
Weight [g]441.5
Materialsstainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U
Materials (wetted parts)stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]30
Process connectionthreaded connection G 1/2 DN8
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated
Mua hàng
HOT
SA4100

SA4100

9,224,704 ₫

Application
Mediawater; glycol solutions; air; oils
Note on media
low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
Medium temperature [°C]-20...100
Pressure rating [bar]50
MAWP (for applications according to CRN) [bar]50
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 100
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs2
Output signalswitching signal; analogue signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Number of analogue outputs1
Analogue current output [mA]4...20; (scalable)
Max. load [Ω]350
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Frequency of the output [Hz]0...1000
Measuring/setting range
Probe length L [mm]100
Operating moderelative; absolutely liquid; absolutely gaseous
Note on setting range
Operating mode: relative
Liquids
Measuring range [m/s]0.04...3
Setting range [m/s]0...6
Gases
Measuring range [m/s]2...100
Setting range [m/s]0...200
Temperature monitoring
Measuring range [°C]-20...100
Resolution [°C]0.2
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour
Operating conditions
Ambient temperature [°C]-40...80
Storage temperature [°C]-40...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]299.5
Materialsstainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30
Materials (wetted parts)stainless steel (1.4404 / 316L)
Process connectiondiameter Ø 8 mm
Displays / operating elements
Display
Display unit6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status2 x LED, yellow
measured valuesalphanumeric display, red/green 4-digit
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated
Mua hàng
HOT

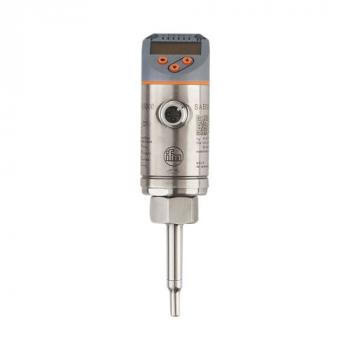

SA5000

SA5000

8,898,638 ₫

Application
Mediawater; glycol solutions; air; oils
Note on media
low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
Medium temperature [°C]-20...90
Pressure rating [bar]100
MAWP (for applications according to CRN) [bar]100
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 100
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs2
Output signalswitching signal; analogue signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Number of analogue outputs1
Analogue current output [mA]4...20; (scalable)
Max. load [Ω]350
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Frequency of the output [Hz]0...1000
Measuring/setting range
Probe length L [mm]45
Operating moderelative; absolutely liquid; absolutely gaseous
Note on setting range
Operating mode: relative
Liquids
Measuring range [m/s]0.04...3
Setting range [m/s]0...6
Gases
Measuring range [m/s]2...100
Setting range [m/s]0...200
Temperature monitoring
Measuring range [°C]-20...90
Resolution [°C]0.2
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour
Operating conditions
Ambient temperature [°C]-40...80
Storage temperature [°C]-40...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]311.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30
Materials (wetted parts)stainless steel (1.4404 / 316L); Gasket: FKM
Process connectionthreaded connection M18 x 1,5 internal thread
Displays / operating elements
Display
Display unit6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status2 x LED, yellow
measured valuesalphanumeric display, red/green 4-digit
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
