Công tắc dòng chảy

HOT

SV7200

9,701,946 ₫

Application
Applicationfor industrial applications
Mediawater
Medium temperature [°C]-10...90
Pressure rating [bar]12
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]4.3
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 30
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]< 3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Short-circuit protectionyes
Overload protectionyes
Measuring/setting range
Measuring range
5...100 l/min0.3...6 m³/h
Display range
0...120 l/min0...7.2 m³/h
Resolution
0.5 l/min0.02 m³/h
Set point SP
6...100 l/min0.36...6 m³/h
Reset point rP
5...99 l/min0.3...5.94 m³/h
Frequency end point, FEP
20...100 l/min1.2...6 m³/h
In steps of
0.5 l/min0.02 m³/h
Frequency at the end point FRP [Hz]100...1000
Measuring dynamics1:20
Temperature monitoring
Measuring range [°C]-10...90
Display range [°C]-30...110
Resolution [°C]0.5
Set point SP [°C]-9...90
Reset point rP [°C]-10...89
In steps of [°C]0.5
Frequency start point, FSP [°C]-10...70
Frequency end point, FEP [°C]10...90
Frequency at the end point FRP [Hz]100...1000
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]0...60
Note on ambient temperature
medium temperature < 80 °C
medium temperature < 90 °C: 0...50 °C
Storage temperature [°C]-20...80
ProtectionIP 65; IP 67
Mechanical data
Weight [g]483.5
Materialsstainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U
Materials (wetted parts)stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]30
Process connectionthreaded connection G 3/4 DN20
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

SI6000

10,955,818 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]55
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]406
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; O-ring: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionAseptoflex
Installation length EL [mm]69.5
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

SI500A

10,016,155 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...60
Pressure rating [bar]30
Liquids
Medium temperature [°C]-25...60
Gases
Medium temperature [°C]-25...60
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-20...60
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]268
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

SI5001

8,756,354 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]30
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designNPN
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]263
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

SI6700

10,360,007 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]433.5
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionG 1 Aseptoflex Vario
Installation length EL [mm]54.8
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

SI6800

10,505,254 ₫

Application
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Pressure rating [bar]30
MAWP (for applications according to CRN) [bar]30
Liquids
Applicationhygienic systems
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Gases
Medium temperature [°C]-25...95; (for SIP process: ...140 °C)
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...60
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]440
Materialsstainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM
Materials (wetted parts)stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connectionG 1 Aseptoflex Vario
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



Mua hàng
HOT

SI5007

8,857,139 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]18...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Temperature monitoring
Measuring range [°C]2...80
Resolution [°C]1
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]254
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

SI5002

8,993,493 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]18...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]247.5
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12
Mua hàng
HOT

SV4200

8,812,675 ₫

Application
Applicationfor industrial applications
Mediawater
Medium temperature [°C]-10...90
Pressure rating [bar]12
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]3.9
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 30
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]< 3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Short-circuit protectionyes
Overload protectionyes
Measuring/setting range
Measuring range
1...20 l/min0.06...1.2 m³/h
Display range
0...24 l/min0...1.44 m³/h
Resolution
0.1 l/min0.005 m³/h
Set point SP
1.2...20 l/min0.07...1.2 m³/h
Reset point rP
1...19.8 l/min0.06...1.19 m³/h
Frequency end point, FEP
4...20 l/min0.24...1.2 m³/h
In steps of
0.1 l/min0.005 m³/h
Frequency at the end point FRP [Hz]100...1000
Measuring dynamics1:20
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]0...60
Note on ambient temperature
medium temperature < 80 °C
medium temperature < 90 °C: 0...50 °C
Storage temperature [°C]-20...80
ProtectionIP 65; IP 67
Mechanical data
Weight [g]441.5
Materialsstainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U
Materials (wetted parts)stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]30
Process connectionthreaded connection G 1/2 DN8
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated
Mua hàng
HOT

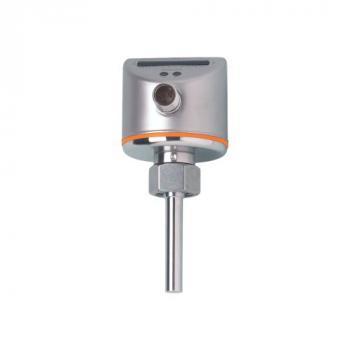

SI5000

8,542,929 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]30
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Probe length L [mm]45
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]246
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
HOT

SI5006

9,461,843 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
MAWP (for applications according to CRN) [bar]208
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage tolerance [%]-5...10
Operating voltage [V]85...265 AC
Nominal voltage AC [V]90...240
Nominal frequency AC [Hz]50...60
Max. power consumption [VA]3.5
Protection classII
Reverse polarity protectionno
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designrelay
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Contact rating3 A (250 V AC / 30 V DC); (number of switching cycles: 20 million mechanically; switching cycles at 3 A load: 100,000 electrical; type of switch-off: normally open)
Short-circuit proofno
Overload protectionno
Measuring/setting range
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]262.5
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x 1/2"



Mua hàng
HOT

SI5010

9,034,993 ₫

Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
MAWP (for applications according to CRN) [bar]208
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage [V]18...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 65; IP 67
Mechanical data
Weight [g]248.5
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x M12



Mua hàng
