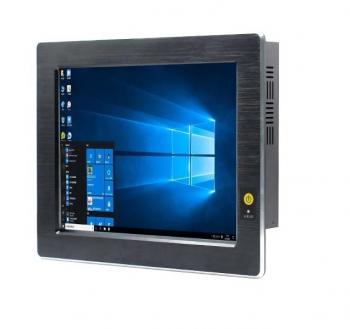

Fanless Mini PC 12 inch Touch

Processor

CPU

Intel® Core™5th Broadwell-U Soc  I7-5500U  processor

Memory

Integrated 4GB DDR3 1066/1333/1600MHz,1 slot can be added, up to be 12GB

storage

SATA 128G and MSATA,HDD and SSD(optional)

Internet (LAN)

2*Intel I211AT Gigabit Lan Port

I/O Port

2*RS422/485/232 is DB9 Interface 4 three-wire RS-232 (Phoenix terminal interface),

2*USB2.0,2*USB3.0,

1*14BIT GPIO Port,

1*LINE OUT 1*MIC,

2*Wifi antenna  Port,(Option)

1*power switch button,

1*HDMI Max resolution support 3200*2000@60HZ

Expansion bus

1*full size Mini-PCIE socket

Watch -dog timer

0-255 second, Sample code optional

Physical characteristics

Size

316.6*253.6*62.5mm

Weight

2.75Kg

OS Support

Operate System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux

Power type support

Input Voltage

DC12V5A power supply (optional 9-36V wide voltage supply)

Consumption

35W

LCD display

Display type

12inch  TFT LED

Max resolution

1024*768

View

80 (left), 80 (right), 70 (UP), 70 (Down)

Lumens (cd/m²))

350cd/m²

Contrast

400:1

Backlight Life

30,000 hrs (Min.)

TOUCH PANEL

TYPE

4 Wires Resistive touch panel

Light Transmittance

≥85%

Controller Interface

USB Port

Durability(Touch Times)

>3500 million times

ENVIRONMENT

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65
