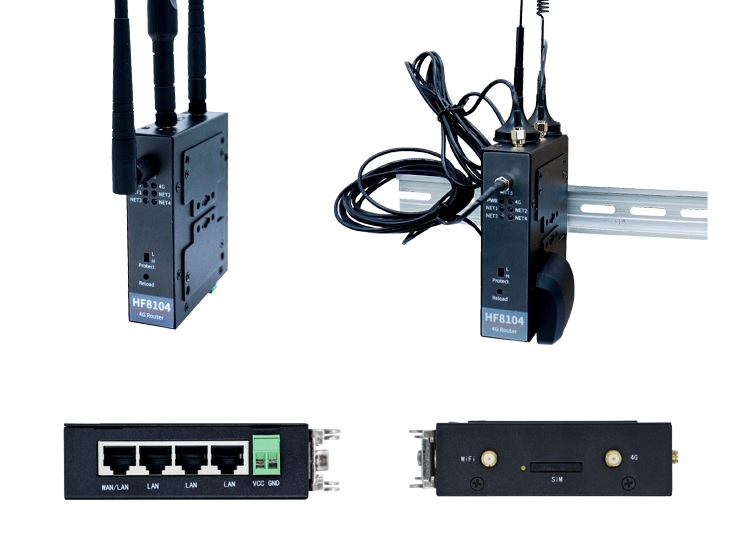

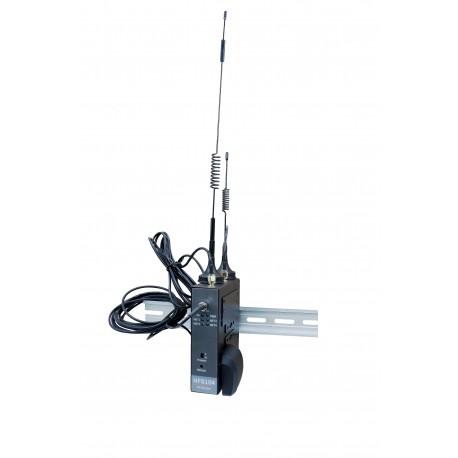

4G Router HF8104

4G Router HF8104

  • ASHF8104
  • Hi-Flying

Wireless Standard

802.11 b/g/n

Frequency Range

2.412GHz-2.484GHz

StorageTemp.

-45 ~ 105°C

Operating System

Support Windows 7 / Windows 8 / 10 / Linux

Interface Standard

4 RJ45

Rate

LTE FDD：50Mbps(UL)， 150Mbps(DL) TDD：35Mbps(UL)， 130Mbps(DL) WCDMA 5.76Mbps(UL)， 42Mbps(DL) TD-SCDMA 2.2Mbps(UL)， 4.2Mbps(DL) CMDA 1.8Mbps(UL)，3.1Mbps(DL) GSM/GPRS/EDGE 9.6Mbps(UL)，14.4Mbps(DL)

Security Protocol

SSL v3 AES 128Bit DES3

Network Mode

AP

Transmit Power

WIFI:802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.) GPRS:Class 4(33dBm±2dB) for GSM900 Class 1(30dBm±2dB) for DCS1800 Class E2(27dBm±3dB) for GSM900 8-PSK Class E2(26dBm±3dB) for DCS1800 8-PSK Class 3(24dBm+1/-3dB) for WCDMA Class 2(24dBm+1/-3dB) for TD-SCDMA Class 3(23dBm±2dB) for LTE FDD Class 3(23dBm±2dB) for LTE FDD

Receive Sensitivity

802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm

Processor/Frequency

MIPS/320MHz

Internet Type

4G/3G/GSM/GPRS

Multi-Slot Class

GPRS Class 12

Terminal Device Class

Class B

SIM Card

1.8V/3V

Work Temp.

-40 ~ 85°C

Storage Temp.

-45 ~ 105°C, 5 ~ 95% RH（no condensation）

Thêm vào giỏ hàng

- Supports 4G/3G/GPRS networks, FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, GSM900/1800, GNSS positioning.

- Four DI/One DO to 4G/3G

- Two Ethernet(LANN) to 4G/3G

- 802.11bgn Wi-Fi to 4G/3G

- MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos

- Support TCP/IP/Telnet /Modbus TCP Protocol

- SupportAP Mode

- Support Router or Bridge Network Working Mode.

- Support 10/100M Ethernet Auto-Negotiation

- Support Easy Configuration Through a Web Interface or PC IOTService Tool

- Support Security Protocol Such As SSL/AES/DES3

- Support Web OTA Wirelss Upgrade

- Wide DC Input 5~36VDC or 9~50VDC

- FCC/CE/RoHS Certificated

- Size: 108x30x120mm

Model : Router 4G HF8104
Nhập khẩu và phân phối: An Sinh Automation Company
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
