Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to four IO-Link devices
With integrated PROFINET interface
Robust housing for use in harsh industrial environments

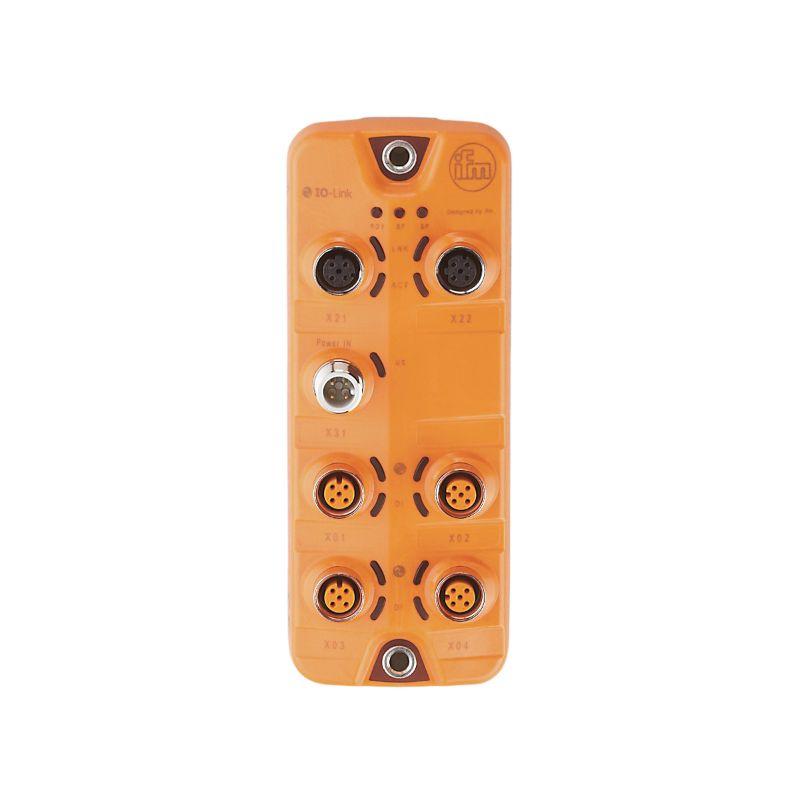

AL1100
- AL1100
- IFM
9,211,212 ₫
| Application | |||||
|---|---|---|---|---|---|
| Application | I/O modules for field applications | ||||
| Daisy-chain function | fieldbus interface | ||||
| Electrical data | |||||
| Operating voltage [V] | 20...30 DC; (US; to SELV/PELV) | ||||
| Current consumption [mA] | 300...3900; (US) | ||||
| Protection class | III | ||||
| Sensor supply US | |||||
| Max. current load total [A] | 3.6 | ||||
| Inputs / outputs | |||||
| Total number of inputs and outputs | 8; (configurable) | ||||
| Number of inputs and outputs | Number of digital inputs: 8; Number of digital outputs: 4 | ||||
| Inputs | |||||
| Number of digital inputs | 8; (IO-Link Port Class A: 4 x 2) | ||||
| Switching level high [V] | 11...30 | ||||
| Switching level low [V] | 0...5 | ||||
| Digital inputs protected against short circuits | yes | ||||
| Outputs | |||||
| Number of digital outputs | 4; (IO-Link Port Class A: 4 x 1) | ||||
| Max. current load per output [mA] | 300 | ||||
| Short-circuit proof | yes | ||||
| Interfaces | |||||
| Communication interface | Ethernet; IO-Link | ||||
| Ethernet | |||||
| Transmission standard | 10Base-T; 100Base-TX | ||||
| Transmission rate | 10; 100 | ||||
| Protocol | PROFINET | ||||
| Factory settings |
| ||||
| IO-Link Master | |||||
| Transmission type | COM 1 / COM 2 / COM 3 | ||||
| IO-Link revision | 1.1 | ||||
| Number of ports class A | 4 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...60 | ||||
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Protection | IP 65; IP 66; IP 67 | ||||
| Degree of soiling | 2 | ||||
| MTTF [years] | 90 | ||||
| Mechanical data | |||||
| Weight [g] | 293.5 | ||||
| Materials | housing: PA; socket: brass nickel-plated | ||||
| Electrical connection - Ethernet | |||||
| IN / OUT X21, X22 | Connector: 2 x M12 | ||||
| Electrical connection - Process connection | |||||
| IO-Link Port Class A X01...X04 | Connector: 4 x M12 | ||||
| Electrical connection - voltage supply | |||||
| X31 | Connector: 1 x M12 | ||||
Model : AL1100
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
