| Processors | Intel Core i7-8565U, 6M Cache, 4 cores, 8 threads, 1.80GHz, max turbo 4.60GHz |
| Memory Types | 2x SODIMM DDR4 slots Upto 32GB RAM |

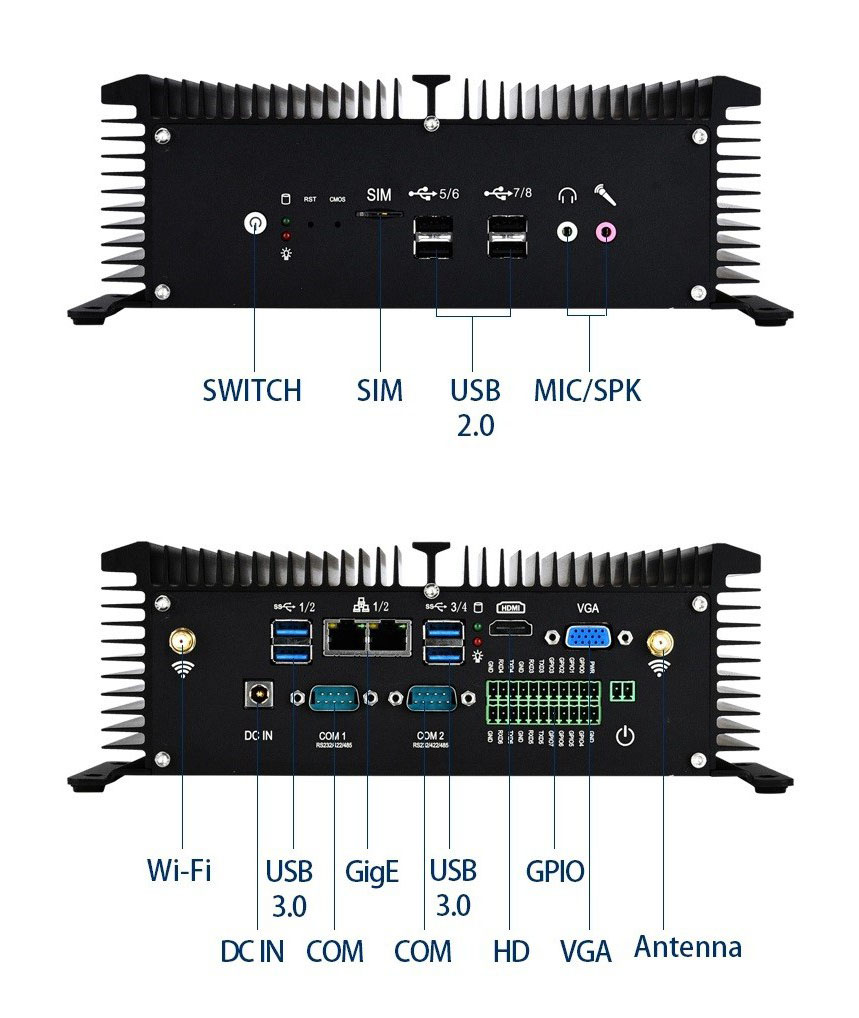

| Ethernet | 2 x GbE RJ45 Intel i211/i210AT |
| USB Ports | 4xUSB 3.0, 4xUSB 2.0 |
| COM Ports | 2x DB9 Serial ports |
| COM1,COM2: RS232/422/485 adjustable in BIOS |
| Display | 1 x VGA: Maximum resolution 1920×1080 @ 60Hz |
| 1 x HDMI: Maximum resolution 4096*2304 @ 24Hz |
| Graphic Cards | Intel HD Graphics 620 |

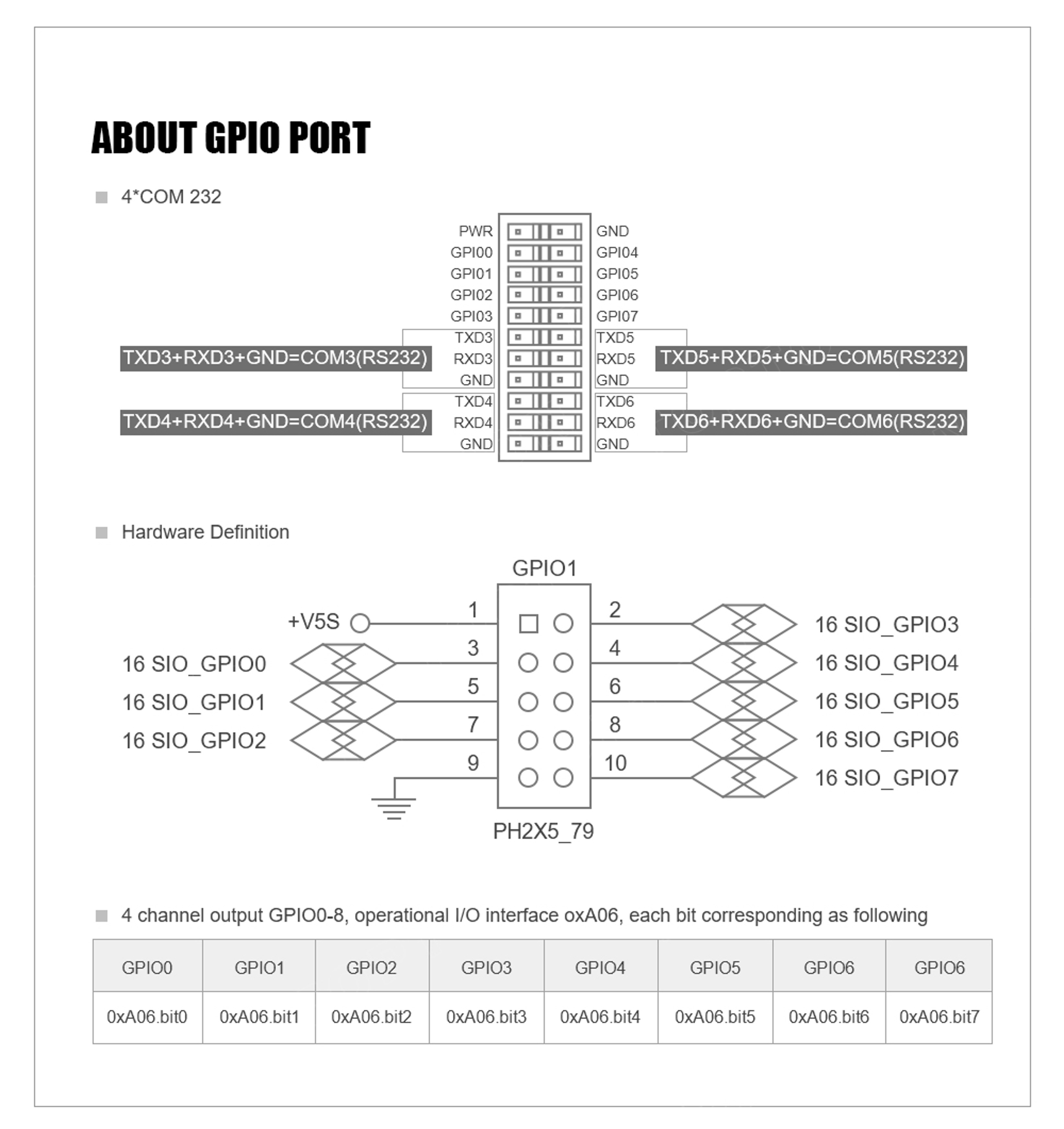

| GPIO | 8 x GPIO |
| 4 x RS-232 3 Wire (TXD3,RXD3/TXD4,RXD4/TXD5,RXD5/TXD6,RXD6) |
| Power Input | Support voltage DC 9V to 36V input |
| Audio | 1 x SPK 3.5mm,1 x MIC 3.5mm |
| SIM | 1 x SIM |
| Hard Drive Support | 1x mSATA SSD ( default install this type hard drive if you buy with SSD ) |
| 1x M.2 NVME SSD 2280 slot |
| 1x 2.5 inch HDD/SSD |
| Expansibility | 1x Mini-PCIe half height size, support WiFi/ bluetooth module |
| 1x Mini-PCIe full height size, support 3G/4G module, WiFi/bluetooth module |
| OS Support | Windows 7 |
| Windows 8 |
| Windows 10 |
| LINUX |
| WES 7 |
| Operating Temp | -20 ℃ ~ 70 ℃ |
| RH | 10%~90% @40℃ |

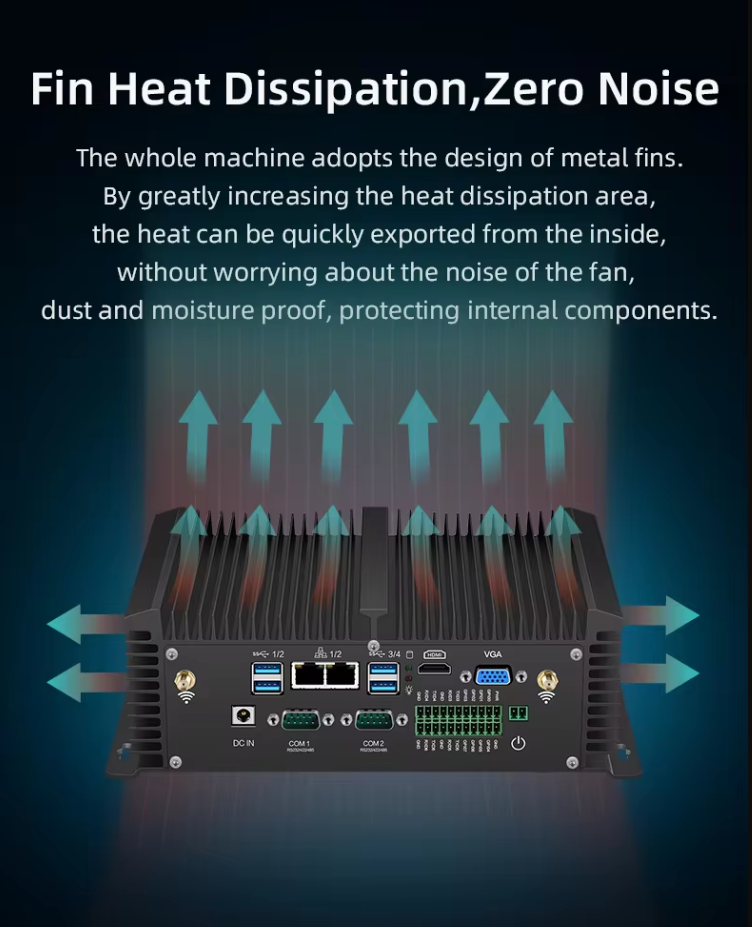

| Construction | Fanless passive cooling |
| Material | Aluminum alloy |
