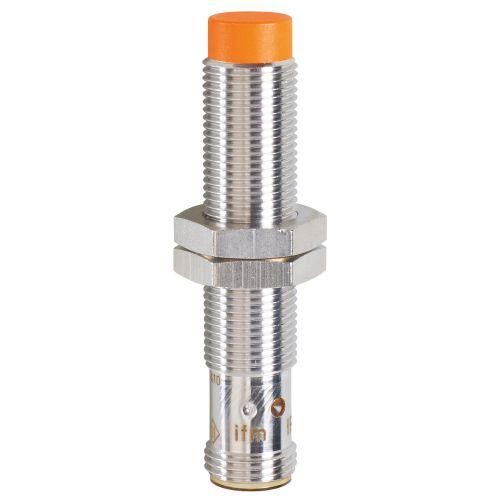

IF7101

IF7101

  • IF7101
  • IFM
596,915 ₫
Product characteristics
Electrical designPNP
Output functionnormally open
Sensing range [mm]4
Housingthreaded type
Dimensions [mm]M12 x 1 / L = 60
Electrical data
Operating voltage [V]10...30 DC
Current consumption [mA]< 10
Protection classIII
Reverse polarity protectionyes
Outputs
Electrical designPNP
Output functionnormally open
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Switching frequency DC [Hz]700
Short-circuit protectionyes
Overload protectionyes
Detection zone
Sensing range [mm]4
Real sensing range Sr [mm]4 ± 10 %
Operating distance [mm]0...3.24
Operating conditions
Ambient temperature [°C]-25...70
ProtectionIP 67
Mechanical data
Weight [g]27.2
Housingthreaded type
Mountingnon-flush mountable
Dimensions [mm]M12 x 1 / L = 60
Thread designationM12 x 1
Materialsbrass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Displays / operating elements
Display
switching status1 x LED, yellow
Electrical connection - plug
ConnectionConnector: 1 x M12; Contacts: gold-plated



Thêm vào giỏ hàng

Excellent price/performance ratio
Robust metal housing for use in harsh industrial environments
Very high switching frequency
Clearly visible indication of the switching status
For a precise position detection on machines

Inductive sensors are nowadays indispensable for industrial applications. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.





Model : IF7101
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
