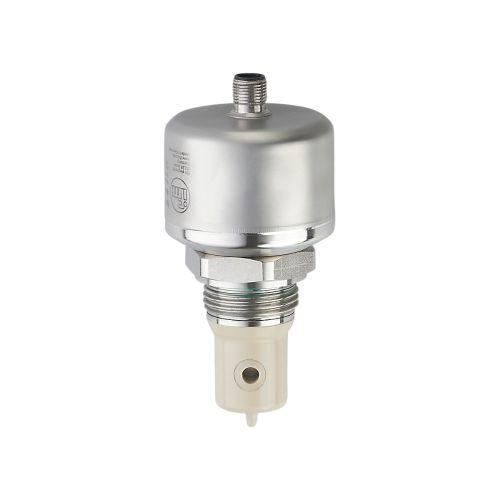

• LDL200
  • IFM
Mediaconductive liquids
Note on media
CIP liquids
Medium temperature [°C]-25...100; (< 1 h: 150)
Tank pressure [bar]-1...16
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 70
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]2
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Total number of outputs1
Output signalanalogue signal; IO-Link
Output functionanalogue output; scalable; selectable conductivity / temperature
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]500
Measuring/setting range
Conductivity measurement
Measuring range [µS/cm]100...1000000
Temperature measurement
Measuring range [°C]-25...150
Conductivity measurement
Accuracy (in the measuring range)2 % MW ± 25 µS/cm
Resolution [µS/cm]1
Drift [%/K]0,1 %/K MW ± 25 µS/cm
Repeatability1 % MW ± 25 µS/cm
Long-term stability0,5 % MW ± 25 µS/cm
Operating conditions
Ambient temperature [°C]-40...60
Storage temperature [°C]-40...85
ProtectionIP 68; IP 69K; (IP 68: 7 days / 3 m water depth / 0.3 bar)
Mechanical data
Weight [g]580.5
Materialsstainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)PEEK
Process connectionG 1 external thread Aseptoflex Vario
Electrical connection
ConnectionConnector: 1 x M12 (EN 61067-2-101); Contacts: gold-plated


Conductivity is the measure of a solution's ability to pass or carry an electric current. The term Conductivity is derived from Ohm's Law, E=I•R; where Voltage (E) is the product of Current (I) and Resistance (R); Resistance is determined by Voltage/Current. When a voltage is connected across a conductor, a current will flow, which is dependent on the resistance of the conductor.  Conductivity is simply defined as the reciprocal of the Resistance of a solution between two electrodes.


Model : LDL200
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
