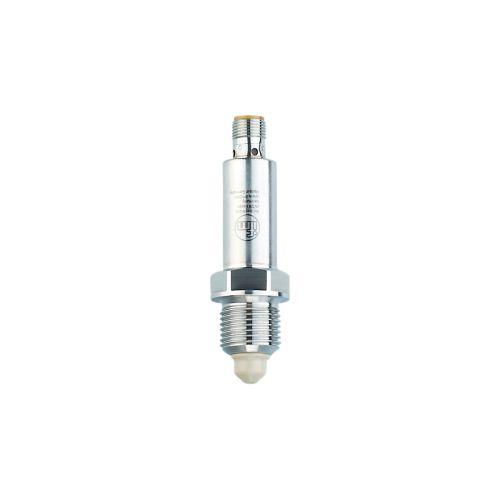

LMC100

  • LMC100
  • IFM
3,912,792

Number of inputs and outputs

Number of digital outputs: 2

Output signal

Switching signal; IO-Link

Electrical design

PNP/NPN

Output function

Normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

Yes

Type of short-circuit protection

Thermal, pulsed

Overload protection

Yes

Media

Water; hydrous media; oils; oil-based media; coolants; powder

Medium temperature [°C]

-25...100

Probe length [mm]

28

Tank pressure [bar]

-1...40

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

Yes

Response time [s]

< 0.5

Ambient temperature [°C]

-25...85

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Weight [g]

149

Dimensions [mm]

Ø 18.1 / L = 76.2

Materials

Stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

Stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

G 1/2 external thread

Display

Switching status

LEDs, yellow

Operating status

LEDs, green

Connection

Connector: 1 x M12; Contacts: gold-plated



For the reliable level control in tanks and containers

Two programmable switching outputs, one of them with IO-Link communication interface

Preset to water and hydrous media

Simple process connection via screw-in adapter

Reliable suppression of deposits or foam



Model : LMC100
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
