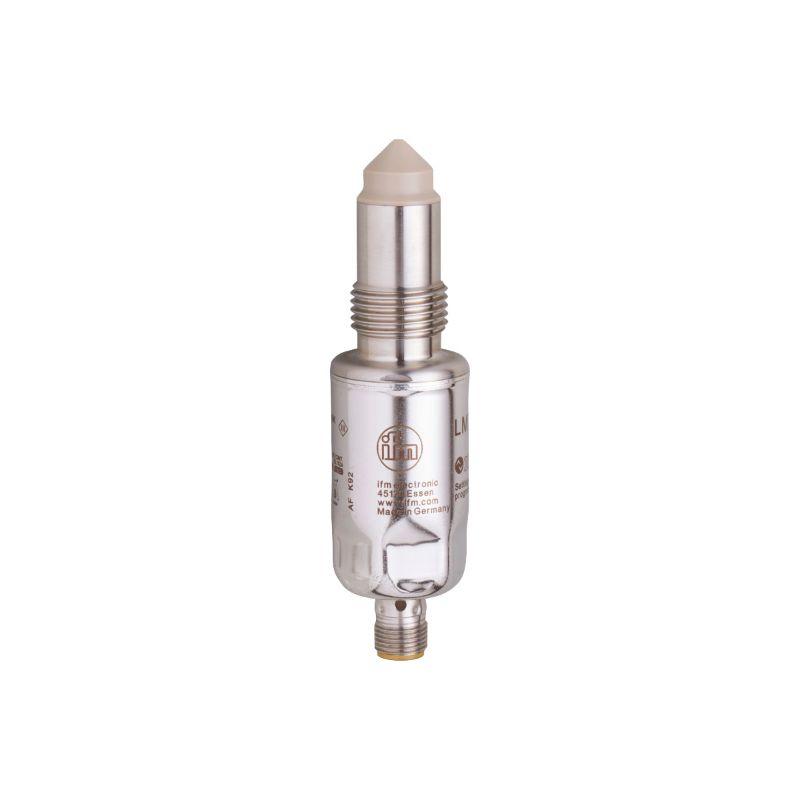

LMT100

  • LMT100
  • IFM
5,386,017

Number of inputs and outputs

Number of digital outputs: 2

Output signal

Switching signal; IO-Link

Electrical design

PNP/NPN

Output function

Normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

Yes

Type of short-circuit protection

Pulsed

Overload protection

Yes

Media

Hydrous media; liquids; viscous media; powder

Probe length [mm]

11

Tank pressure [bar]

-1...40

Oil, Water

Medium temperature [°C]

-40...100

Medium temperature short time [°C]

-40...150; (1 h)

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

Yes

Ambient temperature [°C]

-40...85

Note on ambient temperature:  Medium temperature

< 150 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Weight [g]

208.5

Materials

Stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Display

Switching status

LEDs, yellow

Operating status

LEDs, green

Connection

Connector: 1 x M12; Contacts: gold-plated



For the reliable level control in tanks and containers

Hygienic design for the requirements of the food and beverage industry

Use in liquid and viscous media and bulk materials

Differentiation of media by parameterisation of the switching outputs

Reliable suppression of deposits or foam



Model : LMT100
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
