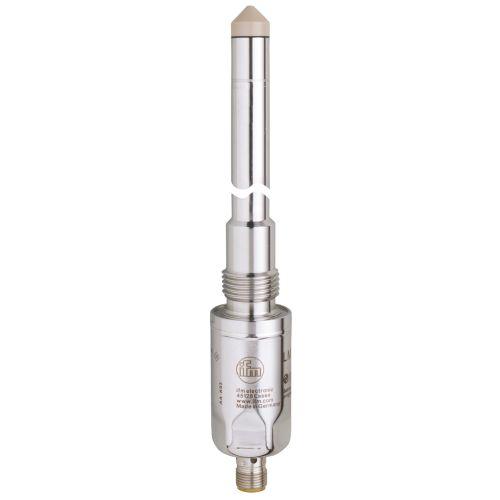

LMT104

  • LMT104
  • IFM
6,571,712

Number of inputs and outputs

Number of digital outputs: 2

Output signal

Switching signal; IO-Link

Electrical design

PNP/NPN

Output function

Normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

Yes

Type of short-circuit protection

Pulsed

Overload protection

Yes

Media

Hydrous media; liquids; viscous media; powder

Recommended media

Water; hydrous media; oils; oil-based media; powder

Probe length [mm]

153

Tank pressure [bar]

-1...40

Oil, Water:

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

Yes

Ambient temperature [°C]

-20...85

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Weight [g]

321.5

Materials

Stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM

Materials (wetted parts)

Stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; FKM

Process connection

G 1/2 external thread

Display

Switching status

LEDs, yellow

Operating status

LEDs, green

Connection

Connector: 1 x M12; Contacts: gold-plated



For the reliable level control in tanks and containers

Hygienic design for the requirements of the food and beverage industry

Use in liquid and viscous media and bulk materials

Differentiation of media by parameterisation of the switching outputs

Reliable suppression of deposits or foam



Model : LMT104
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
