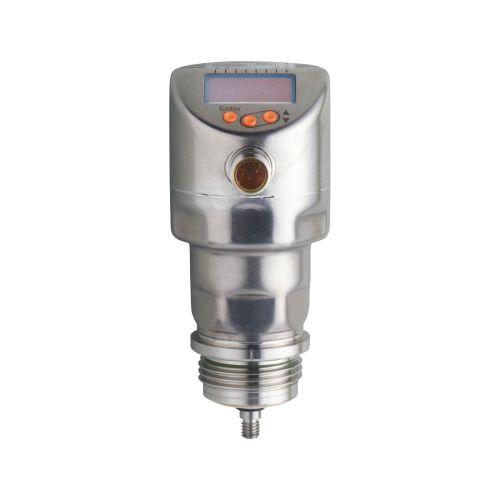

LR2750

  • LR2750
  • IFM
22,042,883

Number of inputs and outputs

Number of digital outputs: 1; Number of analogue outputs: 1

Media

Liquids

Output signal

Switching signal; analogue signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

1

Output function

Normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

150; (200 (...60 °C))

Number of analogue outputs

1

Analogue current output [mA]

4...20, invertible; (scalable)

Short-circuit protection

Yes

Type of short-circuit protection

Pulsed

Overload protection

Yes

Probe length L [mm]

150...2000

Recommended media

Water; hydrous media

Medium temperature [°C]

-40...150; (For 3-A applications, the medium temperature is limited to 121 °C and COP cleaning is required.)

Tank pressure [bar]

-1...40

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

Yes

Power-on delay time [s]

< 3

Ambient temperature [°C]

-40...80

Storage temperature [°C]

-40...100

Protection

IP 68; IP 69K

Weight [g]

401.5

Materials

Stainless steel (1.4404 / 316L); PEI; PFA; PBT; FKM

Materials (wetted parts)

Stainless steel (1.4404 / 316L); PEEK; EPDM

Process connection

G 1 Aseptoflex Vario

Display

Display unit

3 x LED, green

Switching status

2 x LED, yellow

Level

Alphanumeric display, 4-digit

Parameter setting

Alphanumeric display, 4-digit

Connection

Connector: 1 x M12; Contacts: gold-plated



For the reliable level control in tanks and containers

Hygienic design for the requirements of the food and beverage industry

Clearly visible 4-digit LED display

Modular system consisting of evaluation unit and probe

Adaptation to different container heights through shortening of the probe

Model : LR2750
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
