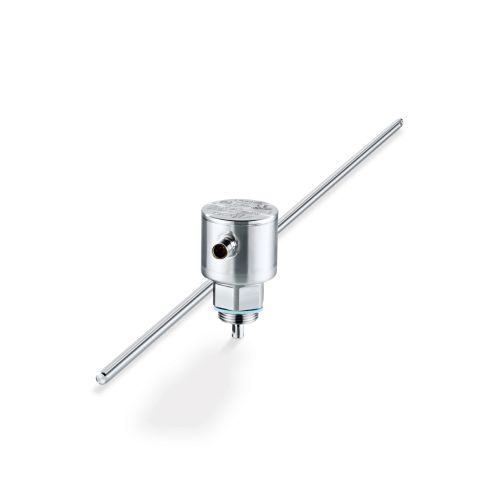

LR9020

  • LR9020
  • IFM
9,225,920

Number of inputs and outputs

Number of digital outputs: 1; Number of analogue outputs: 1

Process connection

G 3/4 external thread

Media

Hydrous coolants; oils; oil-based media; water; media similar to water

Dielectric constant of the medium

≥ 2; (for media with a dielectric constant of 2...20 (e.g. oils), a coaxial pipe is needed for operation)

Medium temperature [°C]

0...80; (90 < 1 h)

Tank pressure [bar]

-1...16

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 80

Protection class

III

Reverse polarity protection

Yes

Power-on delay time [s]

< 3

Output signal

Analogue signal; IO-Link

Number of digital outputs

1

Number of analogue outputs

1

Analogue current output [mA]

4...20

Max. load [Ω]

500

Analogue voltage output [V]

0...10

Min. load resistance [Ω]

2000

Overload protection

Yes

Probe length L [mm]

100...1600

Ambient temperature [°C]

0...60

Storage temperature [°C]

-25...80

Protection

IP 68; IP 69K

Weight [g]

430

Materials

Stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PEI

Materials (wetted parts)

Stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre

Connection

Connector: 1 x M12; Contacts: gold-plated



For the reliable level control in tanks and containers

Suitable for water, oils and coolants

Precise analogue output and user-friendly communication via IO-Link

Modular system consisting of evaluation unit and probe

Adaptation to different container heights through shortening of the probe

Model : LR9020
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
