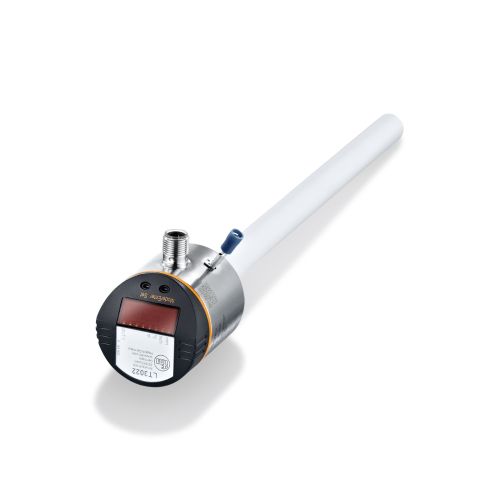

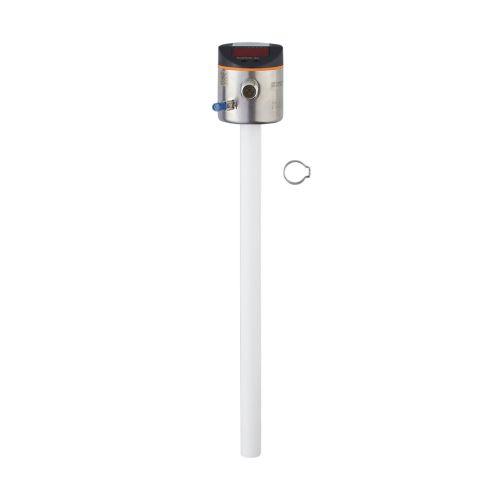

LT3022

  • LT3022
  • IFM
12,119,765

Media

Mineral oils ; hydrous coolants; oils; oil-based media; water; media similar to water

Probe length L [mm]

264

Dielectric constant of the medium

> 2

Cannot be used for

Extremely conductive media; adhering media; granulates; bulk material; acids; alkali

Tank pressure [bar]

0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)

Coolants

Medium temperature [°C]

0...35; (with climatic tube E43100)

Oil

Medium temperature [°C]

0...70

Medium temperature short time [°C]

0...90; (< 1 h)

Water

Medium temperature [°C]

0...35; (with climatic tube E43100 35...65 °C)

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

Yes

Power-on delay time [s]

< 3

Output signal

Switching signal; analogue signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

1

Output function

Normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

1

Analogue current output [mA]

4...20, invertible

Max. load [Ω]

500

Analogue voltage output [V]

...10, invertible

Min. load resistance [Ω]

2000

Short-circuit protection

Yes

Type of short-circuit protection

Thermal, pulsed

Overload protection

Yes

Probe length L [mm]

264

Parameter setting options

Hysteresis / window; normally open / normally closed; switching logic; current/voltage output; SP/rP position; adjustment OP; medium selection; offset setting; switch-on/switch-off delay.

Ambient temperature [°C]

0...60

Storage temperature [°C]

-25...80

Protection

IP 67

Weight [g]

353

Dimensions [mm]

Ø 16

Materials

Stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; NBR; PBT; PC; PA; PP; TPV

Materials (wetted parts)

PP

Display

Display unit

4 x LED, green (cm, inch, °C, °F)

Switching status

1 x LED, yellow

Measured values

Alphanumeric display, 4-digit

Parameter setting

Alphanumeric display, 4-digit

Connection

Connector: 1 x M12



Freely programmable switch-on and switch-off points with window function

Units with scalable analogue output and additional overflow alarm

Clearly visible LED display

Level and temperature monitoring with just one unit

Optional: two configurable switching outputs for leakage detection

Model : LT3022
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
