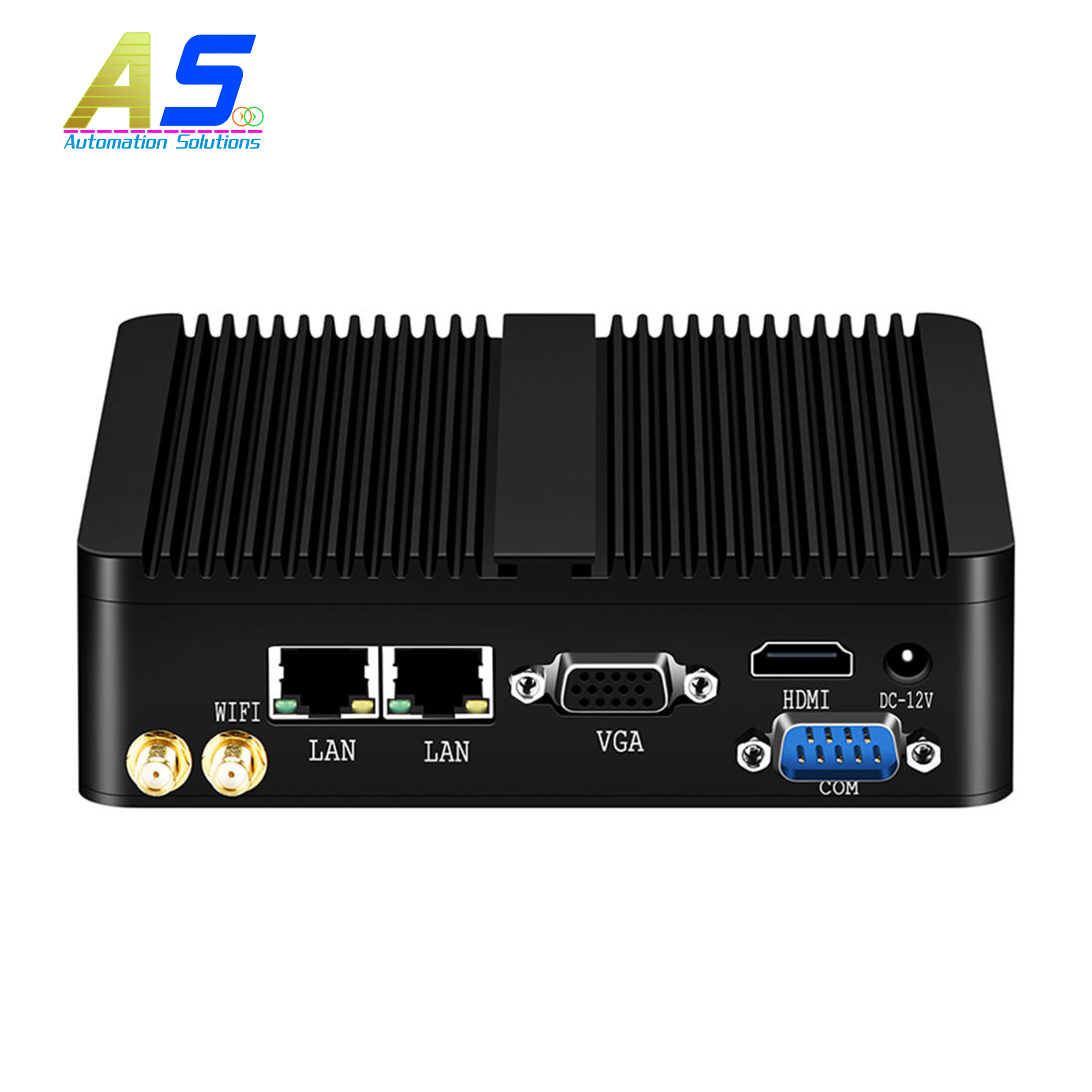

Model

X30G

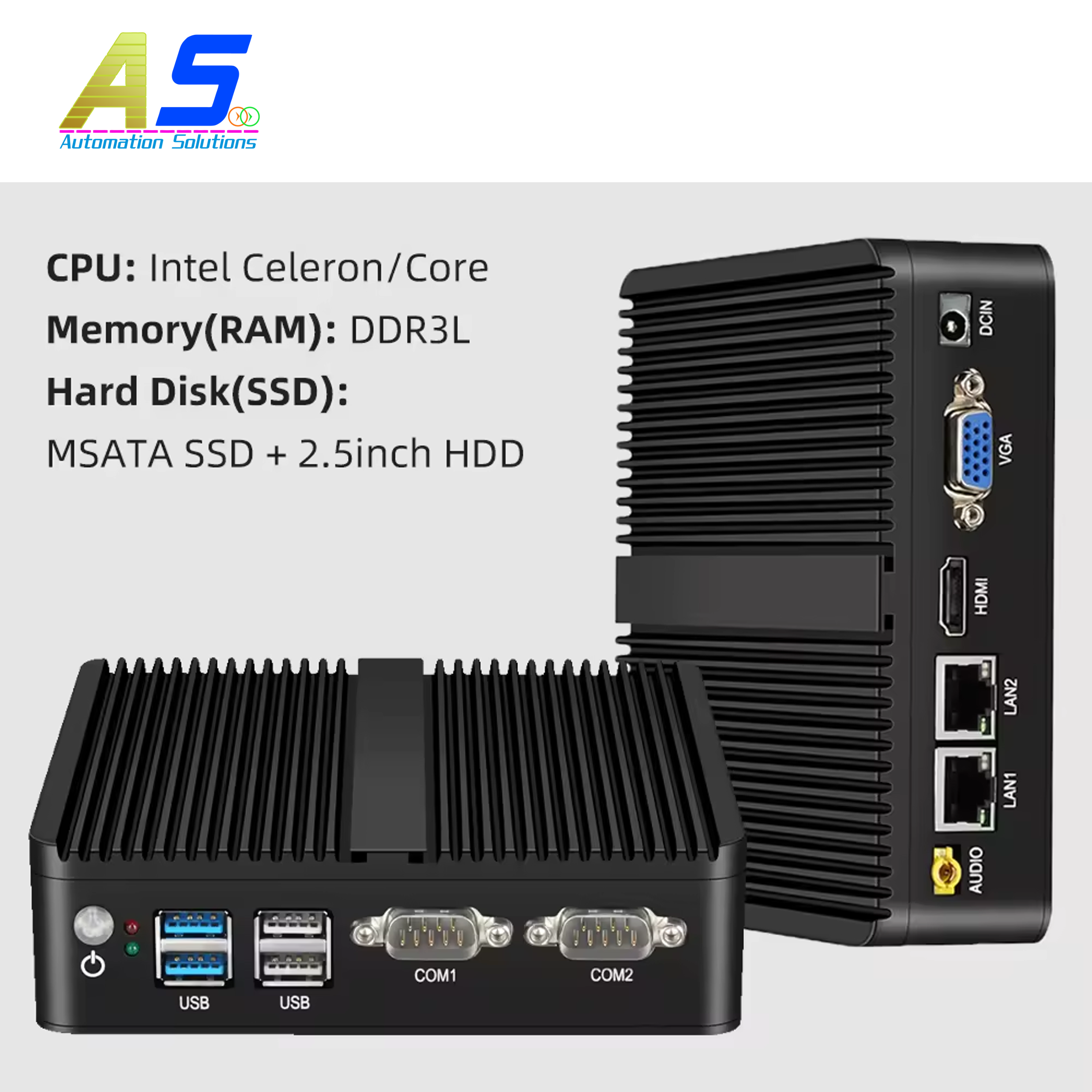

Processor

CPU

Intel Celeron J4125 (4 core 4 threads, 4M Cache, 2.00GHz, up to 2.70GHz, TDP: 10W)

BIOS

American

Graphics Card

Integrated

J4125:

Intel UHD Graphics 600

Graphics Base Frequency: 250MHz

Graphics Max Dynamic Frequency: 750MHz

DirectX* Support:12

Memory

Technique

1* Single Channel SODIMM, support DDR4 only

Max Ram Size

8GB

Socket

1*204-pin SO-DIMM

Display

VGA

Max Resolution 1920×1080@60Hz

HDMI

Max Resolution 4096x2160@30Hz(J4125), support 4K.

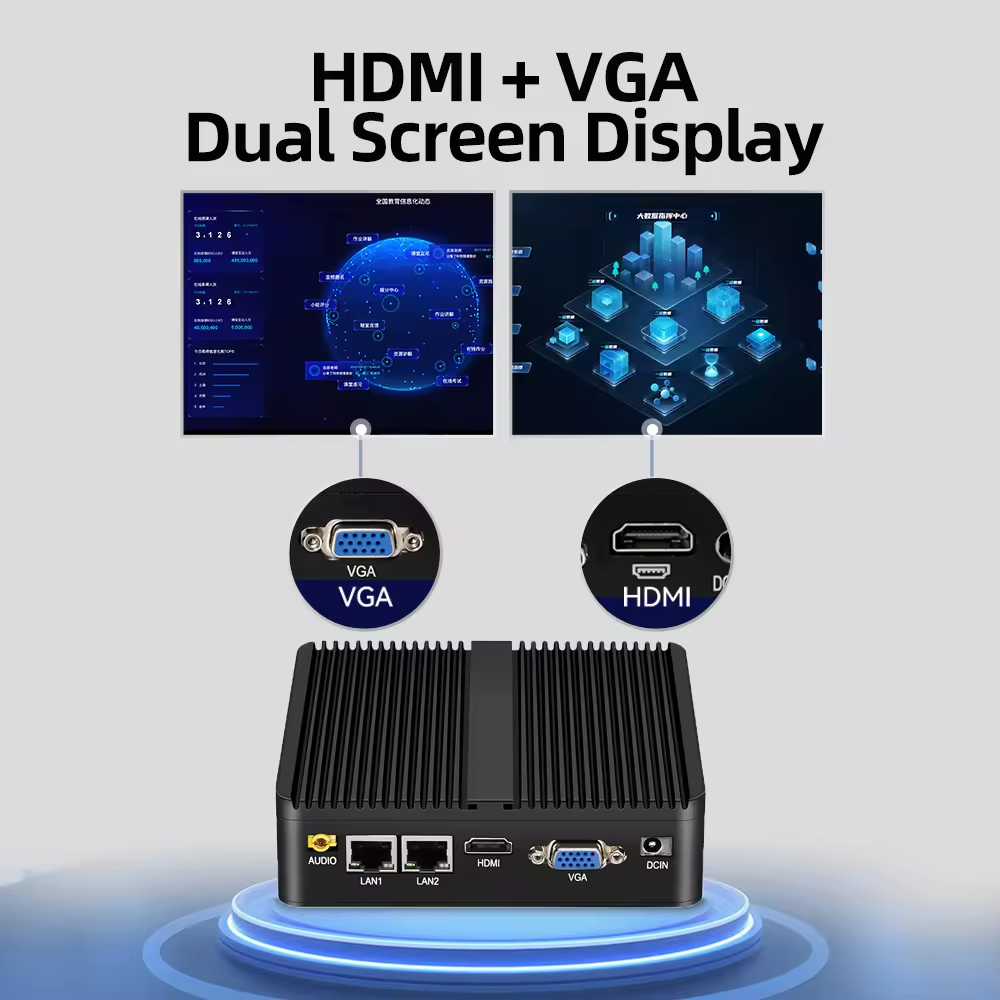

Dual Display

VGA+HDMI, Support for Synchronous or Independent display

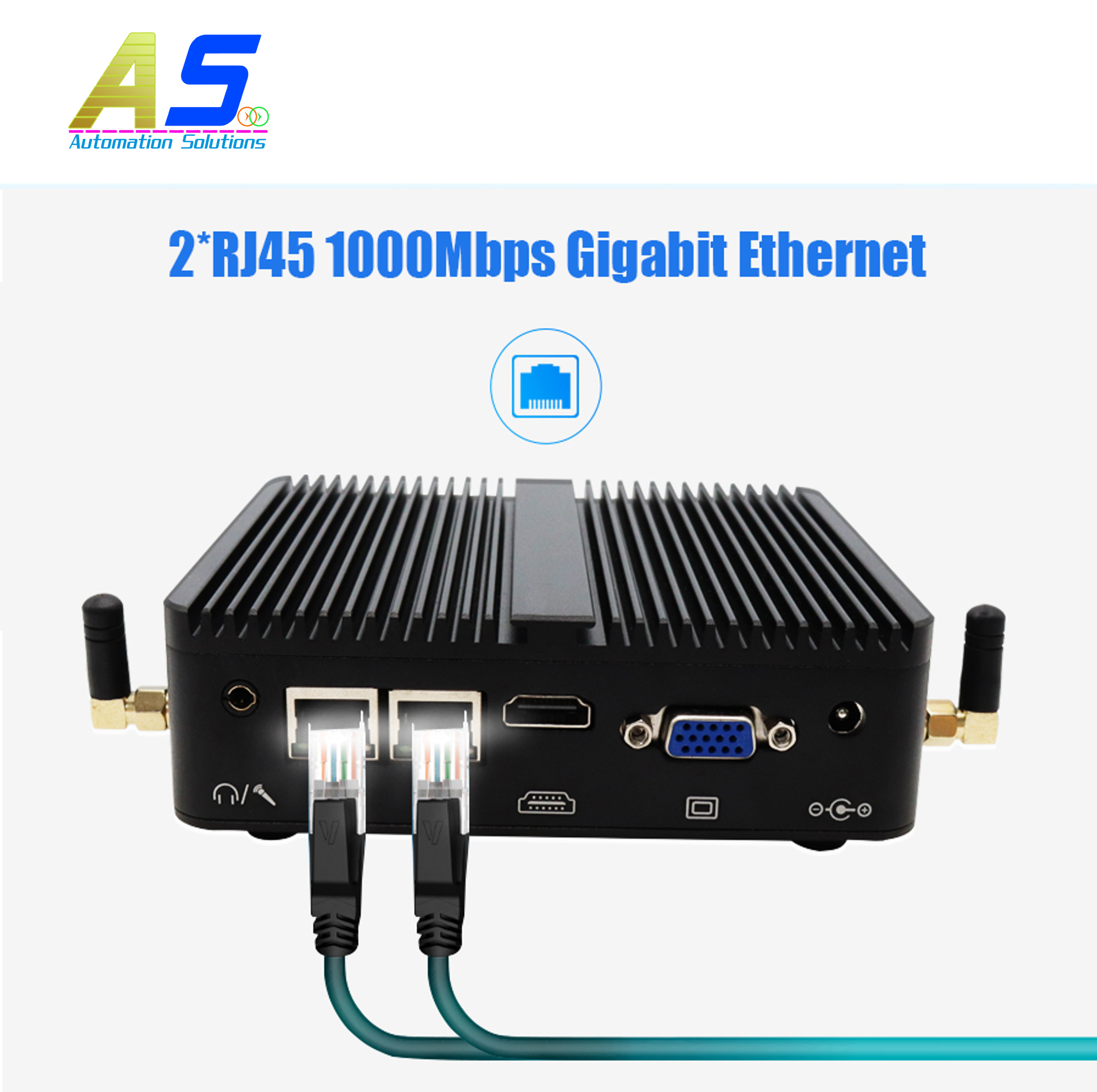

Ethernet

LAN

2*RJ45 10/100/1000/ Mbps Realtek 8111F

Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss.

Audio

Main System

Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out

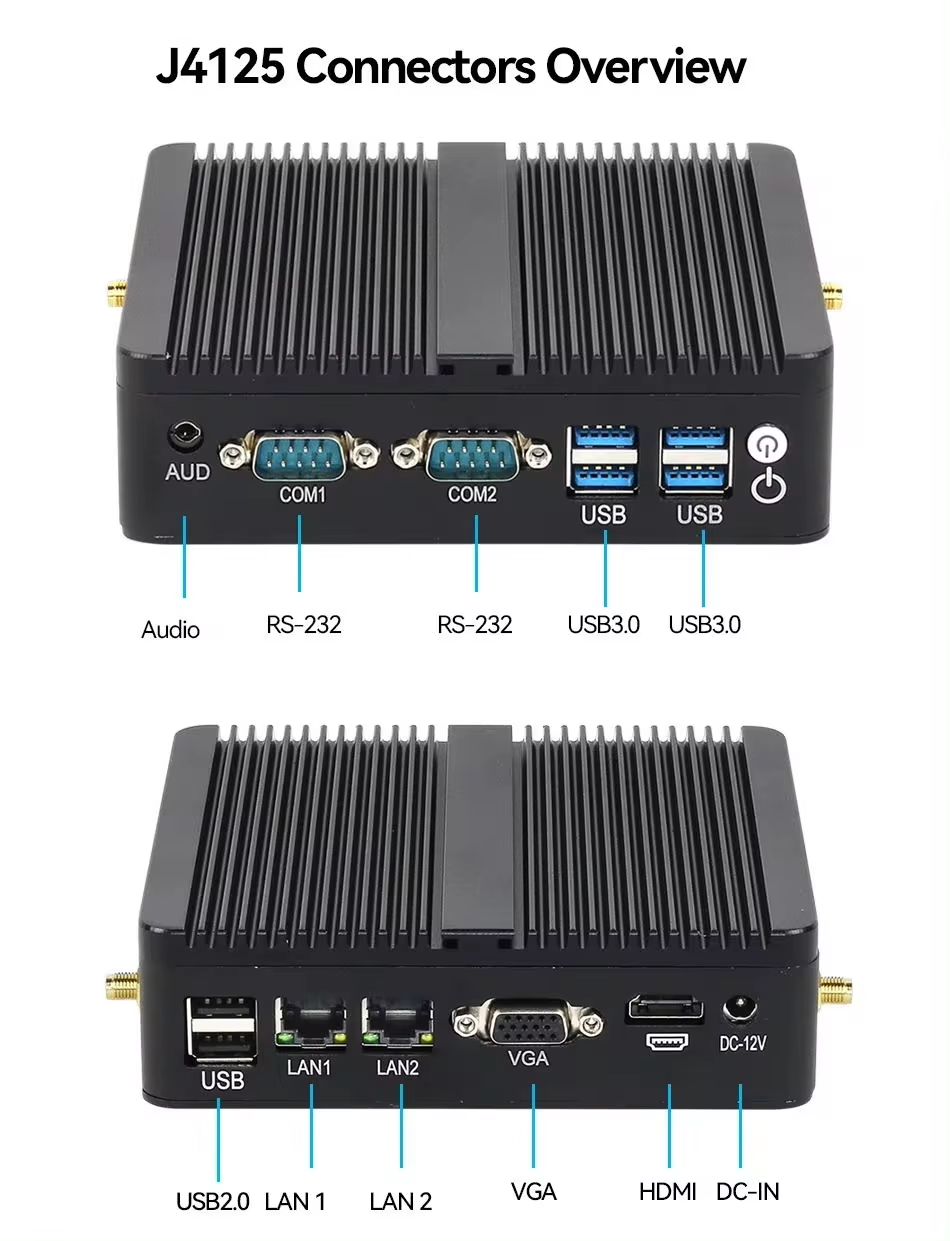

I/O

COM

2*RS232

USB

2* USB3.0 2*USB2.0

Other

Watchdog Timer

Supports (If you need this hardware, please let us know before payment)

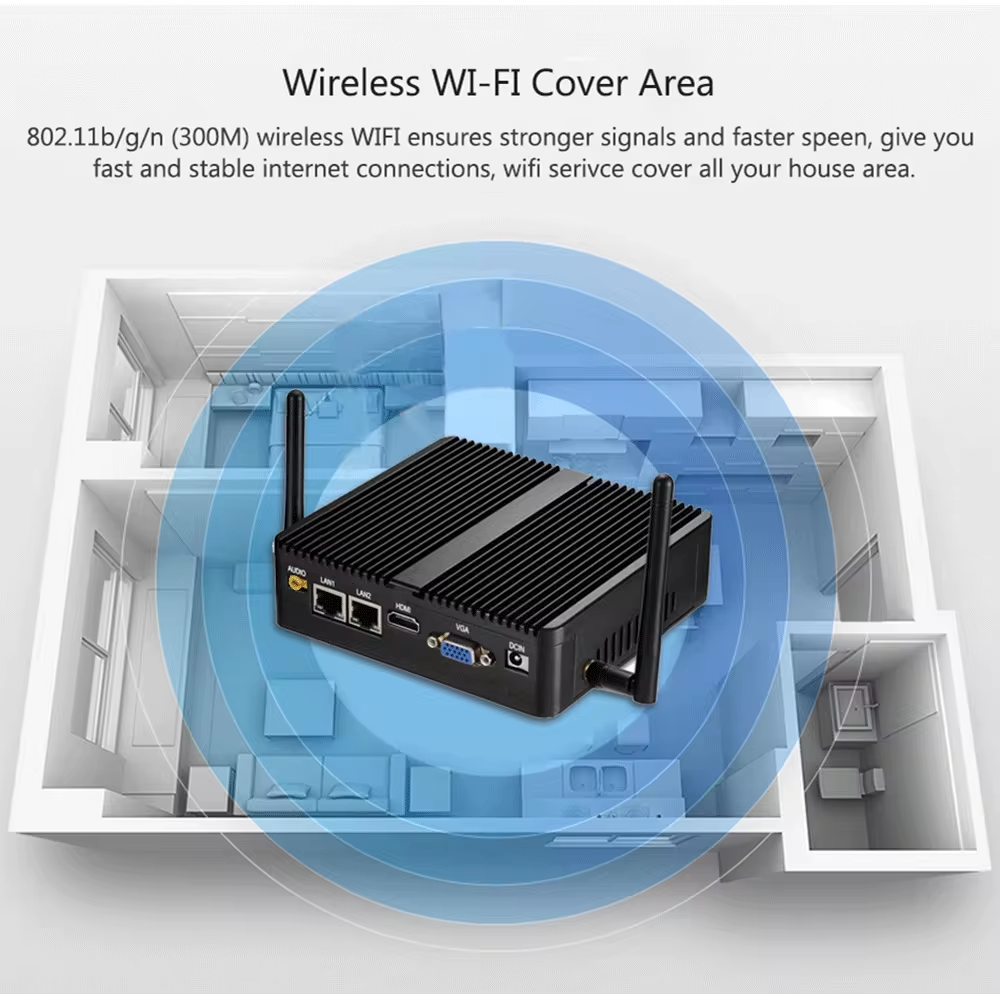

WIFI

WIFI module

with dual antennas,300M,802.11.b/g/n

Extension

Mini-PCIe

1* Half Height Mini PCIe

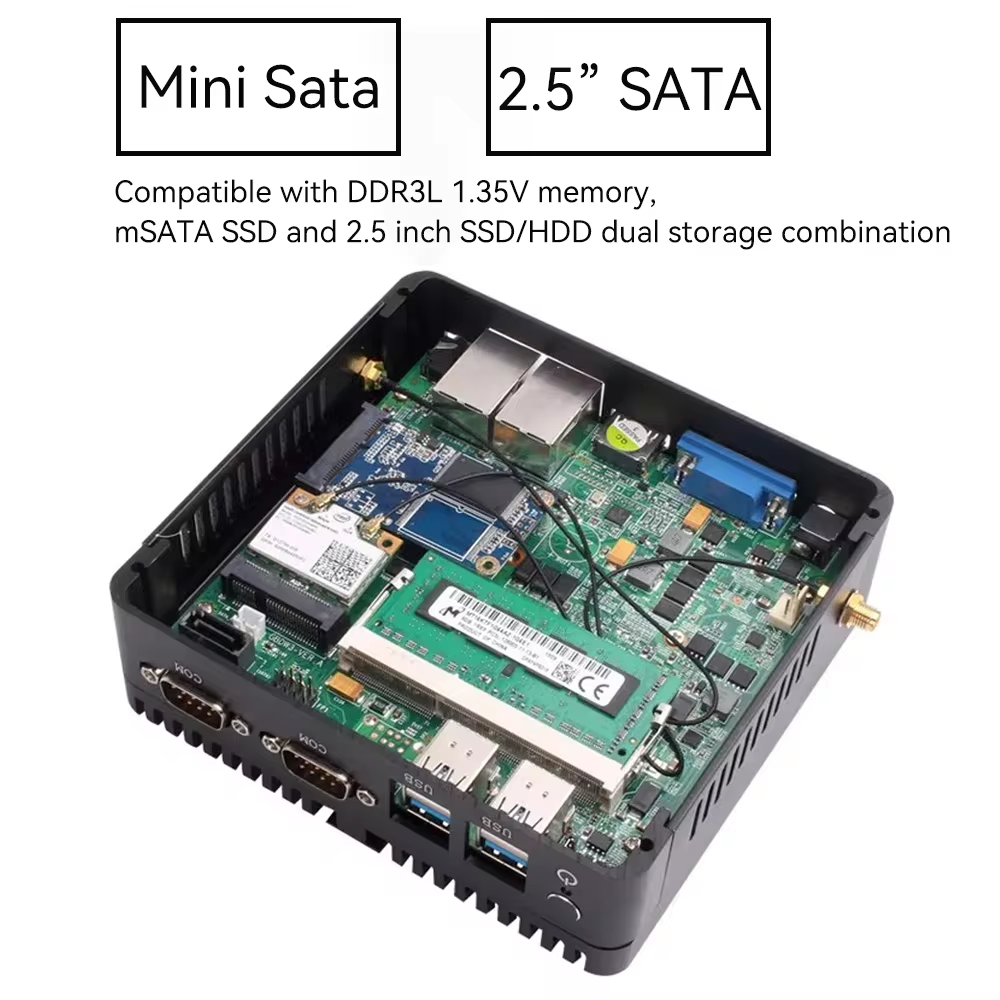

Storage

HDD

1*2.5” HDD SATA(Highest data conversion rate SATA2.0)

SSD

1*Full size mSATA Socket

Software

OS

Windows 8/ windows 10/ Linux/ ubuntu/ Centos etc.

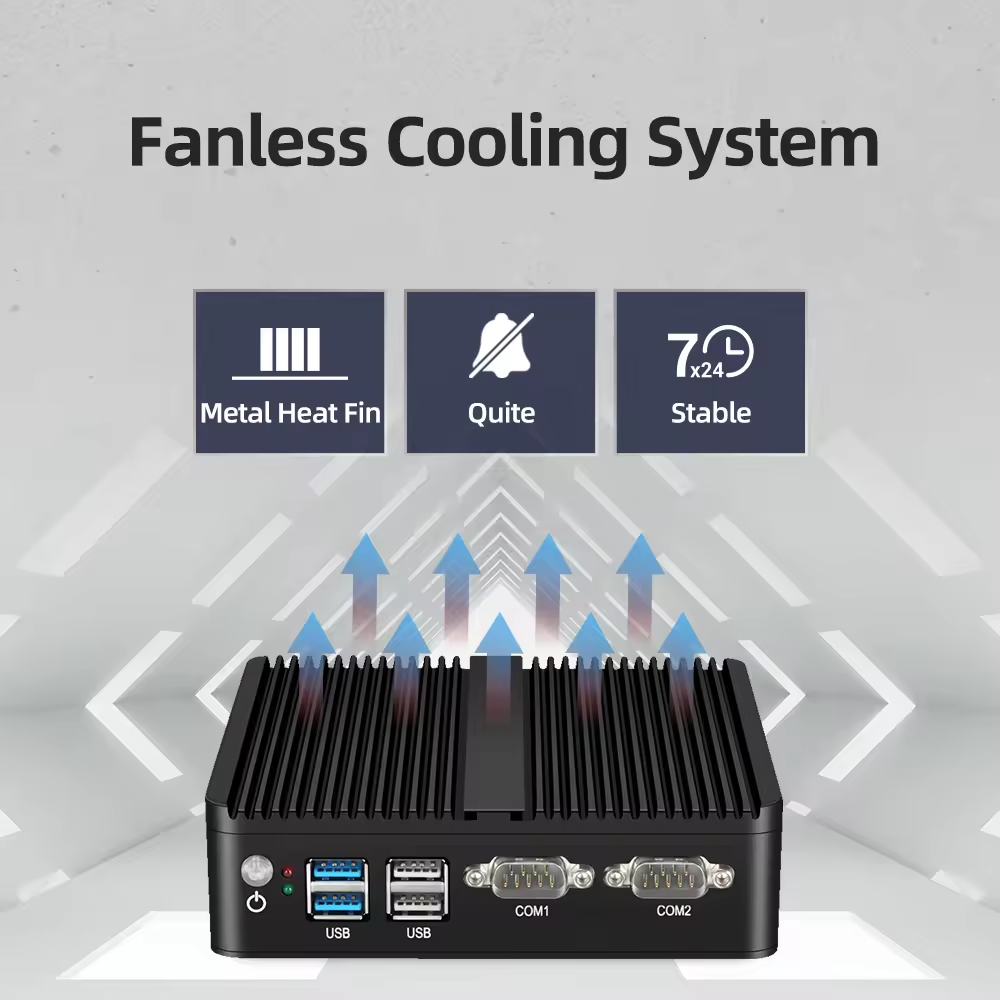

Cooling System

Fanless

Fanless Passive cooling with Heat Sink Aluminum Block

Power Consumption

Power Type

DC-IN5.5*2.5

Power Adapter

DC 12V5A/ 60W (AC TO DC, 100~ 240V)

TDP

7.5-15W

Physical Characteristics

Case material

Aluminum Alloy

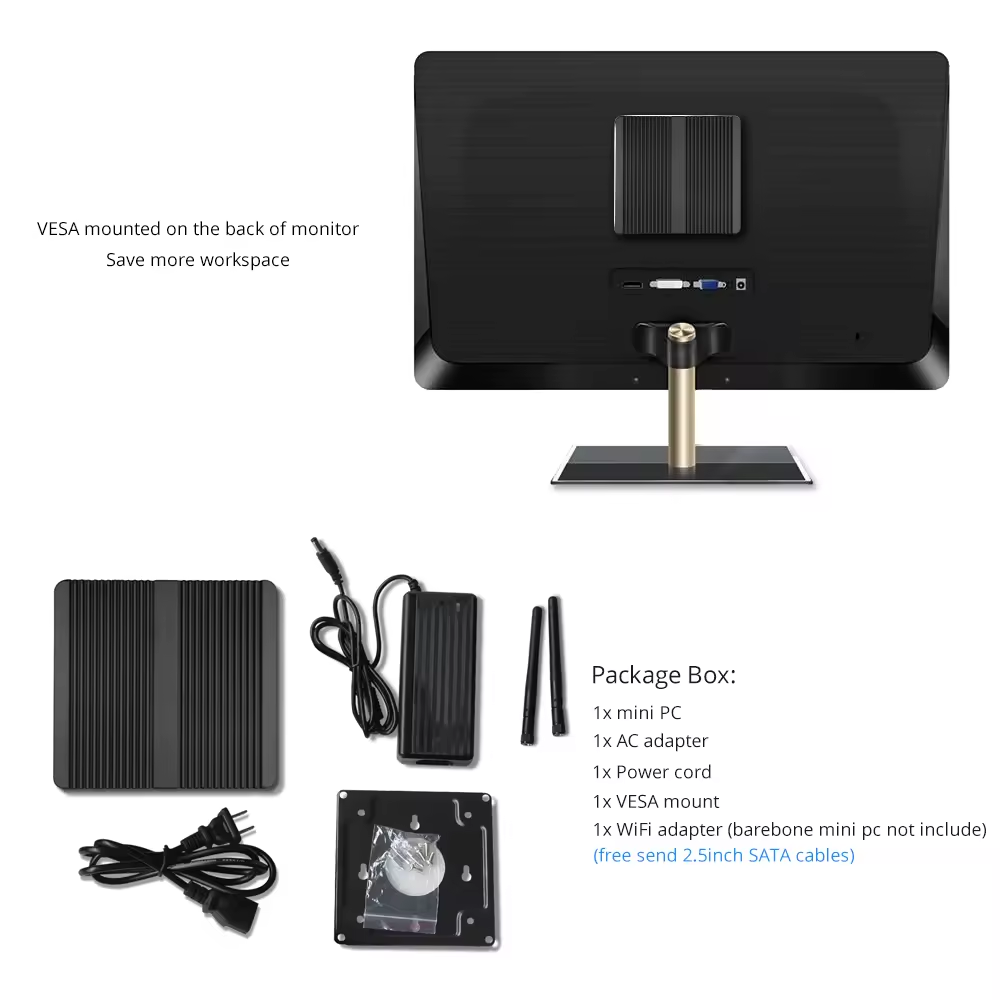

Installation

VESA/Wall/Desktop

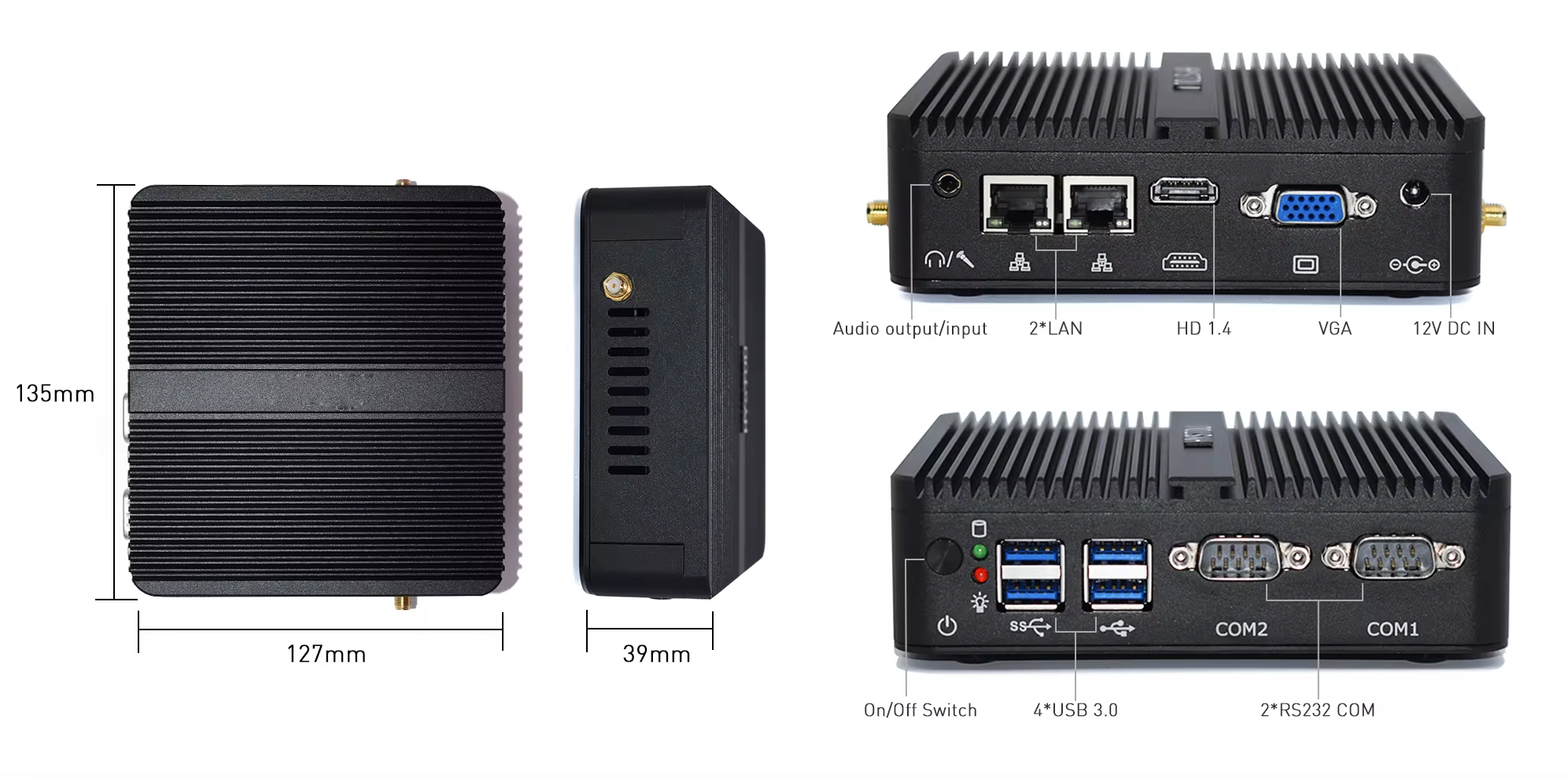

Dimensions

133*125*40mm

Weight

1.5 KG

Environment

Operating temperature

-20℃~ 65℃

Storage temperature

-20℃~ 85℃ (15- 35℃ recommended)

Operating humidity

5%-95% Relative humidity, no condensation
