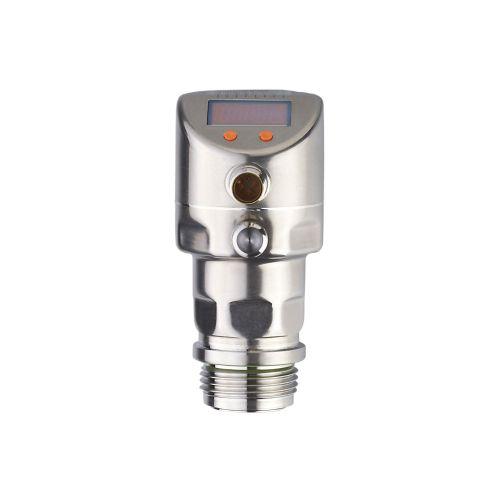

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Output signal

Switching signal; analogue signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

2

Output function

Normally open / normally closed; (parameterisable)

Number of analogue outputs

1

Analogue current output [mA]

4...20, invertible; (scalable)

Short-circuit protection

Yes

Type of short-circuit protection

Pulsed

Overload protection

Yes

Measuring range

-0.05...1 bar     -50...1000 mbar          -0.73...14.5 psi

Application

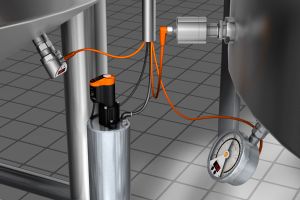

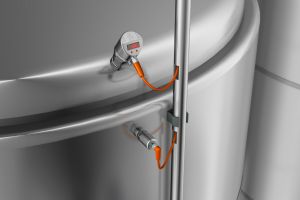

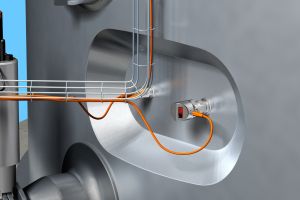

Hygienic systems

Media

Viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (145 max. 1h)

Pressure rating

10000 mbar     145 psi

Min. bursting pressure

30000 mbar     435 psi

Vacuum resistance [mbar]

-1000

Type of pressure

Relative pressure

No dead space

Yes

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

Yes

Integrated watchdog

Yes

2-wire

Operating voltage [V]

20...32 DC

Current consumption [mA]

3.6...21

Power-on delay time [s]

1

Max. load [Ω]

300

Step response time analogue output [ms]

45

3-wire

Operating voltage [V]

18...32 DC

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Max. voltage drop switching output DC [V]

2

Permanent current rating of switching output DC [mA]

250

Switching frequency DC [Hz]

125

Max. load [Ω]

(Ub - 10 V) / 20 mA

Min. response time of switching output (dAP) [ms]

3

Step response time analogue output [ms]

7

Measuring range

-0.05...1 bar              -50...1000 mbar            -0.73...14.5 psi

Set point SP

-48...1000 mbar                       -0.7...14.5 psi

Reset point rP

-50...998 mbar         -0.73...14.47 psi

Analogue start point

-50...750 mbar         -0.73...10.88 psi

Analogue end point

200...1000 mbar          2.9...14.5 psi

In steps of

1 mbar 0.01 psi

Response times

Damping for the switching output dAP [s]

0...30

Damping for the analogue output dAA [s]

0.01...99.99

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Weight [g]

356

Materials

Stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA

Materials (wetted parts)

Ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Display

Display unit

LED, green

Switching status

LED, yellow

Function display

Alphanumeric display, 4-digit

Measured values

Alphanumeric display, 4-digit

Display unit

mbar; kPa; psi; inH2O; mWS; % of the span

Process connection

Threaded connection G 1 external thread Aseptoflex Vario

Connection

Connector: 1 x M12; Contacts: gold-plated
