Overload-resistant ceramic measuring cell
Resistant to pressure peaks and vacuum
Fast installation and maintenance-free operation
Scalable analogue output
Intuitive, user-friendly handling

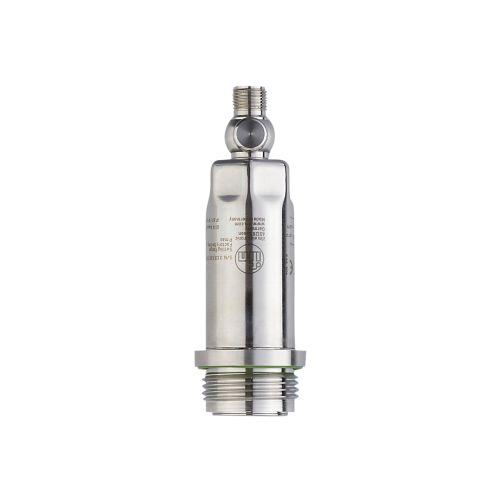

PM1703
- PM1703
- IFM
11,791,733 ₫
| Application | ||||
|---|---|---|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell | |||
| Application | hygienic systems | |||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||
| Medium temperature [°C] | -25...125; (150 max. 1h) | |||
| Pressure rating |
| |||
| Min. bursting pressure |
| |||
| Vacuum resistance [mbar] | -1000 | |||
| Type of pressure | relative pressure | |||
| No dead space | yes | |||
| MAWP (for applications according to CRN) [bar] | 60 | |||
| Electrical data | ||||
| Operating voltage [V] | 18...30 DC | |||
| Min. insulation resistance [MΩ] | 100; (500 V DC) | |||
| Protection class | III | |||
| Reverse polarity protection | yes | |||
| Integrated watchdog | yes | |||
| 2-wire | ||||
| Current consumption [mA] | 3.5...21.5 | |||
| Power-on delay time [s] | 1 | |||
| 3-wire | ||||
| Current consumption [mA] | < 45 | |||
| Power-on delay time [s] | 0.5 | |||
| Inputs / outputs | ||||
| Number of inputs and outputs | Number of analogue outputs: 1 | |||
| Outputs | ||||
| Total number of outputs | 1 | |||
| Output signal | analogue signal | |||
| Number of analogue outputs | 1 | |||
| Analogue current output [mA] | 4...20; (scalable) | |||
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) | |||
| Short-circuit proof | yes | |||
| Overload protection | yes | |||
| Measuring/setting range | ||||
| Measuring range |
| |||
| Analogue start point |
| |||
| Analogue end point |
| |||
| In steps of |
| |||
| Factory setting |
| |||
| Response times | ||||
| Damping for the analogue output dAA [s] | 0...4 | |||
| 2-wire | ||||
| Step response time analogue output [ms] | 30 | |||
| 3-wire | ||||
| Step response time analogue output [ms] | 7 | |||
| Operating conditions | ||||
| Ambient temperature [°C] | -25...80 | |||
| Storage temperature [°C] | -40...100 | |||
| Protection | IP 67; IP 68; IP 69K | |||
| Mechanical data | ||||
| Weight [g] | 281 | |||
| Materials | stainless steel (1.4404 / 316L); PBT | |||
| Materials (wetted parts) | ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 | |||
| Min. pressure cycles | 100 million | |||
| Tightening torque [Nm] | 35; (recommended tightening torque depends on lubrication, seal and pressure rating) | |||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||
| Displays / operating elements | ||||
| Display unit | bar; psi; MPa | |||
| Electrical connection | ||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | |||
