Overload-resistant ceramic measuring cell
Resistant to pressure peaks and vacuum
Fast installation and maintenance-free operation
Scalable analogue output
Intuitive, user-friendly handling

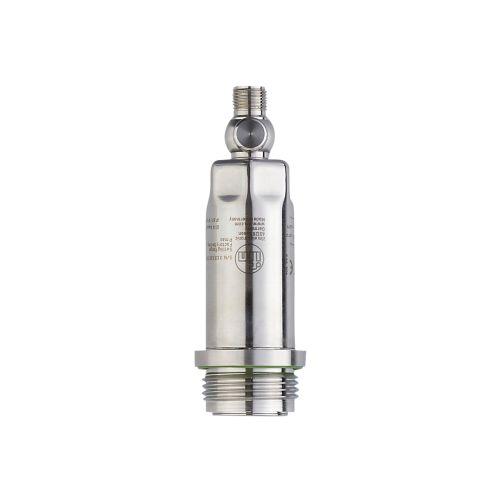

PM1704
- PM1704
- IFM
11,791,733 ₫
| Application | |||||
|---|---|---|---|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell | ||||
| Application | hygienic systems | ||||
| Media | viscous media and liquids with suspended particles; liquids and gases | ||||
| Medium temperature [°C] | -25...125; (150 max. 1h) | ||||
| Pressure rating |
| ||||
| Min. bursting pressure |
| ||||
| Vacuum resistance [mbar] | -1000 | ||||
| Type of pressure | relative pressure | ||||
| No dead space | yes | ||||
| MAWP (for applications according to CRN) [bar] | 50 | ||||
| Electrical data | |||||
| Operating voltage [V] | 18...30 DC | ||||
| Min. insulation resistance [MΩ] | 100; (500 V DC) | ||||
| Protection class | III | ||||
| Reverse polarity protection | yes | ||||
| Integrated watchdog | yes | ||||
| 2-wire | |||||
| Current consumption [mA] | 3.5...21.5 | ||||
| Power-on delay time [s] | 1 | ||||
| 3-wire | |||||
| Current consumption [mA] | < 45 | ||||
| Power-on delay time [s] | 0.5 | ||||
| Inputs / outputs | |||||
| Number of inputs and outputs | Number of analogue outputs: 1 | ||||
| Outputs | |||||
| Total number of outputs | 1 | ||||
| Output signal | analogue signal | ||||
| Number of analogue outputs | 1 | ||||
| Analogue current output [mA] | 4...20; (scalable) | ||||
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) | ||||
| Short-circuit proof | yes | ||||
| Overload protection | yes | ||||
| Measuring/setting range | |||||
| Measuring range |
| ||||
| Analogue start point |
| ||||
| Analogue end point |
| ||||
| In steps of |
| ||||
| Factory setting |
| ||||
| Response times | |||||
| Damping for the analogue output dAA [s] | 0...4 | ||||
| 2-wire | |||||
| Step response time analogue output [ms] | 30 | ||||
| 3-wire | |||||
| Step response time analogue output [ms] | 7 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...80 | ||||
| Storage temperature [°C] | -40...100 | ||||
| Protection | IP 67; IP 68; IP 69K | ||||
| Mechanical data | |||||
| Weight [g] | 281.5 | ||||
| Materials | stainless steel (1.4404 / 316L); PBT | ||||
| Materials (wetted parts) | ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 | ||||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario | ||||
| Displays / operating elements | |||||
| Display unit | bar; psi; MPa | ||||
| Electrical connection | |||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||||
Model : PM1704
