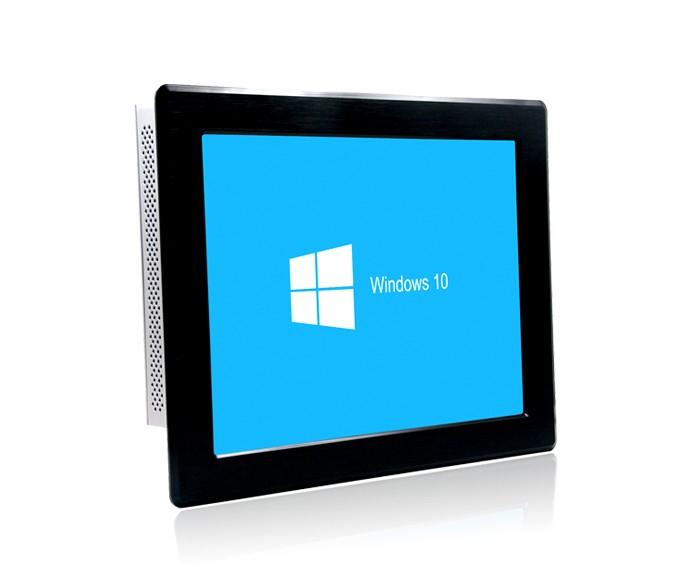

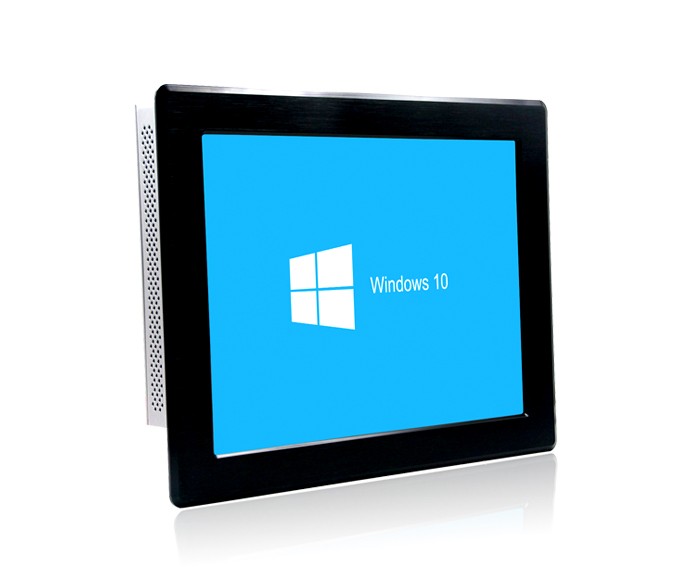

PPC-BT15A

  • PPC-BT15A
17,613,251
PROCESSORCPUOnboard Intel Celeron Baytrail-D/I/M Processor
RAMOnboard 2GB/4GB DDR3 1066/1333MHz,1 RAM slot to expand 8GB DDR3 RAM max.
STORAGEOnboard SSD16/32/64/128G  (optional)
SATA and MSATA,HDD or SSD (optional)
NETWORK2*RTL8111E RJ45 1000M LAN

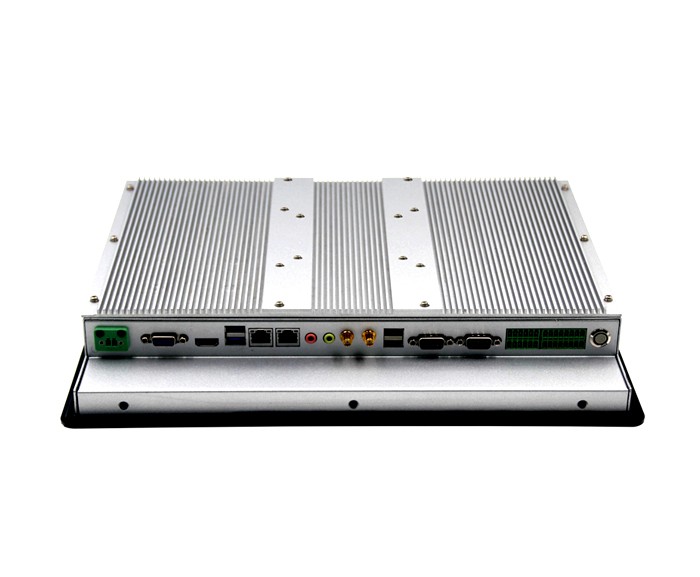

I/O INTERFACE5*RS-232, 1*RS422/485,2*DB9 RS-232 3* 3pin RS-232
2*USB2.0,2*USB3
1*14BIT GPIO Connector
1*LINE OUT 1*MIC
2*Wifi Antenna port
1*POWER ON/OFF switch
1*VGA Maximum resolution 2048x1536 1*HDMI Maximum 3200*2000@60HZ
EXPANSION BUS1* full size Mini PCIE slot
WATCHDOG0-255 second, Sample code optional
Physical characteristicsSize(mm)378.6*300.6*59.3
Weight(kgs)6kg
O/S SUPPORTOperation SystemSupport Windows 7/Windows8/Windows8.1/Windows10/Linux/Android
POWER SUPPLYINPUTSingle input DC12V 5A   +/-5%
Power Consumption20W
Battery ModuleModule for management of lithium-ion batteries + battery indicator (optional)

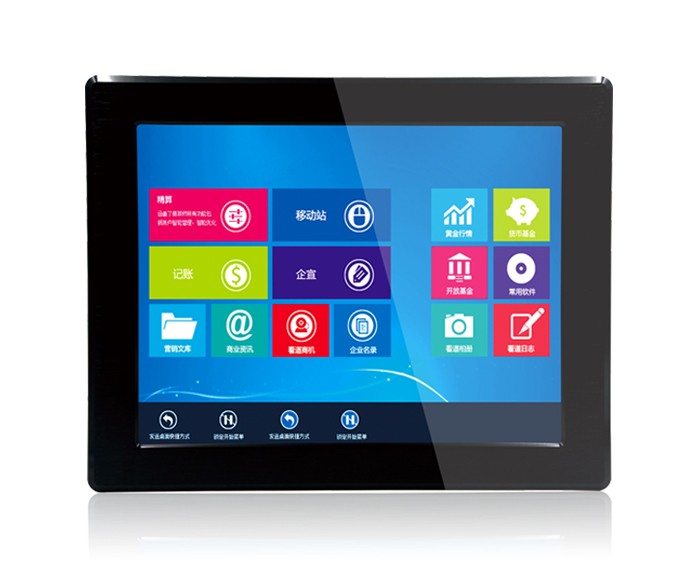

LED DISPLAYDISPLAY TYPE15inch TFT LED
Maximun Resolutions1024*768
View80 (LEFT), 80 (RIGHT), 70 (UP), 70 (DOWN)
Lumens (cd/m²)350cd/m²
Contrast400:1
Backlight Life30,000 hrs (Min)
TOUCH PANELTYPE5 Wires Resistive touch panel
Light Transmittance≥85%
Controller InterfaceUSB port
Durability(Touch Times)>3500 million times
ENVIRONMENTWorking Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +85℃
Relative humidity0% ~ 90%Relative humidity, none condensation
EMCCE, FCC Class B, BSMI
CERTIFICATECB, CCC, BSMI, UL
Front panel protectionIP65


◆ Onboard Intel Baytrail-D/I/M Processor

◆ 15inch TFT LED display and 5 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and Mini SATA

◆ Support 3G/WIFI by mPCIe

◆ Reserve 2 Group Phoenix Connector for custom function

◆ DC12V5A power supply

◆ Using fanless design



Model : PPC-BT15A
Nhập khẩu và phân phối: An Sinh Automation Company
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
