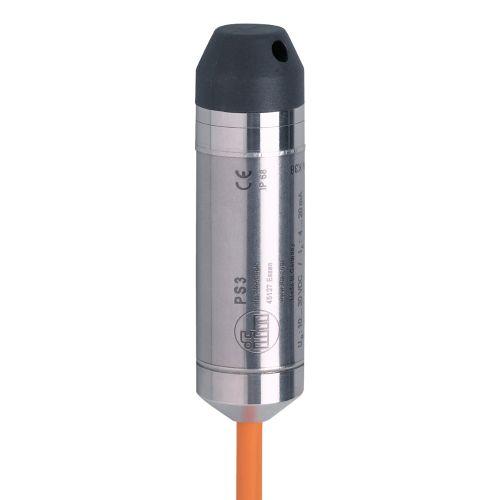

PS3208

  • PS3208
  • IFM
11,521,987

Output signal

Analogue signal

Number of analogue outputs

1

Analogue current output [mA]

4...20

Max. load [Ω]

700; (Ub = 24 V; (Ub - 10 V) / 20 mA)

Short-circuit protection

Yes

Measuring range

0...0.25 bar      0...250 mbar

Design

With capillary tube for pressure compensation

Media

Liquids

Medium temperature [°C]

-10...50

Pressure rating [bar]

2

Min. bursting pressure [bar]

2.4

Type of pressure

Relative pressure

Operating voltage [V]

10...30 DC

Protection class

III

Reverse polarity protection

Yes

Ambient temperature [°C]

-10...50

Storage temperature [°C]

-30...80

Protection

IP 68

Weight [g]

548

Materials

Stainless steel (1.4571/316Ti ); PA

Connection

Cable: 5 m, PUR, Ø 7.5 mm; Core insulation:, PVC



Low-cost, simple level measurement

Pressure compensation via internally vented cable

Reduced wiring complexity when operated as two-wire current loop

High overall accuracy and long-term stability

Robust stainless steel housing with high ingress resistance

Model : PS3208
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
