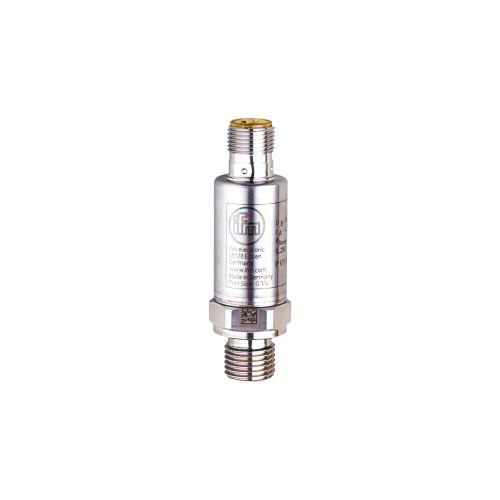

• PT5500
  • IFM
Applicationfor mobile applications
Medialiquids and gases
Medium temperature [°C]-40...125
Pressure rating [bar]1000
Note on pressure rating
Min. bursting pressure [bar]1700
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]8...32 DC
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω](Ub - 8 V) / 20 mA
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...400
Response times
Step response time analogue output [ms]2
Operating conditions
Ambient temperature [°C]-40...100
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]59
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12; Maximum cable length: 30 m

For the reliable detection of the system pressure in mobile machines
Robust stainless steel housing with high shock and vibration resistance
Compact housing for use where space is restricted
Lifespan of more than 60 million pressure cycles
With long-term stability thanks to high repeatability and low linearity error

The pressure transmitters of the PT and PU series reliably detect the system pressure in machines, plants and hydraulic power units of industrial and mobile applications. Designed without any seals, the transmitters can also be used in gaseous media.
The compact housing ensures flexible integration even where space is limited. The robust units offer high shock, vibration and pressure resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the analogue measured values ensure good long-term stability. These sensors provide excellent measurement dynamics with a very short step response time for immediate reaction to fast pressure changes.

Model : PT5500
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
