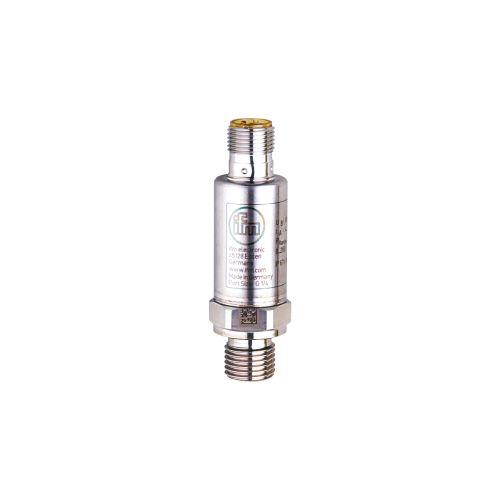

• PU5415
  • IFM
Applicationfor industrial applications
Medialiquids and gases
Medium temperature [°C]-40...90
Pressure rating [bar]15
Note on pressure rating
Min. bursting pressure [bar]200
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
Electrical data
Operating voltage [V]16...36 DC
Current consumption [mA]< 12
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Inputs / outputs
Number of inputs and outputsNumber of analogue outputs: 1
Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue voltage output [V]0...10
Min. load resistance [Ω]2000
Short-circuit proofyes
Overload protectionyes
Measuring/setting range
Measuring range [bar]0...6
Response times
Step response time analogue output [ms]1
Operating conditions
Ambient temperature [°C]-40...90
Storage temperature [°C]-40...100
ProtectionIP 67; IP 69K
Mechanical data
Weight [g]58.5
Materials1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)1.4542 (17-4 PH / 630)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Electrical connection
ConnectionConnector: 1 x M12


Reliable detection of system pressure in industrial applications
High shock and vibration resistance
Excellent repeatability and low linearity error
Lifespan of more than 60 million pressure cycles
Compact and robust stainless steel housing for use where space is restricted

The pressure transmitters of the PT and PU series reliably detect the system pressure in machines, plants and hydraulic power units of industrial and mobile applications. Designed without any seals, the transmitters can also be used in gaseous media.
The compact housing ensures flexible integration even where space is limited. The robust units offer high shock, vibration and pressure resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the analogue measured values ensure good long-term stability. These sensors provide excellent measurement dynamics with a very short step response time for immediate reaction to fast pressure changes.

Model : PU5415
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
