| Application | |||||||
|---|---|---|---|---|---|---|---|
| Media | water; glycol solutions; air; oils | ||||||
| Note on media |
| ||||||
| Medium temperature [°C] | -20...100 | ||||||
| Pressure rating [bar] | 50 | ||||||
| MAWP (for applications according to CRN) [bar] | 50 | ||||||
| Electrical data | |||||||
| Operating voltage [V] | 18...30 DC | ||||||
| Current consumption [mA] | < 100 | ||||||
| Protection class | III | ||||||
| Reverse polarity protection | yes | ||||||
| Power-on delay time [s] | 10 | ||||||
| Inputs / outputs | |||||||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||
| Outputs | |||||||
| Total number of outputs | 2 | ||||||
| Output signal | switching signal; analogue signal; frequency signal; IO-Link; (configurable) | ||||||
| Electrical design | PNP/NPN | ||||||
| Number of digital outputs | 2 | ||||||
| Output function | normally open / normally closed; (parameterisable) | ||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||
| Permanent current rating of switching output DC [mA] | 250 | ||||||
| Number of analogue outputs | 1 | ||||||
| Analogue current output [mA] | 4...20; (scalable) | ||||||
| Max. load [Ω] | 350 | ||||||
| Short-circuit protection | yes | ||||||
| Type of short-circuit protection | pulsed | ||||||
| Overload protection | yes | ||||||
| Frequency of the output [Hz] | 0...1000 | ||||||
| Measuring/setting range | |||||||
| Probe length L [mm] | 100 | ||||||
| Operating mode | relative; absolutely liquid; absolutely gaseous | ||||||
| Note on setting range |
| ||||||
| Liquids | |||||||
| Measuring range [m/s] | 0.04...3 | ||||||
| Setting range [m/s] | 0...6 | ||||||
| Gases | |||||||
| Measuring range [m/s] | 2...100 | ||||||
| Setting range [m/s] | 0...200 | ||||||
| Temperature monitoring | |||||||
| Measuring range [°C] | -20...100 | ||||||
| Resolution [°C] | 0.2 | ||||||
| Software / programming | |||||||
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour | ||||||
| Operating conditions | |||||||
| Ambient temperature [°C] | -40...80 | ||||||
| Storage temperature [°C] | -40...100 | ||||||
| Protection | IP 65; IP 67 | ||||||
| Mechanical data | |||||||
| Weight [g] | 299.5 | ||||||
| Materials | stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30 | ||||||
| Materials (wetted parts) | stainless steel (1.4404 / 316L) | ||||||
| Process connection | diameter Ø 8 mm | ||||||
| Displays / operating elements | |||||||
| Display |
| ||||||
| Electrical connection | |||||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||||||
Measurement of flow and temperature at the same time
Optimised for water, oils and air
Red/green display for clear identification of the acceptable range
With switching output, analogue signal and IO-Link
The process connection can be rotated for optimum alignment

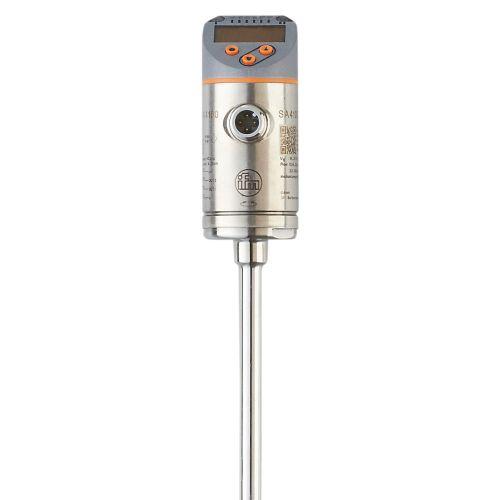

Model : SA4100
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
