| Application | |||
|---|---|---|---|
| Media | Liquids; Gases | ||
| Medium temperature [°C] | -25...80 | ||
| Pressure rating [bar] | 30 | ||
| Liquids | |||
| Medium temperature [°C] | -25...80 | ||
| Gases | |||
| Medium temperature [°C] | -25...80 | ||
| Electrical data | |||
| Operating voltage [V] | 19...36 DC | ||
| Current consumption [mA] | < 60 | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Power-on delay time [s] | 10 | ||
| Inputs / outputs | |||
| Number of inputs and outputs | Number of digital outputs: 1 | ||
| Outputs | |||
| Total number of outputs | 1 | ||
| Output signal | switching signal | ||
| Electrical design | NPN | ||
| Number of digital outputs | 1 | ||
| Output function | normally open / normally closed; (parameterisable) | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 250 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Measuring/setting range | |||
| Probe length L [mm] | 45 | ||
| Liquids | |||
| Setting range [cm/s] | 3...300 | ||
| Greatest sensitivity [cm/s] | 3...100 | ||
| Gases | |||
| Setting range [cm/s] | 200...3000 | ||
| Greatest sensitivity [cm/s] | 200...800 | ||
| Software / programming | |||
| Adjustment of the switch point | pushbutton | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25...80 | ||
| Storage temperature [°C] | -25...100 | ||
| Protection | IP 67 | ||
| Mechanical data | |||
| Weight [g] | 263 | ||
| Dimensions [mm] | M18 x 1.5 | ||
| Materials | stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X | ||
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A | ||
| Process connection | M18 x 1,5 internal thread | ||
| Displays / operating elements | |||
| Display |
| ||
| Electrical connection | |||
| Connection | Connector: 1 x M12 | ||
Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Easy setting of the switch points for quick set-up
Robust stainless steel housing for use in harsh industrial environments
LED bar graph for indication of switch point and flow

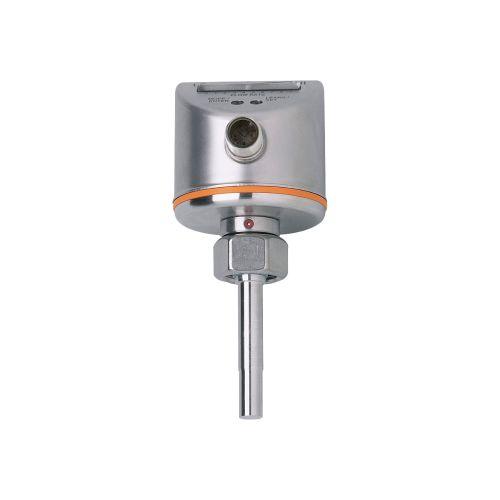

Model : SI5001
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
