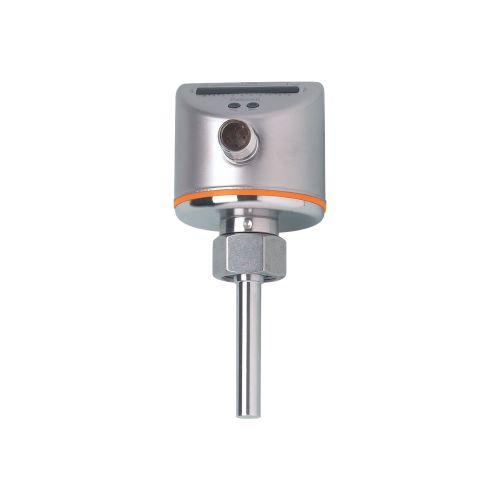

SI5006

  • SI5006
  • IFM
9,461,843
Application
MediaLiquids; Gases
Medium temperature [°C]-25...80
Pressure rating [bar]300
MAWP (for applications according to CRN) [bar]208
Liquids
Medium temperature [°C]-25...80
Gases
Medium temperature [°C]-25...80
Electrical data
Operating voltage tolerance [%]-5...10
Operating voltage [V]85...265 AC
Nominal voltage AC [V]90...240
Nominal frequency AC [Hz]50...60
Max. power consumption [VA]3.5
Protection classII
Reverse polarity protectionno
Power-on delay time [s]10
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 1
Outputs
Total number of outputs1
Output signalswitching signal
Electrical designrelay
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Contact rating3 A (250 V AC / 30 V DC); (number of switching cycles: 20 million mechanically; switching cycles at 3 A load: 100,000 electrical; type of switch-off: normally open)
Short-circuit proofno
Overload protectionno
Measuring/setting range
Liquids
Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100
Gases
Setting range [cm/s]200...3000
Greatest sensitivity [cm/s]200...800
Software / programming
Adjustment of the switch pointpushbutton
Operating conditions
Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67
Mechanical data
Weight [g]262.5
Dimensions [mm]M18 x 1.5
Materialsstainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread
Displays / operating elements
Display
function10 x LED, three-colour
Electrical connection
ConnectionConnector: 1 x 1/2"



Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Easy setting of the switch points for quick set-up
Robust stainless steel housing for use in harsh industrial environments
LED bar graph for indication of switch point and flow

Model : SI5006
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
