| Application | |||
|---|---|---|---|
| Application | hygienic systems | ||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||
| Pressure rating [bar] | 30 | ||
| Liquids | |||
| Application | hygienic systems | ||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||
| Gases | |||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||
| Electrical data | |||
| Operating voltage [V] | 19...36 DC | ||
| Current consumption [mA] | < 60 | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Power-on delay time [s] | 10 | ||
| Inputs / outputs | |||
| Number of inputs and outputs | Number of digital outputs: 1 | ||
| Outputs | |||
| Total number of outputs | 1 | ||
| Output signal | switching signal | ||
| Electrical design | PNP | ||
| Number of digital outputs | 1 | ||
| Output function | normally open / normally closed; (parameterisable) | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 250 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Software / programming | |||
| Adjustment of the switch point | pushbutton | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25...60 | ||
| Protection | IP 67; IP 69K | ||
| Mechanical data | |||
| Weight [g] | 433.5 | ||
| Materials | stainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM | ||
| Materials (wetted parts) | stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 | ||
| Process connection | G 1 Aseptoflex Vario | ||
| Installation length EL [mm] | 54.8 | ||
| Displays / operating elements | |||
| Display |
| ||
| Electrical connection | |||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||
Hygienic design for the requirements of the food and beverage industry
Suitable for SIP processes up to 140 °C
LED bar graph for indication of switch point and flow
Extensive range of process adapters in the accessories
Wetted parts made of stainless steel

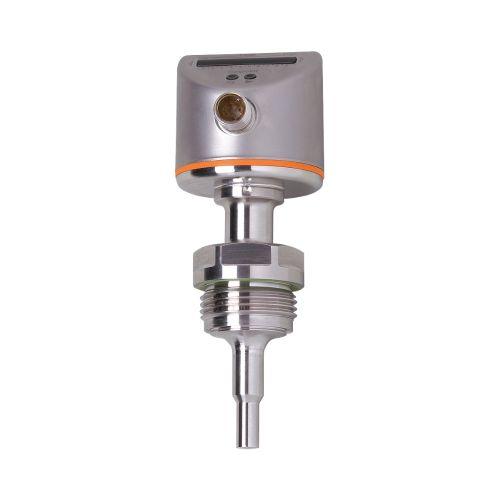

Model : SI6700
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
