| Application | |||
|---|---|---|---|
| Application | for industrial applications | ||
| Media | water | ||
| Medium temperature [°C] | -10...90 | ||
| Pressure rating [bar] | 12 | ||
| Note on pressure rating |
| ||
| MAWP (for applications according to CRN) [bar] | 3.9 | ||
| Electrical data | |||
| Operating voltage [V] | 18...30 DC | ||
| Current consumption [mA] | < 30 | ||
| Min. insulation resistance [MΩ] | 100; (500 V DC) | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Power-on delay time [s] | < 3 | ||
| Inputs / outputs | |||
| Number of inputs and outputs | Number of digital outputs: 2 | ||
| Outputs | |||
| Total number of outputs | 2 | ||
| Output signal | switching signal; frequency signal; IO-Link; (configurable) | ||
| Electrical design | PNP/NPN | ||
| Number of digital outputs | 2 | ||
| Output function | normally open / normally closed; (parameterisable) | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 100 | ||
| Short-circuit protection | yes | ||
| Overload protection | yes | ||
| Measuring/setting range | |||
| Measuring range |
| ||
| Display range |
| ||
| Resolution |
| ||
| Set point SP |
| ||
| Reset point rP |
| ||
| Frequency end point, FEP |
| ||
| In steps of |
| ||
| Frequency at the end point FRP [Hz] | 100...1000 | ||
| Measuring dynamics | 1:20 | ||
| Software / programming | |||
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit | ||
| Operating conditions | |||
| Ambient temperature [°C] | 0...60 | ||
| Note on ambient temperature |
| ||
| Storage temperature [°C] | -20...80 | ||
| Protection | IP 65; IP 67 | ||
| Mechanical data | |||
| Weight [g] | 441.5 | ||
| Materials | stainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U | ||
| Materials (wetted parts) | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | ||
| Tightening torque [Nm] | 30 | ||
| Process connection | threaded connection G 1/2 DN8 | ||
| Electrical connection | |||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||
Reliable detection of flow and medium temperature
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red/green colour change
Suitable for water, deionised water and cooling water

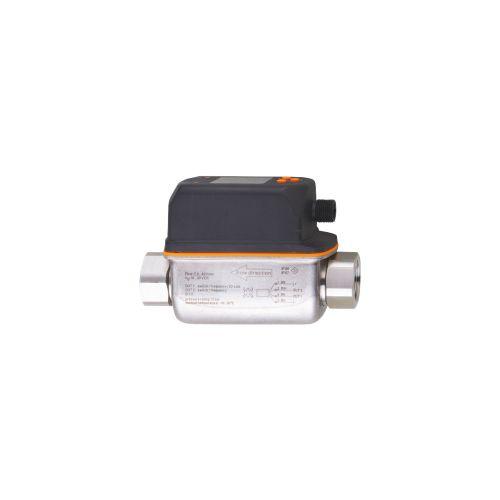

Model : SV4200
Hãng sản xuất: IFM
Chất lượng : Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
