SV7200

  • SV7200
  • IFM
9,701,946
Application
Applicationfor industrial applications
Mediawater
Medium temperature [°C]-10...90
Pressure rating [bar]12
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]4.3
Electrical data
Operating voltage [V]18...30 DC
Current consumption [mA]< 30
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]< 3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]100
Short-circuit protectionyes
Overload protectionyes
Measuring/setting range
Measuring range
5...100 l/min0.3...6 m³/h
Display range
0...120 l/min0...7.2 m³/h
Resolution
0.5 l/min0.02 m³/h
Set point SP
6...100 l/min0.36...6 m³/h
Reset point rP
5...99 l/min0.3...5.94 m³/h
Frequency end point, FEP
20...100 l/min1.2...6 m³/h
In steps of
0.5 l/min0.02 m³/h
Frequency at the end point FRP [Hz]100...1000
Measuring dynamics1:20
Temperature monitoring
Measuring range [°C]-10...90
Display range [°C]-30...110
Resolution [°C]0.5
Set point SP [°C]-9...90
Reset point rP [°C]-10...89
In steps of [°C]0.5
Frequency start point, FSP [°C]-10...70
Frequency end point, FEP [°C]10...90
Frequency at the end point FRP [Hz]100...1000
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]0...60
Note on ambient temperature
medium temperature < 80 °C
medium temperature < 90 °C: 0...50 °C
Storage temperature [°C]-20...80
ProtectionIP 65; IP 67
Mechanical data
Weight [g]483.5
Materialsstainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U
Materials (wetted parts)stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]30
Process connectionthreaded connection G 3/4 DN20
Electrical connection
ConnectionConnector: 1 x M12; Contacts: gold-plated



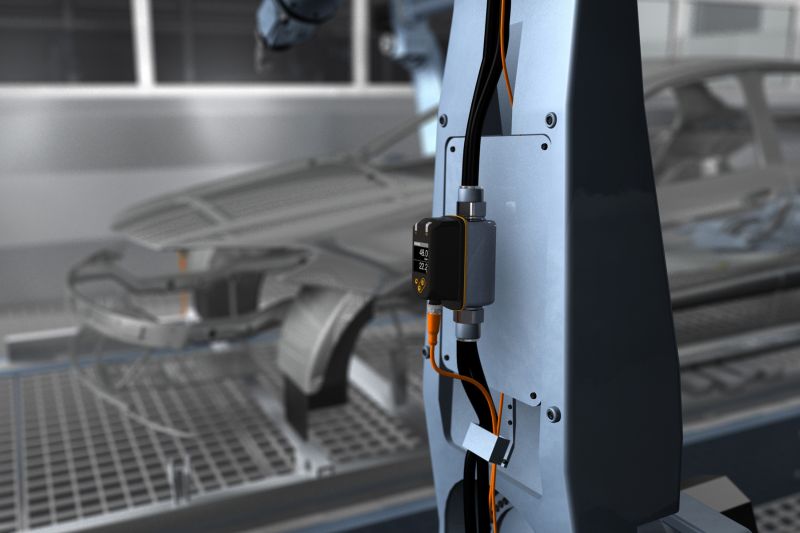

Reliable detection of flow and medium temperature
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red/green colour change

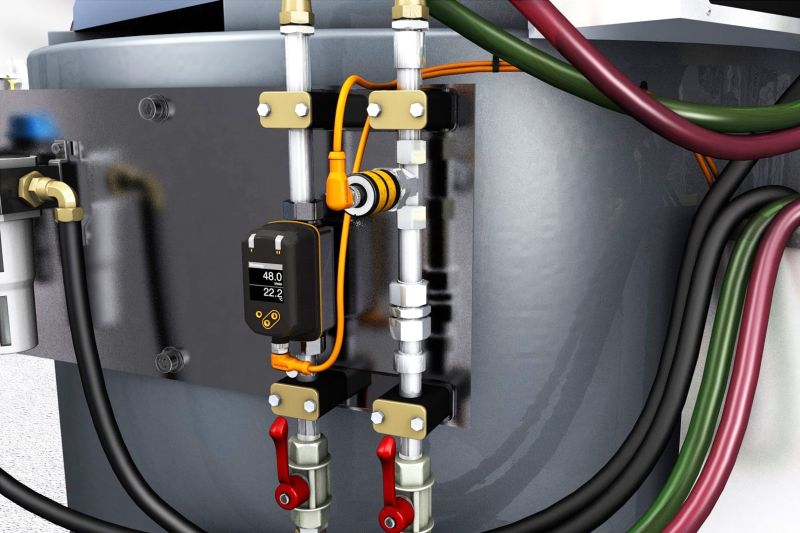

Suitable for water, deionised water and cooling water

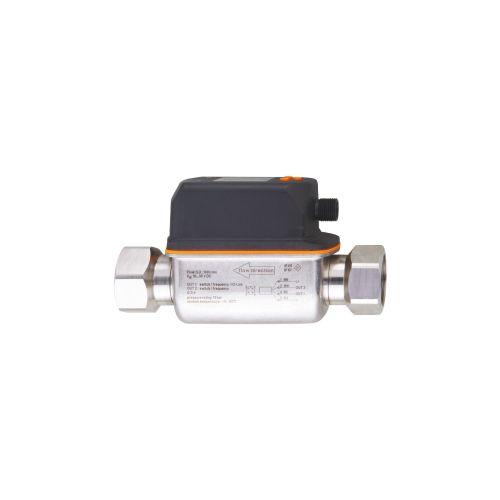

Model : SV7200
