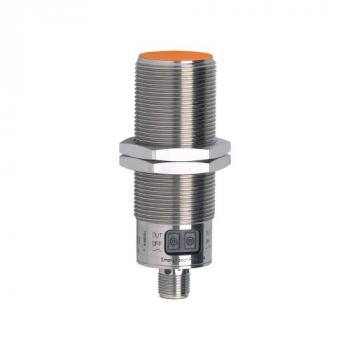

Cảm biến tín hiệu van

Electrical design

PNP

Output function

Normally open / normally closed; (selectable)

Sensing range [mm]

8

Communication interface

IO-Link

Dimensions [mm]

M30 x 1.5 / L = 90

Operating voltage [V]

10...30 DC; (10...36 DC (60 °C))

Current consumption [mA]

< 18

Protection class

III

Reverse polarity protection

Yes

Output function

Normally open / normally closed; (selectable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

10

Short-circuit proof

Yes

Overload protection

Yes

Detection

Zone

Sensing range [mm]

8

Ambient temperature [°C]

-25...80

Protection

IP 65; IP 67

Weight [g]

128.8

Mounting

Flush mountable

Dimensions [mm]

M30 x 1.5 / L = 90

Thread designation

M30 x 1.5

Materials

Housing: stainless steel (1.4404 / 316L); pushbuttons: TPE-U; cover: PBT; plug: PEI

Display

Switching status                                   1 x LED, yellow

Electronic lock

Yes

Accessories (supplied)

Lock nuts: 2

Connection

Connector: 1 x M12
