| Processors | Intel Core i7-4500U, 4M Cache, 2 cores, 4 threads, 1.80GHz, max turbo 3.00GHz |
| Memory Types | 1 x 204Pins SODIMM 2GB/4GB/8GBDDR3L 1333/1600MHz1.35V (Max: 8GB) |

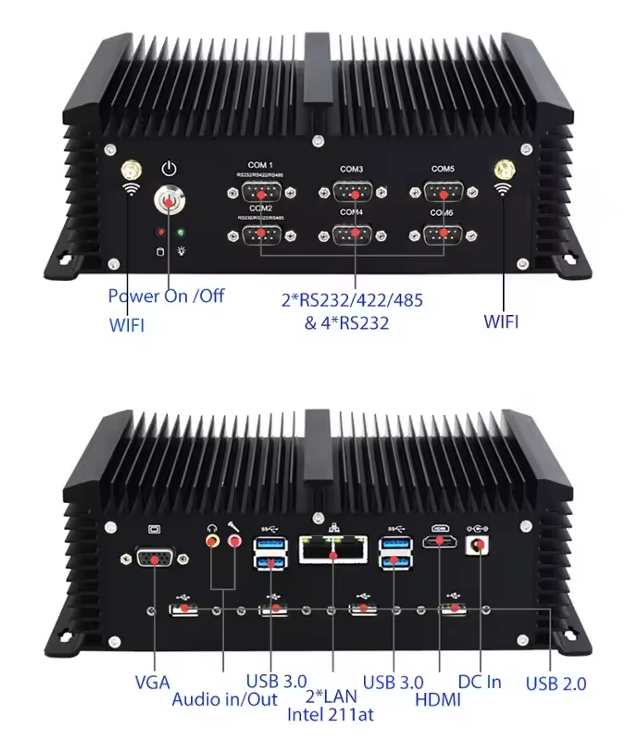

| Ethernet | 2 x GbE RJ45 Intel i211/i210AT |
| USB Ports | 4xUSB 3.0, 4xUSB 2.0 |

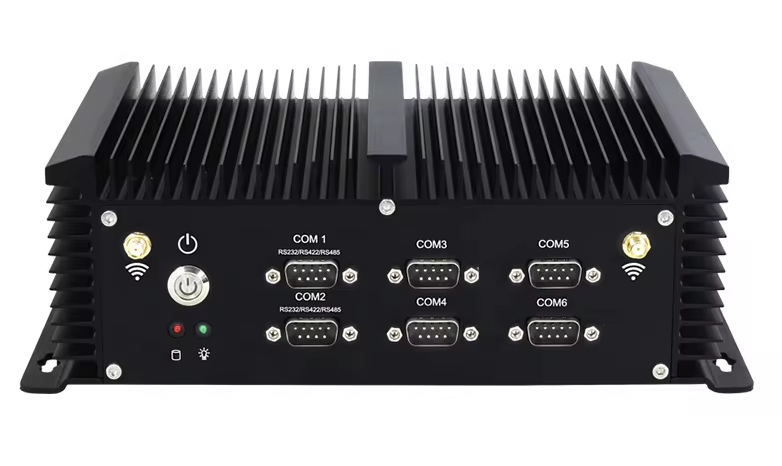

| COM Ports | 6x DB9 Serial ports |
| COM1,COM2: RS232/422/485 adjustable in BIOS |
| COM3 -> COM 6: RS232 |
| Display | 1 x VGA: Maximum resolution 1920×1080 @ 60Hz |
| 1 x HDMI: Maximum resolution 3280*2000 @ 60Hz |
| Graphic Cards | Intel HD Graphics 4400 |
| Power Input | Support voltage DC 9V to 36V input |
| Audio | 1 x SPK 3.5mm,1 x MIC 3.5mm |
| Hard Drive Support | 1x mSATA SSD ( default install this type hard drive if you buy with SSD ) |
| 1x 2.5 inch HDD/SSD |
| Expansibility | 1x Mini-PCIe half height size, support WiFi/ bluetooth module |
| 1x Mini-PCIe full height size, support 3G/4G module, WiFi/bluetooth module |
| OS Support | Windows 7 |
| Windows 8 |
| Windows 10 |
| LINUX |
| Operating Temp | -20 ℃ ~ 65 ℃ |
| RH | 5%~90% @40℃ |
| Construction | Fanless passive cooling |
| Material | Aluminum alloy |
