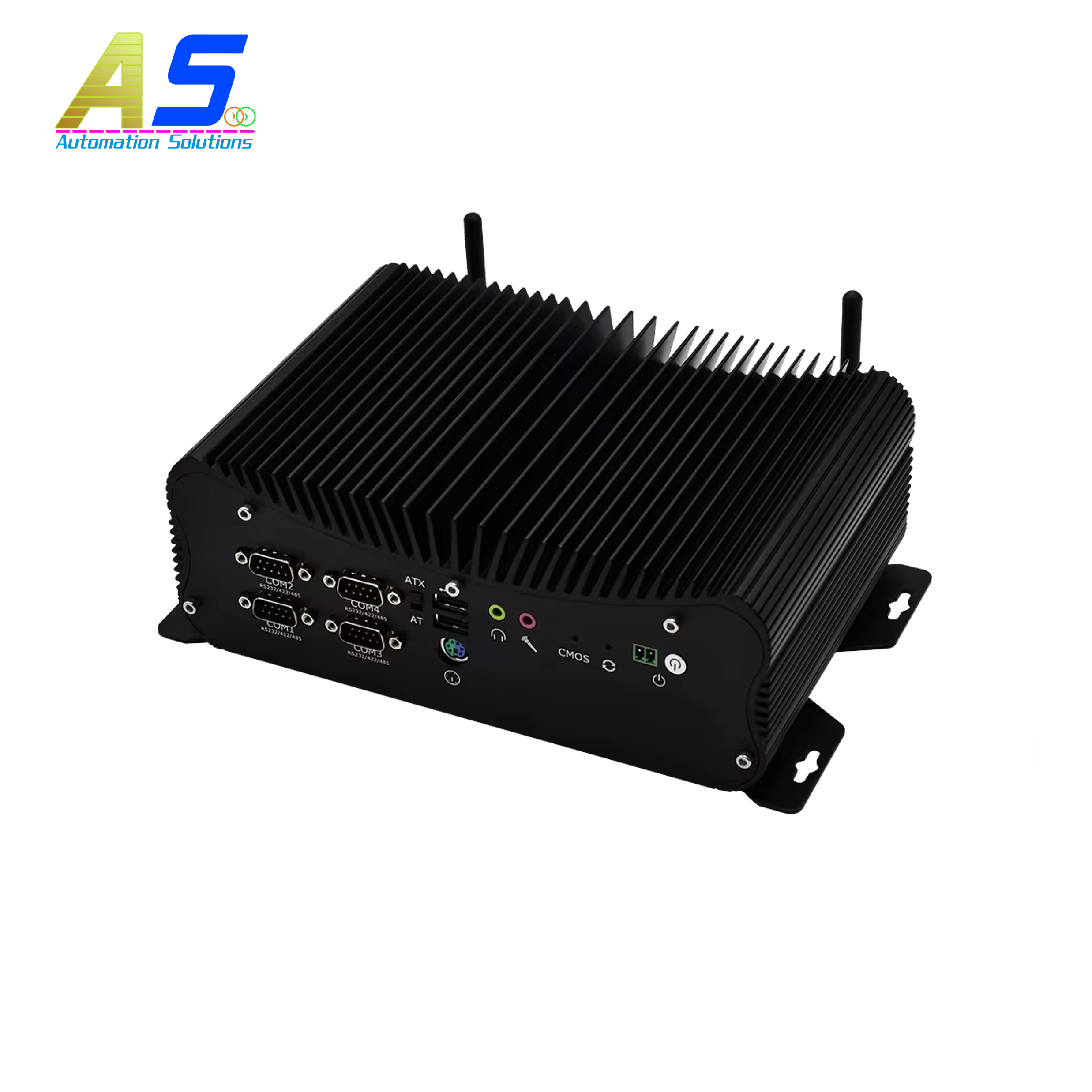

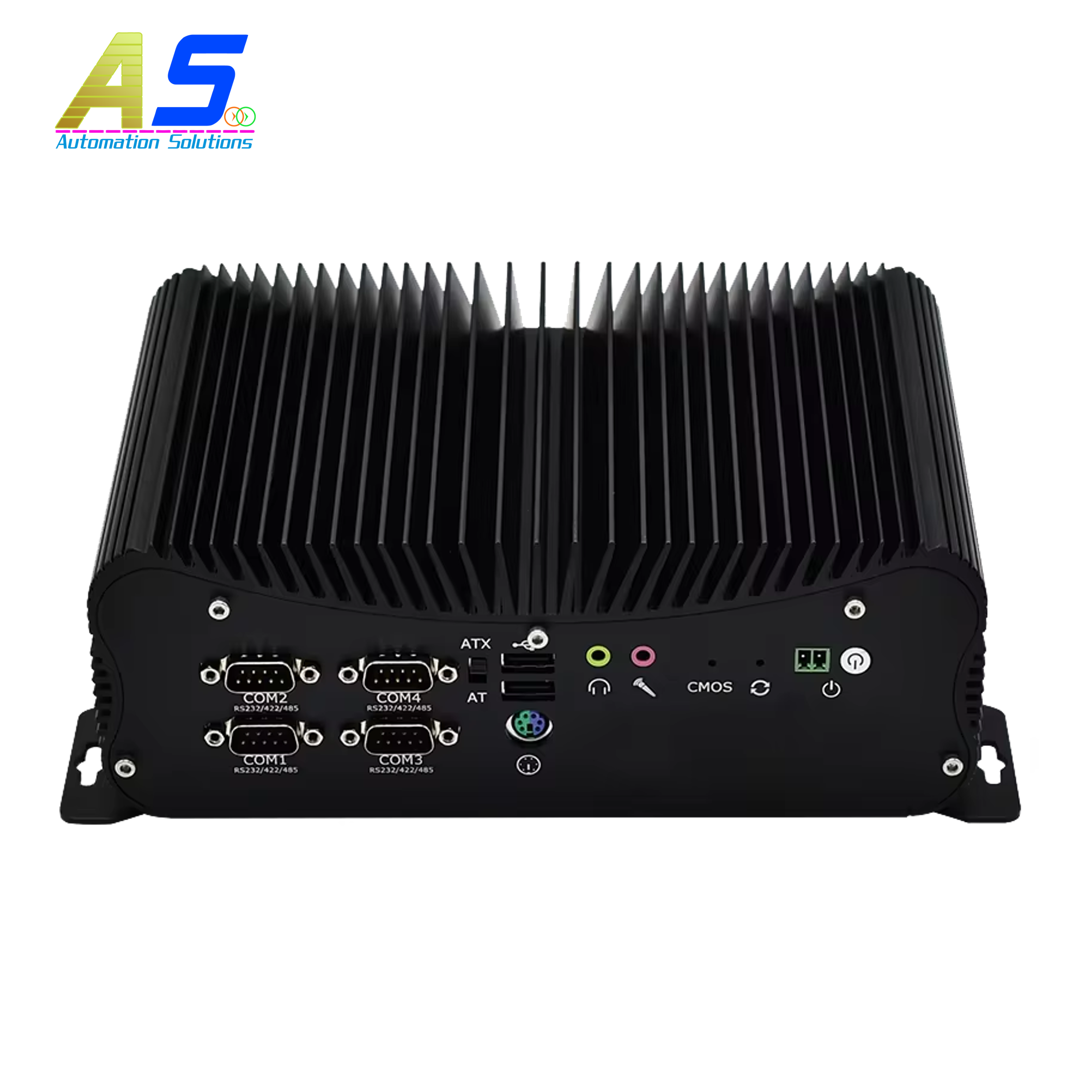

AS45G1 - I5 8365U

Processors	Intel Core i5-8365U, 6M Cache, 4 cores, 8 threads, 1.60GHz, max turbo 4.10GHz
Memory Types	2x SODIMM DDR4 slots Upto 64GB RAM
Ethernet	2 x GbE RJ45 Intel i211/i210AT, support PXE/WOL
USB Ports	4xUSB 3.0, 2xUSB 2.0

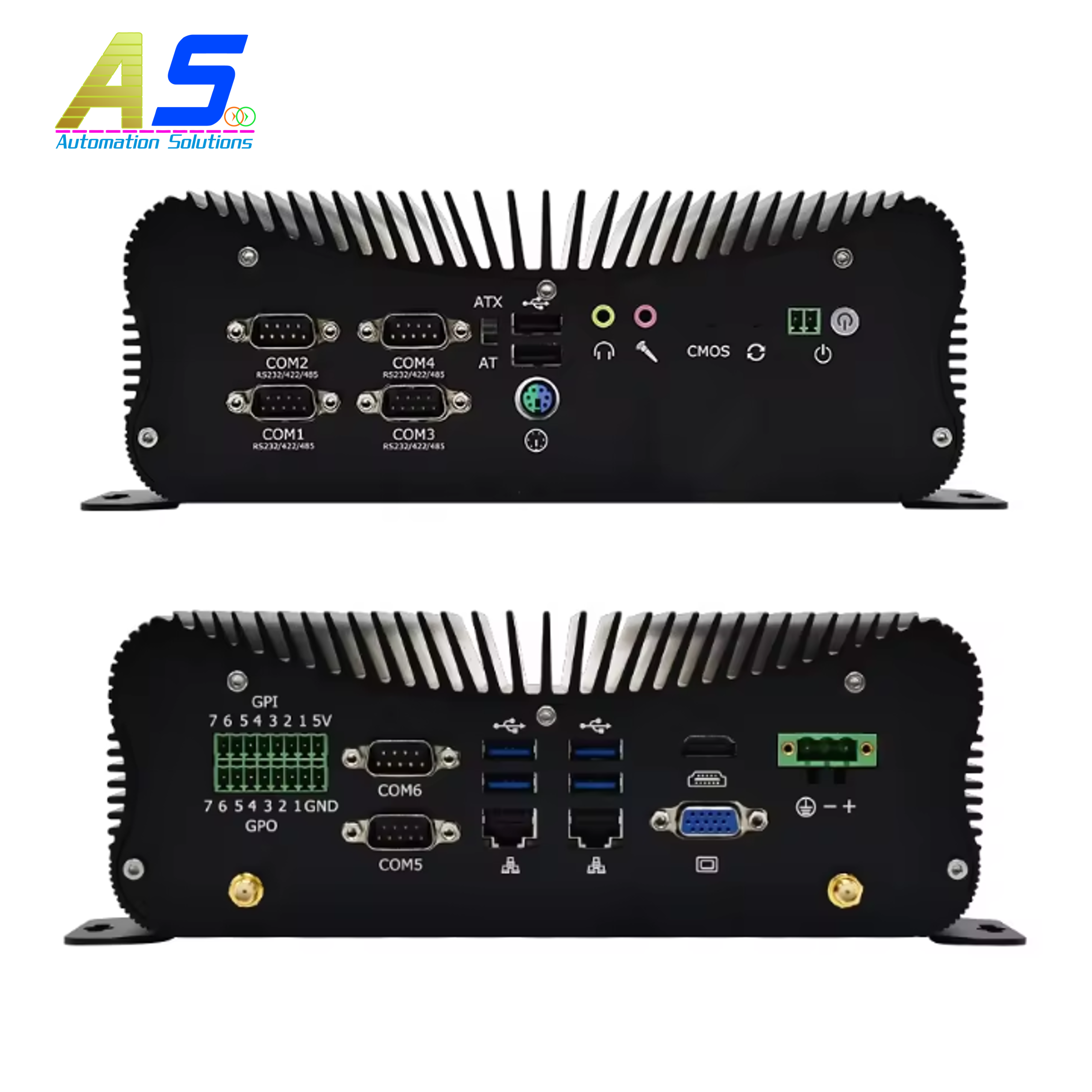

COM Ports	6x DB9 Serial ports
	COM1 to COM4: RS232/422/485 adjustable in BIOS
	COM5/COM6: RS232

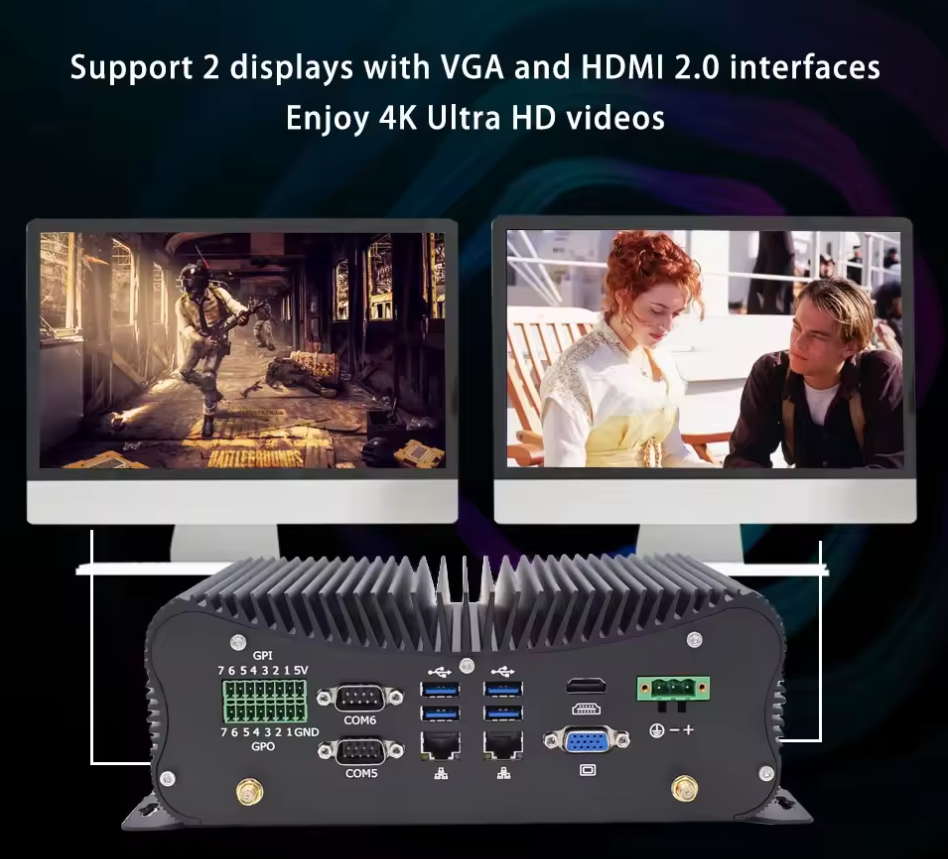

Display	1 x VGA, 1x HDMI 2.0 (4k Ultra HD Videos)
Video Card	Intel UHD Graphics 620
GPIO	14 x GPIO（7x input, 7x output, 5V）
Power Switch	1 x Power Button, 1x 2-pin power switch connector
Power Input	Support voltage DC 9V to 36V input
Audio	1 x SPK 3.5mm,1 x MIC 3.5mm
Hard Drive Support	1x mSATA SSD ( default install this type hard drive if you buy with SSD )
	1x M.2 NVME SSD 2280 slot (Max 1TB)
	1x 2.5 inch HDD/SSD (Max 1TB)
Expansibility	1x Mini-PCIe half height size, support WiFi/ bluetooth module
	1x Mini-PCIe full height size, support 3G/4G module, WiFi/bluetooth module
	Support LPT (optional)
OS Support	Windows 7
	Windows 8
	Windows 10
	LINUX
	WES7/10
Operating Temp	-20℃ to +60℃
RH	10%~90% @30℃
Construction	Fanless passive cooling
ATX/AT Switch	1 x ATX/ATswitch ( Switch to AT to open automatically power on after power loss )
Material	Aluminum alloy

GPIO Instructions

7 Inputs GPI1~GPI7
GPI1	GPI2	GPI3	GPI4	GPI5	GPI6	GPI7
0xA00.bit0	0xA00.bit2	0xA00.bit7	0xA02.bit0	0xA00.bit4	0xA03.bit4	0xA04.bit3

7 Outputs GPO1~GPO7
GPO1	GPO2	GPO3	GPO4	GPO5	GPO6	GPO7
0xA03.bit1	0xA05.bit5	0xA00.bit1	0xA03.bit6	0xA04.bit5	0xA04.bit4	0xA03.bit0

Model : AS45G1 - I5 8365U
Hãng nhập khẩu và phân phối: An Sinh
Chất lượng : Mới 100%
Bảo hành : Chính hãng
