Thiết bị đo

Thiết bị đo (142 Sản phẩm)

SM6001

15,375,494 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

17.7

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

95; (24 V)

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range

1.5...396 gph

0.03...6.6 gpm

Display range

-475.5...475.5 gph

-7.925...7.925 gpm

Resolution

0.5 gph

0.01 gpm

Set point SP

3.5...396.5 gph

0.06...6.6 gpm

Reset point rP

1.5...394 gph

0.03...6.57 gpm

Analogue start point ASP

0...318 gph

0...5.3 gpm

Analogue end point AEP

78...396 gph

1.3...6.6 gpm

In steps of

0.5 gph

0.01 gpm

Volumetric flow quantity monitoring

Pulse value

0.01...30 000 000 gal

Pulse length [s]

0,01...2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 67

Mechanical data

Weight [g]

546

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1/2 DN15 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SM8001

20,441,375 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

11.2

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

95; (24 V)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range

6...1584 gph

0.1...26.4 gpm

Display range

-1902...1902 gph

-31.7...31.7 gpm

Resolution

2 gph

0.05 gpm

Set point SP

14...1586 gph

0.25...26.4 gpm

Reset point rP

6...1578 gph

0.1...26.25 gpm

Analogue start point ASP

0...1272 gph

0...21.2 gpm

Analogue end point AEP

312...1586 gph

5.2...26.4 gpm

In steps of

2 gph

0.05 gpm

Volumetric flow quantity monitoring

Pulse value

0.01...100 000 000 gal

Pulse length [s]

0,0025...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 67

Mechanical data

Weight [g]

645

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1 DN25 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SM9100

24,932,193 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

5...300 l/min

0.3...18 m³/h

Display range

-360...360 l/min

-21.6...21.6 m³/h

Resolution

0.5 l/min

0.02 m³/h

Set point SP

6.5...300 l/min

0.4...18 m³/h

Reset point rP

5...298.5 l/min

0.3...17.9 m³/h

Analogue start point ASP

0...240 l/min

0...14.4 m³/h

Analogue end point AEP

60...300 l/min

3.6...18 m³/h

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

In steps of

0.5 l/min

0.02 m³/h

Measuring dynamics

1:60

Volumetric flow quantity monitoring

Pulse value

0.0001...300x10³ m³

In steps of

0.0001 m³

Pulse length [s]

0,016...2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/frequency/pulse output; start-up delay; display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3214

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; EPDM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM2004

28,936,876 ₫

Application

empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature

-10...70 °C

14...158 °F

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 2

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (≤ 22 mA; scalable)

Max. load [Ω]

500

Measuring/setting range

Measuring range

5...600 l/min

0.3...36 m³/h

80...9510 gph

1.3...158.5 gpm

Display range

-720...720 l/min

-43.2...43.2 m³/h

-11410...11410 gph

-190.2...190.2 gpm

Resolution

0.5 l/min

0.02 m³/h

5 gph

0.1 gpm

Analogue start point ASP

0...480 l/min

0...28.8 m³/h

0...7610 gph

0...126.8 gpm

Analogue end point AEP

120...600 l/min

7.2...36 m³/h

1900...9510 gph

31.7...158.5 gpm

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

< 240 gph

< 4 gpm

In steps of

0.5 l/min

0.02 m³/h

5 gph

0.1 gpm

Measuring dynamics

1:120

Software / programming

Parameter setting options

display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature

-10...60 °C

14...140 °F

Storage temperature

-25...80 °C

-13...176 °F

Protection

IP 65; IP 67

Tests / approvals

EMC

DIN EN 60947-5-9

Shock resistance

DIN EN 60068-2-27

20 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

5 g (10...2000 Hz)

MTTF [years]

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]

3147

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
function display	1 x LED, yellow (10³)
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM7004

18,117,413 ₫

Application

for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

11.2

Electrical data

Operating voltage [V]

20...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

120; (24 V)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 2

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Overload protection

yes

Measuring/setting range

Measuring range

0.2...50 l/min

0.02...13.22 gpm

Display range

-60...60 l/min

-15.86...15.86 gpm

Resolution

0.1 l/min

0.02 gpm

Analogue start point ASP

0...40 l/min

0...10.58 gpm

Analogue end point AEP

10...50 l/min

2.64...13.22 gpm

In steps of

0.1 l/min

0.02 gpm

Temperature monitoring

Measuring range [°C]

-20...80

Resolution [°C]

0.2

Analogue start point [°C]

-20...60

Analogue end point [°C]

0...80

In steps of [°C]

0.2

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 67

Mechanical data

Weight [g]

559.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 3/4 DN20 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

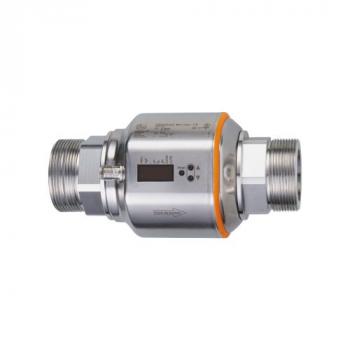

SM9001

24,932,193 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

80...4800 gph

1.3...80 gpm

Display range

-5760...5760 gph

-96...96 gpm

Resolution

5 gph

0.1 gpm

Set point SP

105...4800 gph

1.7...80 gpm

Reset point rP

80...4775 gph

1.3...79.6 gpm

Analogue start point ASP

0...3840 gph

0...64 gpm

Analogue end point AEP

960...4800 gph

16...80 gpm

Low flow cut-off LFC

< 240 gph

< 4 gpm

In steps of

5 gph

0.1 gpm

Measuring dynamics

1:60

Volumetric flow quantity monitoring

Pulse value

0.02...80 E06 gal

In steps of

0.02 gal

Pulse length [s]

0,016...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3163

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM2001

28,545,597 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°F]

14...158

Pressure rating [bar]

Pressure rating [psi]

232

MAWP (for applications according to CRN) [bar]

16.5

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

80...9600 gph

1.3...160 gpm

Display range

-11520...11520 gph

-190...190 gpm

Resolution

5 gph

0.1 gpm

Set point SP

130...9600 gph

2.1...160 gpm

Reset point rP

80...9550 gph

1.3...159.2 gpm

Analogue start point ASP

0...7680 gph

0...128 gpm

Analogue end point AEP

1920...9600 gph

32...160 gpm

Low flow cut-off LFC

< 240 gph

< 4 gpm

In steps of

5 gph

0.1 gpm

Measuring dynamics

1:120

Volumetric flow quantity monitoring

Pulse value

0.02...160 E06 gal

In steps of

0.02 gal

Pulse length [s]

0,008...2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°F]

14...140

Storage temperature [°F]

-13...176

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3175.15

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT292

5,815,832 ₫

Application

Installation

suited for installation in existing tuning fork adapters

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Probe length [mm]

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-25...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-25...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

295.5

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 3/4 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT392

5,931,437 ₫

Application

Installation

suited for installation in existing tuning fork adapters

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Probe length [mm]

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-25...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-25...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

398.5

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

LMT202

5,815,832 ₫

Application

Installation

suited for installation in existing tuning fork adapters

Media

Liquids; viscous media; powder

Recommended media

water; hydrous media; oils; oil-based media; powder

Probe length [mm]

Tank pressure [bar]

-1...40

Oil

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Water

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature: < 100 °C

-20...60 °C

Medium temperature: < 150 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

287.5

Dimensions [mm]

Ø 30 / L = 112

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 3/4 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

LMT302

5,931,437 ₫

Application

Installation

suited for installation in existing tuning fork adapters

Media

Liquids; viscous media; powder

Recommended media

water; hydrous media; oils; oil-based media; powder

Probe length [mm]

Tank pressure [bar]

-1...40

Oil

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Water

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature: < 100 °C

-20...60 °C

Medium temperature: < 150 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

391

Dimensions [mm]

Ø 30 / L = 125.5

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT195

6,693,246 ₫

Application

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Probe length [mm]

253

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-25...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-25...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

401

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM

Materials (wetted parts)

PEEK; stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); FKM

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng
