Thiết bị đo

Thiết bị đo (142 Sản phẩm)

LMT194

6,571,712 ₫

Application

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Probe length [mm]

153

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-25...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-25...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

329

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM

Materials (wetted parts)

PEEK; stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); FKM

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT192

5,652,799 ₫

Application

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Cannot be used for

See the operating instructions, chapter "Function and features".

Probe length [mm]

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-25...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-25...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-25...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

249.5

Dimensions [mm]

Ø 30 / L = 125

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT191

5,386,017 ₫

Application

Media

Liquids

Recommended media

water; hydrous media; oils; oil-based media

Cannot be used for

See the operating instructions, chapter "Function and features".

Probe length [mm]

Tank pressure [bar]

-1...40; (applications subject to the German Federal Water Act : -0,5...10 bar)

Oil

Medium temperature [°C]

-40...100; (applications subject to the German Federal Water Act 0...100 °C)

Medium temperature short time [°C]

-40...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Water

Medium temperature [°C]

-40...85; (applications subject to the German Federal Water Act : 0...85 °C)

Medium temperature short time [°C]

-40...150; (1 h; applications subject to the German Federal Water Act : 0...100 °C)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP

Number of digital outputs

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-40...85

Note on ambient temperature

Medium temperature 100...150 °C

-40...60 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

217

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT04A

9,189,133 ₫

Application

Media

Liquids; viscous media; powder

Medium temperature [°C]

-20...85

Probe length [mm]

253

Tank pressure [bar]

-1...40

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...60

Storage temperature [°C]

-40...85

Protection

IP 67; (use outside the hazardous area: IP 68 / IP 69)

Mechanical data

Weight [g]

362

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; FKM

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT03A

8,857,139 ₫

Application

Media

Liquids; viscous media; powder

Medium temperature [°C]

-20...85

Probe length [mm]

153

Tank pressure [bar]

-1...40

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Factory setting

oils; oil-based media; powder

Operating conditions

Ambient temperature [°C]

-20...60

Storage temperature [°C]

-40...85

Protection

IP 67; (use outside the hazardous area: IP 68 / IP 69)

Mechanical data

Weight [g]

329

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; FKM

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT01A

6,550,963 ₫

Application

Media

Liquids; viscous media; powder

Medium temperature [°C]

-20...85

Probe length [mm]

Tank pressure [bar]

-1...40

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Factory setting

oils; oil-based media; powder

Operating conditions

Ambient temperature [°C]

-20...60

Storage temperature [°C]

-40...85

Protection

IP 67; (use outside the hazardous area: IP 68 / IP 69)

Mechanical data

Weight [g]

218

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1/2 external thread

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMC510

3,912,792 ₫

Application

Media

water; hydrous media; oils; oil-based media; coolants; powder

Medium temperature [°C]

-25...100

Probe length [mm]

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

Oil

Medium temperature [°C]

-25...100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

yes

Type of short-circuit protection

thermal, pulsed

Overload protection

yes

Measuring/setting range

Factory setting

oils; oil-based media

Response times

Response time [s]

< 0.5

Operating conditions

Ambient temperature [°C]

-25...85

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Mechanical data

Weight [g]

115

Dimensions [mm]

Ø 18.11 / L = 76.2

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

1/2" NPT

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

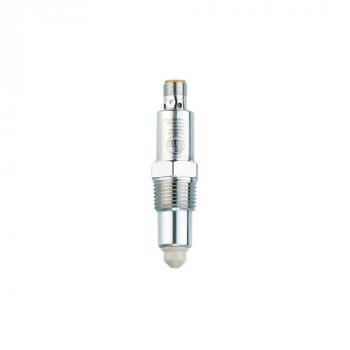

LMC500

3,912,792 ₫

Application

Media

water; hydrous media; oils; oil-based media; coolants; powder

Medium temperature [°C]

-25...100

Probe length [mm]

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

Oil

Medium temperature [°C]

-25...100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

yes

Type of short-circuit protection

thermal, pulsed

Overload protection

yes

Measuring/setting range

Factory setting

water; hydrous media

Response times

Response time [s]

< 0.5

Operating conditions

Ambient temperature [°C]

-25...85

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Mechanical data

Weight [g]

116

Dimensions [mm]

Ø 18.11 / L = 76.2

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

1/2" NPT

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

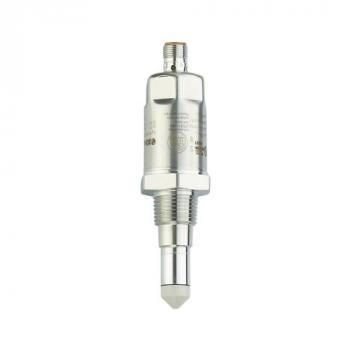

LMC502

6,343,466 ₫

Application

Media

Liquids; viscous media; powder

Recommended media

water; hydrous media; oils; oil-based media; powder

Cannot be used for

See the operating instructions, chapter "Function and features".

Probe length [mm]

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

Oil

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Water

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature: < 100 °C

-20...60 °C

Medium temperature: < 150 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

252

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK; FKM

Process connection

1/2" NPT

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	2 LED, yellow
operating status	2 LED, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

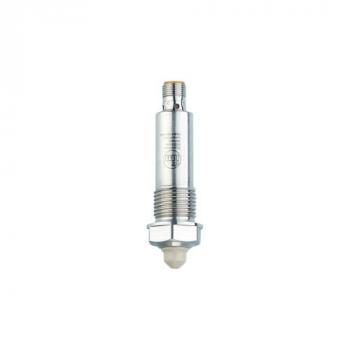

LMC400

3,912,792 ₫

Application

Media

water; hydrous media; oils; oil-based media; coolants; powder

Cannot be used for

See the operating instructions, chapter "Function and features".

Medium temperature [°C]

-25...100

Probe length [mm]

9.6

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

Oil

Medium temperature [°C]

-25...100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

yes

Type of short-circuit protection

thermal, pulsed

Overload protection

yes

Measuring/setting range

Factory setting

water; hydrous media

Response times

Response time [s]

< 0.5

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for installation in probe observe the temperature in the pipe, see installation instructions

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Mechanical data

Weight [g]

127.5

Dimensions [mm]

Ø 18.1 / L = 76.2

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

G 1/2 external thread

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

IG7107

777,317 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

NPN

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

300

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

8 ± 10 %

Operating distance [mm]

0...6.48

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

114.8

Mounting

non-flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng

IG7104

777,317 ₫

Electrical data

Operating voltage [V]

15...30 DC

Current consumption [mA]

< 15

Protection class

III

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

400

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

5 ± 10 %

Operating distance [mm]

0...4.05

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Mechanical data

Weight [g]

117

Mounting

flush mountable

Dimensions [mm]

M18 x 1 / L = 61

Materials

housing: brass nickel-plated; sensing face: PBT; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Connection

Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

Mua hàng
