Thiết bị đo

Thiết bị đo (142 Sản phẩm)

HOT

SA4100

9,224,704 ₫

Application

Media

water; glycol solutions; air; oils

Note on media

low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)

high-viscosity oils with viscosity: > 40 mm²/s (40 °C)

Medium temperature [°C]

-20...100

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 100

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

350

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0...1000

Measuring/setting range

Probe length L [mm]

100

Operating mode

relative; absolutely liquid; absolutely gaseous

Note on setting range

Operating mode: relative

Liquids

Measuring range [m/s]

0.04...3

Setting range [m/s]

0...6

Gases

Measuring range [m/s]

2...100

Setting range [m/s]

0...200

Temperature monitoring

Measuring range [°C]

-20...100

Resolution [°C]

0.2

Software / programming

Parameter setting options

hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour

Operating conditions

Ambient temperature [°C]

-40...80

Storage temperature [°C]

-40...100

Protection

IP 65; IP 67

Mechanical data

Weight [g]

299.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30

Materials (wetted parts)

stainless steel (1.4404 / 316L)

Process connection

diameter Ø 8 mm

Displays / operating elements

Display

Display unit	6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SA5000

8,898,638 ₫

Application

Media

water; glycol solutions; air; oils

Note on media

low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)

high-viscosity oils with viscosity: > 40 mm²/s (40 °C)

Medium temperature [°C]

-20...90

Pressure rating [bar]

100

MAWP (for applications according to CRN) [bar]

100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 100

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

350

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0...1000

Measuring/setting range

Probe length L [mm]

Operating mode

relative; absolutely liquid; absolutely gaseous

Note on setting range

Operating mode: relative

Liquids

Measuring range [m/s]

0.04...3

Setting range [m/s]

0...6

Gases

Measuring range [m/s]

2...100

Setting range [m/s]

0...200

Temperature monitoring

Measuring range [°C]

-20...90

Resolution [°C]

0.2

Software / programming

Parameter setting options

Operating conditions

Ambient temperature [°C]

-40...80

Storage temperature [°C]

-40...100

Protection

IP 65; IP 67

Mechanical data

Weight [g]

311.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30

Materials (wetted parts)

stainless steel (1.4404 / 316L); Gasket: FKM

Process connection

threaded connection M18 x 1,5 internal thread

Displays / operating elements

Display

Display unit	6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

SI5000

8,542,929 ₫

Application

Media

Liquids; Gases

Medium temperature [°C]

-25...80

Pressure rating [bar]

Liquids

Medium temperature [°C]

-25...80

Gases

Medium temperature [°C]

-25...80

Electrical data

Operating voltage [V]

19...36 DC

Current consumption [mA]

< 60

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 1

Outputs

Total number of outputs

Output signal

switching signal

Electrical design

PNP

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Probe length L [mm]

Liquids

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...100

Gases

Setting range [cm/s]

200...3000

Greatest sensitivity [cm/s]

200...800

Software / programming

Adjustment of the switch point

pushbutton

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...100

Protection

IP 67

Mechanical data

Weight [g]

246

Dimensions [mm]

M18 x 1.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X

Materials (wetted parts)

stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A

Process connection

M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

HOT

SI5004

8,498,466 ₫

Application

Media

Liquids

Medium temperature [°C]

-25...80

Pressure rating [bar]

300

MAWP (for applications according to CRN) [bar]

208

Electrical data

Operating voltage [V]

19...36 DC

Current consumption [mA]

< 60

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

500

Overload protection

yes

Measuring/setting range

Liquids

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...100

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...100

Protection

IP 67

Mechanical data

Weight [g]

248

Dimensions [mm]

M18 x 1.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X

Materials (wetted parts)

stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A

Process connection

M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

HOT

SI5006

9,461,843 ₫

Application

Media

Liquids; Gases

Medium temperature [°C]

-25...80

Pressure rating [bar]

300

MAWP (for applications according to CRN) [bar]

208

Liquids

Medium temperature [°C]

-25...80

Gases

Medium temperature [°C]

-25...80

Electrical data

Operating voltage tolerance [%]

-5...10

Operating voltage [V]

85...265 AC

Nominal voltage AC [V]

90...240

Nominal frequency AC [Hz]

50...60

Max. power consumption [VA]

3.5

Protection class

Reverse polarity protection

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 1

Outputs

Total number of outputs

Output signal

switching signal

Electrical design

relay

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Contact rating

3 A (250 V AC / 30 V DC); (number of switching cycles: 20 million mechanically; switching cycles at 3 A load: 100,000 electrical; type of switch-off: normally open)

Short-circuit proof

Overload protection

Measuring/setting range

Liquids

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...100

Gases

Setting range [cm/s]

200...3000

Greatest sensitivity [cm/s]

200...800

Software / programming

Adjustment of the switch point

pushbutton

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...100

Protection

IP 67

Mechanical data

Weight [g]

262.5

Dimensions [mm]

M18 x 1.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X

Materials (wetted parts)

stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A

Process connection

M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Electrical connection

Connection

Connector: 1 x 1/2"

Mua hàng

HOT

SI5010

9,034,993 ₫

Application

Media

Liquids; Gases

Medium temperature [°C]

-25...80

Pressure rating [bar]

300

MAWP (for applications according to CRN) [bar]

208

Liquids

Medium temperature [°C]

-25...80

Gases

Medium temperature [°C]

-25...80

Electrical data

Operating voltage [V]

18...36 DC

Current consumption [mA]

< 60

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 1

Outputs

Total number of outputs

Output signal

switching signal; IO-Link; (configurable)

Electrical design

PNP

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Liquids

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...100

Gases

Setting range [cm/s]

200...3000

Greatest sensitivity [cm/s]

200...800

Software / programming

Adjustment of the switch point

pushbutton

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...100

Protection

IP 65; IP 67

Mechanical data

Weight [g]

248.5

Dimensions [mm]

M18 x 1.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X

Materials (wetted parts)

stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A

Process connection

M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

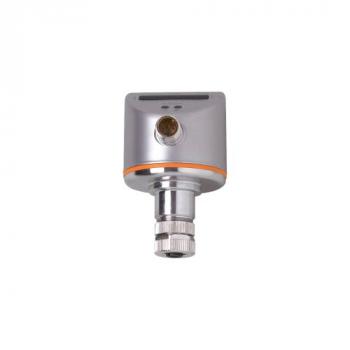

SR5906

7,040,061 ₫

Application

Flow monitoring; Wire monitoring

Electrical data

Operating voltage tolerance [%]

-15...10

Operating voltage [V]

76.5...264 AC

Nominal voltage AC [V]

90...240

Nominal frequency AC [Hz]

50...60

Max. power consumption [VA]

3.5

Protection class

Reverse polarity protection

Power-on delay time [s]

Number of channels

Outputs

Electrical design

relay

Contact rating

3 A (250 V AC / 30 V DC); (switching cycles at 3 A load: 100.000; type of switch-off: normally open)

Switching cycles (mechanical)

20_Millionen

Switching function flow monitoring

output switches when flow is present: ON for output function = normally open / OFF for output function = normally closed

Short-circuit protection

Overload protection

Software / programming

Adjustment of the switch point

pushbutton

Operating conditions

Ambient temperature [°C]

-20...60

Protection

IP 67; (with sensor attached)

Mechanical data

Weight [g]

244.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X; brass

Displays / operating elements

Display

function	LED, bar graph
switching status	LED, orange flash in case of wire break

Electrical connection

Connection

Connector: 1 x 1/2"

Mua hàng

SR5900

6,435,358 ₫

Application

Flow monitoring; Wire monitoring

Electrical data

Operating voltage [V]

19...36 DC

Current consumption [mA]

< 70

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Number of channels

Outputs

Electrical design

PNP

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Switching function flow monitoring

output switches when flow is present: ON for output function = normally open / OFF for output function = normally closed

Short-circuit protection

yes

Overload protection

yes

Software / programming

Adjustment of the switch point

pushbutton

Operating conditions

Ambient temperature [°C]

-20...60

Protection

IP 67; (with sensor attached)

Mechanical data

Weight [g]

225.5

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X; brass

Displays / operating elements

Display

function	LED, bar graph
switching status	LED, orange flash in case of wire break

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

LDL100

15,854,067 ₫

Application

Media

conductive liquids

Note on media

water

milk

CIP liquids

Medium temperature [°C]

-25...100; (< 1 h: 150)

Tank pressure [bar]

-1...16

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 60

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal; IO-Link

Output function

analogue output; scalable; selectable conductivity / temperature

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

500

Measuring/setting range

Conductivity measurement

Measuring range [µS/cm]

100...15000

Temperature measurement

Measuring range [°C]

-25...150

Temperature measurement

Response time [s]

< 9; (T09)

Operating conditions

Ambient temperature [°C]

-40...60

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (IP 68: 7 days / 3 m water depth / 0.3 bar)

Mechanical data

Weight [g]

270.5

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK; stainless steel (1.4404 / 316L)

Process connection

G 1/2 external thread

Electrical connection

Connection

Connector: 1 x M12 (EN 61067-2-101); Contacts: gold-plated

Mua hàng

LDL200

31,708,133 ₫

Application

Media

conductive liquids

Note on media

water

milk

CIP liquids

Medium temperature [°C]

-25...100; (< 1 h: 150)

Tank pressure [bar]

-1...16

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 70

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal; IO-Link

Output function

analogue output; scalable; selectable conductivity / temperature

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

500

Measuring/setting range

Conductivity measurement

Measuring range [µS/cm]

100...1000000

Temperature measurement

Measuring range [°C]

-25...150

Conductivity measurement

Accuracy (in the measuring range)

2 % MW ± 25 µS/cm

Resolution [µS/cm]

Drift [%/K]

0,1 %/K MW ± 25 µS/cm

Repeatability

1 % MW ± 25 µS/cm

Long-term stability

0,5 % MW ± 25 µS/cm

Operating conditions

Ambient temperature [°C]

-40...60

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (IP 68: 7 days / 3 m water depth / 0.3 bar)

Mechanical data

Weight [g]

580.5

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK

Process connection

G 1 external thread Aseptoflex Vario

Electrical connection

Connection

Connector: 1 x M12 (EN 61067-2-101); Contacts: gold-plated

Mua hàng

SM0510

29,491,189 ₫

Application

totaliser function; empty pipe detection; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

Electrical data

Operating voltage [V]

18...32 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 150

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

250; (per output)

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Frequency of the output [Hz]

0.1...10000

Measuring/setting range

Measuring range

5...900 l/min

0.3...54 m³/h

Display range

-920...920 l/min

-55.2...55.2 m³/h

Resolution

1 l/min

0.05 m³/h

Set point SP

10...900 l/min

0.55...54 m³/h

Reset point rP

5...896 l/min

0.3...53.75 m³/h

Analogue start point ASP

0...720 l/min

0...43.2 m³/h

Analogue end point AEP

180...900 l/min

10.8...54 m³/h

Low flow cut-off LFC

< 15 l/min

< 0.9 m³/h

In steps of

1 l/min

0.05 m³/h

Measuring dynamics

1:180

Volumetric flow quantity monitoring

Pulse value

0.1 l...600 x 10³ m³

In steps of

0.1 l

Pulse length [s]

0,003...2

Temperature monitoring

Measuring range [°C]

-20...80

Display range [°C]

-40...100

Resolution [°C]

0.2

Set point SP [°C]

-19.2...80

Reset point rP [°C]

-19.6...79.6

Analogue start point [°C]

-20...60

Analogue end point [°C]

0...80

In steps of [°C]

0.2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/frequency/pulse output; start-up delay; display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 65; IP 67

Mechanical data

Weight [g]

3212

Materials

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PC; FKM; PBT-GF20; TPE-U

Materials (wetted parts)

stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; Hastelloy C-4 (2.4610); Centellen; FKM

Process connection

threaded connection G 2 DN50 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

SM4000

16,226,231 ₫

Application

totaliser function; for industrial applications

Installation

connection to pipe by means of an adapter

Media

conductive liquids; water; hydrous media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

0...60

Pressure rating [bar]

MAWP (for applications according to CRN) [bar]

7.3

Electrical data

Operating voltage [V]

18...30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 80

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Permanent current rating of switching output DC [mA]

200

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

500

Analogue voltage output [V]

0...10; (scalable)

Min. load resistance [Ω]

2000

Pulse output

flow rate meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range [ml/min]

5...3000

Display range [ml/min]

-1999...3600

Resolution [ml/min]

Set point SP [ml/min]

20...3000

Reset point rP [ml/min]

5...2984

Analogue start point ASP [ml/min]

0...2400

Analogue end point AEP [ml/min]

600...3000

Low flow cut-off LFC [ml/min]

< 60

Volumetric flow quantity monitoring

Pulse value

0.001...3000 l

Pulse length [s]

0,008...2

Software / programming

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit

Operating conditions

Ambient temperature [°C]

-10...60

Storage temperature [°C]

-25...80

Protection

IP 67

Mechanical data

Weight [g]

536.5

Materials

stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

threaded connection G 1/4 DN6 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (ml/min, l/h, l, m³, °C, 10³)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng
