Cảm biến áp suất

Cảm biến áp suất (30 Sản phẩm)

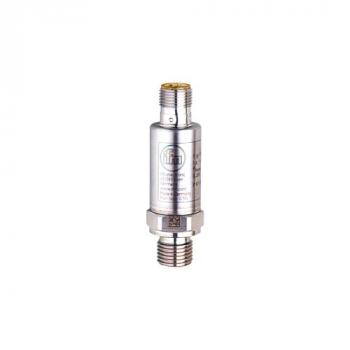

PT5500

3,432,586 ₫

Application

for mobile applications

Media

liquids and gases

Medium temperature [°C]

-40...125

Pressure rating [bar]

1000

Note on pressure rating

static

Min. bursting pressure [bar]

1700

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]

8...32 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

(Ub - 8 V) / 20 mA

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range [bar]

0...400

Response times

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-40...100

Storage temperature [°C]

-40...100

Protection

IP 67; IP 69K

Mechanical data

Weight [g]

Materials

1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI

Materials (wetted parts)

1.4542 (17-4 PH / 630)

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Electrical connection

Connection

Connector: 1 x M12; Maximum cable length: 30 m

Mua hàng

PT5400

3,150,983 ₫

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-40...90

Pressure rating [bar]

1000

Note on pressure rating

static

Min. bursting pressure [bar]

1700

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]

8.5...36 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

0.1

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range [bar]

0...400

Response times

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-40...90

Storage temperature [°C]

-40...100

Protection

IP 67; IP 69K

Mechanical data

Weight [g]

Materials

1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI

Materials (wetted parts)

1.4542 (17-4 PH / 630)

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

PT5401

3,062,056 ₫

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-40...90

Pressure rating [bar]

625

Note on pressure rating

static

Min. bursting pressure [bar]

1200

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]

8.5...36 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range [bar]

0...250

Response times

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-40...90

Storage temperature [°C]

-40...100

Protection

IP 67; IP 69K

Mechanical data

Weight [g]

Materials

1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI

Materials (wetted parts)

1.4542 (17-4 PH / 630)

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

HOT

PT5404

3,062,056 ₫

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-40...90

Pressure rating [bar]

Note on pressure rating

static

Min. bursting pressure [bar]

300

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]

8.5...36 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20

Max. load [Ω]

720; (Ub = 24 V; (Ub - 8,5 V) / 21,5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range [bar]

0...10

Response times

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-40...90

Storage temperature [°C]

-40...100

Protection

IP 67; IP 69K

Mechanical data

Weight [g]

Materials

1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI

Materials (wetted parts)

1.4542 (17-4 PH / 630)

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Electrical connection

Connection

Connector: 1 x M12

Mua hàng

PM1717

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

15000 mbar

215 psi

1500 kPa

Min. bursting pressure

40000 mbar

580 psi

4000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.1...1.6 bar

-100...1600 mbar

-1.45...23.21 psi

-10...160 kPa

Analogue start point

-100...1280 mbar

-1.45...18.56 psi

-10...128 kPa

Analogue end point

220...1600 mbar

3.19...23.21 psi

22...160 kPa

In steps of

1 mbar

0.01 psi

0.1 kPa

Factory setting

ASP = 0.0 mbar

AEP = 1600 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

280.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1714

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

75 bar

1085 psi

7.5 MPa

Min. bursting pressure

250 bar

3625 psi

25 MPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...16 bar

-14.6...232 psi

-0.1...1.6 MPa

Analogue start point

-1...12.8 bar

-14.6...185.6 psi

-0.1...1.28 MPa

Analogue end point

2.2...16 bar

32...232 psi

0.22...1.6 MPa

In steps of

0.01 bar

0.2 psi

0.001 MPa

Factory setting

ASP = 0.0 bar

AEP = 16.0 bar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

bar; psi; MPa

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1706

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

20000 mbar

290 psi

2000 kPa

Min. bursting pressure

50000 mbar

725 psi

5000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.125...2.5 bar

-125...2500 mbar

-1.82...36.26 psi

-12.5...250 kPa

Analogue start point

-125...2000 mbar

-1.82...29 psi

-12.5...200 kPa

Analogue end point

375...2500 mbar

5.44...36.26 psi

-37.5...250 kPa

In steps of

1 mbar

0.02 psi

0.1 kPa

Factory setting

ASP = 0.0 mbar

AEP = 2500 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1705

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

30 bar

435 psi

3000 kPa

Min. bursting pressure

100 bar

1450 psi

10000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...4 bar

-14.5...58 psi

-100...400 kPa

Analogue start point

-1...3.2 bar

-14.5...46.4 psi

-100...320 kPa

Analogue end point

-0.2...4 bar

-2.9...58 psi

-20...400 kPa

In steps of

0.02 bar

0.05 psi

0.2 kPa

Factory setting

ASP = 0.0 bar

AEP = 4.0 bar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

282.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

bar; psi; kPa

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

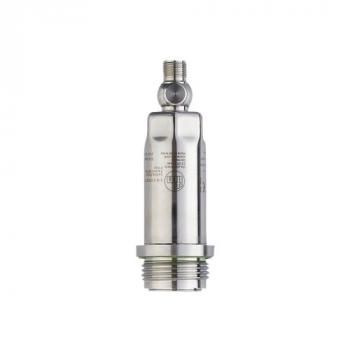

PM1715

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

30 bar

435 psi

3000 kPa

Min. bursting pressure

100 bar

1450 psi

10000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...6 bar

-14.5...87 psi

-100...600 kPa

Analogue start point

-1...4.8 bar

-14.5...69.6 psi

-100...480 kPa

Analogue end point

0.2...6 bar

2.9...87 psi

20...600 kPa

In steps of

0.02 bar

0.05 psi

0.2 kPa

Factory setting

ASP = 0.0 bar

AEP = 6.0 bar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

bar; psi; kPa

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

PM1703

11,791,733 ₫

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

100 bar

1450 psi

10 MPa

Min. bursting pressure

350 bar

5075 psi

35 MPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...25 bar

-14.6...362.6 psi

-0.1...2.5 MPa

Analogue start point

-1...20 bar

-14.6...290 psi

-0.1...2 MPa

Analogue end point

4...25 bar

58...362.6 psi

0.4...2.5 MPa

In steps of

0.01 bar

0.2 psi

0.001 MPa

Factory setting

ASP = 0.0 bar

AEP = 25.0 bar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

bar; psi; MPa

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1709

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-1...1 bar

-1000...1000 mbar

-14.5...14.5 psi

-100...100 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

10000 mbar

145 psi

1000 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-1...1 bar

-1000...1000 mbar

-14.5...14.5 psi

-100...100 kPa

Analogue start point

-1000...600 mbar

-14.5...8.7 psi

-100...60 kPa

Analogue end point

-600...1000 mbar

-8.7...14.5 psi

-60...100 kPa

In steps of

1 mbar

0.01 psi

0.1 kPa

Factory setting

ASP = -1000 mbar

AEP = 1000 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

281

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

PM1789

12,144,477 ₫

Product characteristics

Output signal

analogue signal

Measuring range

-0.005...0.1 bar

-5...100 mbar

-0.073...1.45 psi

-0.5...10 kPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Measuring element

ceramic-capacitive pressure measuring cell

Application

hygienic systems

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (150 max. 1h)

Pressure rating

4000 mbar

58 psi

400 kPa

Min. bursting pressure

30000 mbar

435 psi

3000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]

18...30 DC

Min. insulation resistance [MΩ]

100; (500 V DC)

Protection class

III

Reverse polarity protection

yes

Integrated watchdog

yes

2-wire

Current consumption [mA]

3.5...21.5

Power-on delay time [s]

3-wire

Current consumption [mA]

< 45

Power-on delay time [s]

0.5

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs

Output signal

analogue signal

Number of analogue outputs

Analogue current output [mA]

4...20; (scalable)

Max. load [Ω]

700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)

Short-circuit proof

yes

Overload protection

yes

Measuring/setting range

Measuring range

-0.005...0.1 bar

-5...100 mbar

-0.073...1.45 psi

-0.5...10 kPa

Analogue start point

-5...80 mbar

-0.073...1.16 psi

-0.5...8 kPa

Analogue end point

15...100 mbar

0.218...1.45 psi

1.5...10 kPa

In steps of

0.05 mbar

0.001 psi

0.005 kPa

Factory setting

ASP = 0.0 mbar

AEP = 100 mbar

Response times

Damping for the analogue output dAA [s]

0...4

2-wire

Step response time analogue output [ms]

3-wire

Step response time analogue output [ms]

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-40...100

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

279.5

Materials

stainless steel (1.4404 / 316L); PBT

Materials (wetted parts)

ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4

Min. pressure cycles

100 million

Tightening torque [Nm]

35; (recommended tightening torque depends on lubrication, seal and pressure rating)

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display unit

mbar; psi; kPa; mmWS; inH2O

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng
