Tìm kiếm (249 Sản phẩm)

Sắp xếp
HOT
PPC-BT15A

PPC-BT15A

17,613,251 ₫

PROCESSORCPUOnboard Intel Celeron Baytrail-D/I/M Processor
RAMOnboard 2GB/4GB DDR3 1066/1333MHz,1 RAM slot to expand 8GB DDR3 RAM max.
STORAGEOnboard SSD16/32/64/128G  (optional)
SATA and MSATA,HDD or SSD (optional)
NETWORK2*RTL8111E RJ45 1000M LAN
I/O INTERFACE5*RS-232, 1*RS422/485,2*DB9 RS-232 3* 3pin RS-232
2*USB2.0,2*USB3
1*14BIT GPIO Connector
1*LINE OUT 1*MIC
2*Wifi Antenna port
1*POWER ON/OFF switch
1*VGA Maximum resolution 2048x1536 1*HDMI Maximum 3200*2000@60HZ
EXPANSION BUS1* full size Mini PCIE slot
WATCHDOG0-255 second, Sample code optional
Physical characteristicsSize(mm)378.6*300.6*59.3
Weight(kgs)6kg
O/S SUPPORTOperation SystemSupport Windows 7/Windows8/Windows8.1/Windows10/Linux/Android
POWER SUPPLYINPUTSingle input DC12V 5A   +/-5%
Power Consumption20W
Battery ModuleModule for management of lithium-ion batteries + battery indicator (optional)
LED DISPLAYDISPLAY TYPE15inch TFT LED
Maximun Resolutions1024*768
View80 (LEFT), 80 (RIGHT), 70 (UP), 70 (DOWN)
Lumens (cd/m²)350cd/m²
Contrast400:1
Backlight Life30,000 hrs (Min)
TOUCH PANELTYPE5 Wires Resistive touch panel
Light Transmittance≥85%
Controller InterfaceUSB port
Durability(Touch Times)>3500 million times
ENVIRONMENTWorking Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +85℃
Relative humidity0% ~ 90%Relative humidity, none condensation
EMCCE, FCC Class B, BSMI
CERTIFICATECB, CCC, BSMI, UL
Front panel protectionIP65

Mua hàng
HOT
PPC-HU12A

PPC-HU12A

25,071,345 ₫







Processor

CPU

Intel® Core™5th Broadwell-U Soc  I7-5500U  processor

Memory

Integrated 4GB DDR3 1066/1333/1600MHz,1 slot can be added, up to be 12GB

storage

SATA 128G and MSATA,HDD and SSD(optional)

Internet (LAN)

2*Intel I211AT Gigabit Lan Port

I/O Port

2*RS422/485/232 is DB9 Interface 4 three-wire RS-232 (Phoenix terminal interface),

2*USB2.0,2*USB3.0,

1*14BIT GPIO Port,

1*LINE OUT 1*MIC,

2*Wifi antenna  Port,(Option)

1*power switch button,

1*HDMI Max resolution support 3200*2000@60HZ

Expansion bus

1*full size Mini-PCIE socket

Watch -dog timer

0-255 second, Sample code optional

Physical characteristics

Size

316.6*253.6*62.5mm

Weight

2.75Kg

OS Support

Operate System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux

Power type support

Input Voltage

DC12V5A power supply (optional 9-36V wide voltage supply)

Consumption

35W





LCD display

Display type

12inch  TFT LED

Max resolution

1024*768

View

80 (left), 80 (right), 70 (UP), 70 (Down)

Lumens (cd/m²))

350cd/m²

Contrast

400:1

Backlight Life

30,000 hrs (Min.)



TOUCH PANEL

TYPE

4 Wires Resistive touch panel

Light Transmittance

≥85%

Controller Interface

USB Port

Durability(Touch Times)

>3500 million times





ENVIRONMENT

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65

Mua hàng
HOT

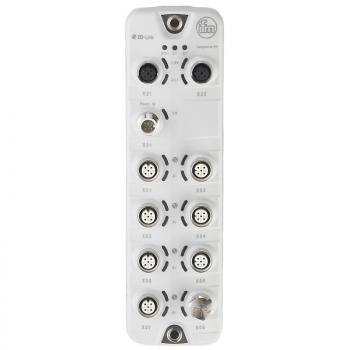

AL1103

AL1103

12,395,203 ₫

Application
Applicationhygienic systems; I/O modules for field applications
Daisy-chain functionfieldbus interface
Electrical data
Operating voltage [V]20...30 DC; (US; to SELV/PELV)
Current consumption [mA]300...3900; (US)
Protection classIII
Sensor supply US
Max. current load total [A]3.6
Inputs / outputs
Total number of inputs and outputs16; (configurable)
Number of inputs and outputsNumber of digital inputs: 16; Number of digital outputs: 8
Inputs
Number of digital inputs16; (IO-Link Port Class A: 8 x 2)
Switching level high [V]11...30
Switching level low [V]0...5
Digital inputs protected against short circuitsyes
Outputs
Number of digital outputs8; (IO-Link Port Class A: 8 x 1)
Max. current load per output [mA]300
Short-circuit proofyes
Interfaces
Communication interfaceEthernet; IO-Link
Ethernet
Transmission standard10Base-T; 100Base-TX
Transmission rate10; 100
ProtocolPROFINET
Factory settings
IP address: 0.0.0.0
subnet mask: 0.0.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
IO-Link Master
Transmission typeCOM 1 / COM 2 / COM 3
IO-Link revision1.1
Number of ports class A8
Operating conditions
Ambient temperature [°C]-25...60
Storage temperature [°C]-25...85
Max. relative air humidity [%]90
ProtectionIP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)
Degree of soiling2
Mechanical data
Weight [g]410
Materialshousing: PA grey; socket: stainless steel (1.4404 / 316L)
Accessories
Accessories (supplied)
Protective cap: 1 x M12, stainless steel, E12542
Electrical connection - Ethernet
IN / OUT X21, X22Connector: M12
Electrical connection - Process connection
IO-Link Port Class A X01...X04Connector: M12
Electrical connection - voltage supply
X31Connector: M12
Mua hàng
HOT

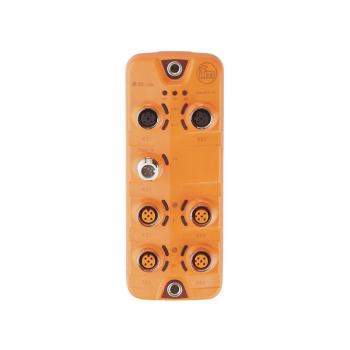

AL1100

AL1100

9,211,212 ₫

Application
ApplicationI/O modules for field applications
Daisy-chain functionfieldbus interface
Electrical data
Operating voltage [V]20...30 DC; (US; to SELV/PELV)
Current consumption [mA]300...3900; (US)
Protection classIII
Sensor supply US
Max. current load total [A]3.6
Inputs / outputs
Total number of inputs and outputs8; (configurable)
Number of inputs and outputsNumber of digital inputs: 8; Number of digital outputs: 4
Inputs
Number of digital inputs8; (IO-Link Port Class A: 4 x 2)
Switching level high [V]11...30
Switching level low [V]0...5
Digital inputs protected against short circuitsyes
Outputs
Number of digital outputs4; (IO-Link Port Class A: 4 x 1)
Max. current load per output [mA]300
Short-circuit proofyes
Interfaces
Communication interfaceEthernet; IO-Link
Ethernet
Transmission standard10Base-T; 100Base-TX
Transmission rate10; 100
ProtocolPROFINET
Factory settings
IP address: 0.0.0.0
subnet mask: 0.0.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
IO-Link Master
Transmission typeCOM 1 / COM 2 / COM 3
IO-Link revision1.1
Number of ports class A4
Operating conditions
Ambient temperature [°C]-25...60
Storage temperature [°C]-25...85
Max. relative air humidity [%]90
ProtectionIP 65; IP 66; IP 67
Degree of soiling2
MTTF [years]90
Mechanical data
Weight [g]293.5
Materialshousing: PA; socket: brass nickel-plated
Electrical connection - Ethernet
IN / OUT X21, X22Connector: 2 x M12
Electrical connection - Process connection
IO-Link Port Class A X01...X04Connector: 4 x M12
Electrical connection - voltage supply
X31Connector: 1 x M12
Mua hàng
HOT
Modbus 4DI/4DO/RTU SIM/LAN (MQTT)

Modbus 4DI/4DO/RTU SIM/LAN (MQTT)

2,500,000 ₫

Mua hàng
HOT

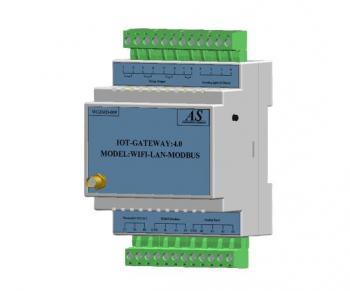

Modbus 4DI/4DO SIM/LAN (MQTT)

Modbus 4DI/4DO SIM/LAN (MQTT)

2,000,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO/4AI SIM/LAN (MQTT)

Modbus 4DI/4DO/4AI SIM/LAN (MQTT)

2,500,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO/RTU LAN/Wifi (MQTT)

Modbus 4DI/4DO/RTU LAN/Wifi (MQTT)

1,800,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO LAN/Wifi (MQTT)

Modbus 4DI/4DO LAN/Wifi (MQTT)

1,600,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO/4AI LAN/Wifi (MQTT)

Modbus 4DI/4DO/4AI LAN/Wifi (MQTT)

3,000,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO/RTU Wifi (MQTT)

Modbus 4DI/4DO/RTU Wifi (MQTT)

1,500,000 ₫

Mua hàng
HOT
Modbus 4DI/4DO Wifi (MQTT)

Modbus 4DI/4DO Wifi (MQTT)

1,500,000 ₫

Mua hàng
