Cảm biến mức

LMC500

3,912,792 ₫

Application

Media

water; hydrous media; oils; oil-based media; coolants; powder

Medium temperature [°C]

-25...100

Probe length [mm]

25

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

40

Oil

Medium temperature [°C]

-25...100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

2

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

2

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

yes

Type of short-circuit protection

thermal, pulsed

Overload protection

yes

Measuring/setting range

Factory setting

water; hydrous media

Response times

Response time [s]

< 0.5

Operating conditions

Ambient temperature [°C]

-25...85

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Mechanical data

Weight [g]

116

Dimensions [mm]

Ø 18.11 / L = 76.2

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

1/2" NPT

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMC502

6,343,466 ₫

Application

Media

Liquids; viscous media; powder

Recommended media

water; hydrous media; oils; oil-based media; powder

Cannot be used for

See the operating instructions, chapter "Function and features".

Probe length [mm]

40

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

40

Oil

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Water

Medium temperature [°C]

-20...100

Medium temperature short time [°C]

-20...150; (1 h)

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

2

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

2

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

100

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Operating conditions

Ambient temperature [°C]

-20...85

Note on ambient temperature

Medium temperature: < 100 °C

-20...60 °C

Medium temperature: < 150 °C

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K

Mechanical data

Weight [g]

252

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

PEEK; FKM

Process connection

1/2" NPT

Surface characteristics Ra/Rz of the wetted parts

< 0.8

Displays / operating elements

Display

switching status	2 LED, yellow
operating status	2 LED, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMC400

3,912,792 ₫

Application

Media

water; hydrous media; oils; oil-based media; coolants; powder

Cannot be used for

See the operating instructions, chapter "Function and features".

Medium temperature [°C]

-25...100

Probe length [mm]

9.6

Tank pressure [bar]

-1...40

MAWP (for applications according to CRN) [bar]

40

Oil

Medium temperature [°C]

-25...100

Electrical data

Operating voltage [V]

18...30 DC

Current consumption [mA]

< 35

Protection class

III

Reverse polarity protection

yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

2

Output signal

switching signal; IO-Link

Electrical design

PNP/NPN

Number of digital outputs

2

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

50; (100 (...60 °C))

Short-circuit protection

yes

Type of short-circuit protection

thermal, pulsed

Overload protection

yes

Measuring/setting range

Factory setting

water; hydrous media

Response times

Response time [s]

< 0.5

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for installation in probe observe the temperature in the pipe, see installation instructions

Storage temperature [°C]

-40...85

Protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Mechanical data

Weight [g]

127.5

Dimensions [mm]

Ø 18.1 / L = 76.2

Materials

stainless steel (1.4404 / 316L); PEEK; PEI; FKM

Materials (wetted parts)

stainless steel (1.4404 / 316L); PEEK; FKM

Process connection

G 1/2 external thread

Displays / operating elements

Display

switching status	LEDs, yellow
operating status	LEDs, green

Electrical connection

Connection

Connector: 1 x M12; Contacts: gold-plated

Mua hàng

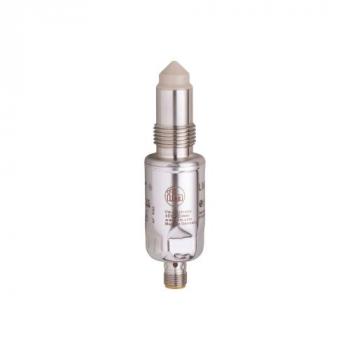

LMT121

5,386,017 ₫

Number of inputs and outputs			Number of digital outputs: 2
Factory setting			Media with low water content
Process connection			G 1/2 external thread
Application			Media with low water content
Media			Liquids; viscous media; powder
Probe length [mm]			11
Tank pressure [bar]			-1...40; (MAWP (for applications according to CRN): 40 bar / 4 MPa)
Oil, Water	Medium temperature [°C]		-40...100
	Medium temperature short time [°C]		-40...150; (1 h)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Number of digital outputs			2
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			100
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Ambient temperature [°C]			-40...85
Storage temperature [°C]			-40...85
Protection			IP 68; IP 69K
Display		Switching status	LEDs, yellow
		Operating status	LEDs, green
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

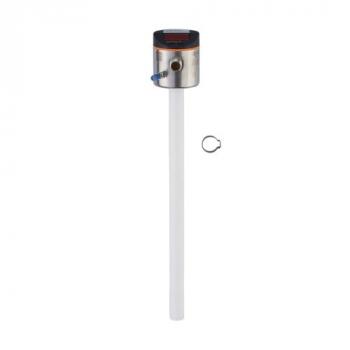

LT8022

12,243,924 ₫

Notes For 8-pole sockets the core colours are not standardised.; Please note the wiring of the sensor and the sockets (see data sheet)

Number of inputs and outputs			Number of digital outputs: 4
Factory setting			2 switching outputs level (OUT1, OUT2); 2 switching outputs temperature (OUT3, OUT4); mineral oils
Probe length L [mm]			264
Active range A [mm]			195
Inactive range I1 / I2 [mm]			53 / 16
Media			Hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the medium			> 2
Cannot be used for			Extremely conductive media; adhering media; granulates; bulk material; acids; alkali
Tank pressure [bar]			0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)
Coolants	Medium temperature [°C]		0...35; (with climatic tube E43100)
Oil	Medium temperature [°C]		0...70
	Medium temperature short time [°C]		0...90; (< 1 h)
Water	Medium temperature [°C]		0...35; (with climatic tube E43100 35...65 °C)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Power-on delay time [s]			< 3
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Number of digital outputs			4
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			200
Short-circuit protection			Yes
Type of short-circuit protection			Thermal, pulsed
Overload protection			Yes
Parameter setting options			Hysteresis / window; normally open / normally closed; SP/rP position; OP position; adjustment OP; medium selection; offset setting; Display unit; process value assignment
Ambient temperature [°C]			0...60
Storage temperature [°C]			-25...80
Protection			IP 67
Weight [g]			362.5
Dimensions [mm]			Ø 16
Materials			Stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; NBR; PBT; PC; PP; PA; TPV
Materials (wetted parts)			PP
Display		Display unit	4 x LED, green (cm, inch, °C, °F)
		Switching status	4 x LED, yellow (OUT4...OUT1)
		Measured values	Alphanumeric display, 4-digit
		Parameter setting	Alphanumeric display, 4-digit
Connection			Connector: 1 x M12

Mua hàng

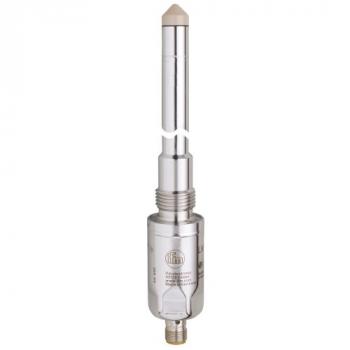

LMT105

6,693,246 ₫

Number of inputs and outputs			Number of digital outputs: 2
Process connection			G 1/2 external thread
Media			Liquids; viscous media; powder
Recommended media			Water; hydrous media; oils; oil-based media; powder
Probe length [mm]			253
Tank pressure [bar]			-1...40
Oil, Water	Medium temperature [°C]		-20...100
	Medium temperature short time [°C]		-20...150; (1 h)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			100
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Ambient temperature [°C]			-20...85
Storage temperature [°C]			-40...85
Protection			IP 68; IP 69K
Display		Switching status	LEDs, yellow
		Operating status	LEDs, green
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

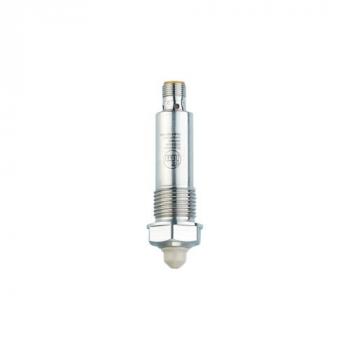

LMC410

3,912,792 ₫

Number of inputs and outputs		Number of digital outputs: 2
Media		Oils; oil-based media water; hydrous media; oils; oil-based media; coolants; powder
Process connection		G 1/2 external thread
Output signal		Switching signal; IO-Link
Electrical design		PNP/NPN
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		50; (100 (...60 °C))
Short-circuit protection		Yes
Type of short-circuit protection		Thermal, pulsed
Overload protection		Yes
Medium temperature [°C]		-25...100
Probe length [mm]		9.6
Tank pressure [bar]		-1...40
Medium temperature (Oil) [°C]		-25...100
Current consumption [mA]		< 35
Protection class		III
Reverse polarity protection		Yes
Response time [s]		< 0.5
Ambient temperature [°C]		-25...85
Storage temperature [°C]		-40...85
Protection		IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)
Weight [g]		127.5
Dimensions [mm]		Ø 18.1 / L = 76.2
Materials		Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)		Stainless steel (1.4404 / 316L); PEEK; FKM
Display	Switching status	LEDs, yellow
	Operating status	LEDs, green
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMT104

6,571,712 ₫

Number of inputs and outputs			Number of digital outputs: 2
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			100
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Media			Hydrous media; liquids; viscous media; powder
Recommended media			Water; hydrous media; oils; oil-based media; powder
Probe length [mm]			153
Tank pressure [bar]			-1...40
Oil, Water:	Medium temperature [°C]		-20...100
	Medium temperature short time [°C]		-20...150; (1 h)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Ambient temperature [°C]			-20...85
Storage temperature [°C]			-40...85
Protection			IP 68; IP 69K
Weight [g]			321.5
Materials			Stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM
Materials (wetted parts)			Stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; FKM
Process connection			G 1/2 external thread
Display		Switching status	LEDs, yellow
		Operating status	LEDs, green
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

LMT110

5,386,017 ₫

Number of inputs and outputs			Number of digital outputs: 2
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			100
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Media			Oils; oil-based media; liquids; viscous media; powder
Probe length [mm]			11
Tank pressure [bar]			-1...40
Oil, Water:		Medium temperature [°C]	-40...100
		Medium temperature short time [°C]	-40...150; (1 h)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Ambient temperature [°C]			-40...85
Storage temperature [°C]			-40...85
Protection			IP 68; IP 69K
Weight [g]			210
Materials			Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)			PEEK
Process connection			G 1/2 external thread
Display	Switching status		LEDs, yellow
	Operating status		LEDs, green
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

LMT102

5,652,799 ₫

Number of inputs and outputs			Number of digital outputs: 2
Output signal			Switching signal; IO-Link
Electrical design			PNP/NPN
Output function			Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]			2.5
Permanent current rating of switching output DC [mA]			100
Short-circuit protection			Yes
Type of short-circuit protection			Pulsed
Overload protection			Yes
Media			Hydrous media; liquids; viscous media; powder
Recommended media			Water; hydrous media; oils; oil-based media; powder
Probe length [mm]			38
Tank pressure [bar]			-1...40
Oil, Water:		Medium temperature [°C]	-20...100
		Medium temperature short time [°C]	-20...150; (1 h)
Operating voltage [V]			18...30 DC
Current consumption [mA]			< 50
Protection class			III
Reverse polarity protection			Yes
Ambient temperature [°C]			-20...85
Storage temperature [°C]			-40...85
Protection			IP 68; IP 69K
Weight [g]			240
Dimensions [mm]			Ø 30 / L = 125
Materials			Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)			PEEK
Process connection			G 1/2 external thread
Display	Switching status		LEDs, yellow
	Operating status		LEDs, green
Connection			Connector: 1 x M12; Contacts: gold-plated

Mua hàng

LMC110

3,912,792 ₫

Number of inputs and outputs		Number of digital outputs: 2
Output signal		Switching signal; IO-Link
Electrical design		PNP/NPN
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		50; (100 (...60 °C))
Short-circuit protection		Yes
Type of short-circuit protection		Thermal, pulsed
Overload protection		Yes
Media		Water; hydrous media; oils; oil-based media; coolants; powder
Medium temperature [°C]		-25...100
Probe length [mm]		28
Tank pressure [bar]		-1...40
Operating voltage [V]		18...30 DC
Current consumption [mA]		< 35
Protection class		III
Reverse polarity protection		Yes
Response time [s]		< 0.5
Ambient temperature [°C]		-25...85
Storage temperature [°C]		-40...85
Protection		IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)
Weight [g]		127.5
Dimensions [mm]		Ø 18.1 / L = 76.2
Materials		Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)		Stainless steel (1.4404 / 316L); PEEK; FKM
Process connection		G 1/2 external thread
Display	Switching status	LEDs, yellow
	Operating status	LEDs, green
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

HOT

LMC100

3,912,792 ₫

Number of inputs and outputs		Number of digital outputs: 2
Output signal		Switching signal; IO-Link
Electrical design		PNP/NPN
Output function		Normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]		2.5
Permanent current rating of switching output DC [mA]		50; (100 (...60 °C))
Short-circuit protection		Yes
Type of short-circuit protection		Thermal, pulsed
Overload protection		Yes
Media		Water; hydrous media; oils; oil-based media; coolants; powder
Medium temperature [°C]		-25...100
Probe length [mm]		28
Tank pressure [bar]		-1...40
Operating voltage [V]		18...30 DC
Current consumption [mA]		< 35
Protection class		III
Reverse polarity protection		Yes
Response time [s]		< 0.5
Ambient temperature [°C]		-25...85
Storage temperature [°C]		-40...85
Protection		IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)
Weight [g]		149
Dimensions [mm]		Ø 18.1 / L = 76.2
Materials		Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)		Stainless steel (1.4404 / 316L); PEEK; FKM
Process connection		G 1/2 external thread
Display	Switching status	LEDs, yellow
	Operating status	LEDs, green
Connection		Connector: 1 x M12; Contacts: gold-plated

Mua hàng

Cảm biến mức

Cảm biến mức (25 Sản phẩm)
